Cylinder Block Assembly: Locations




Engine Block Assembly Component Location Index

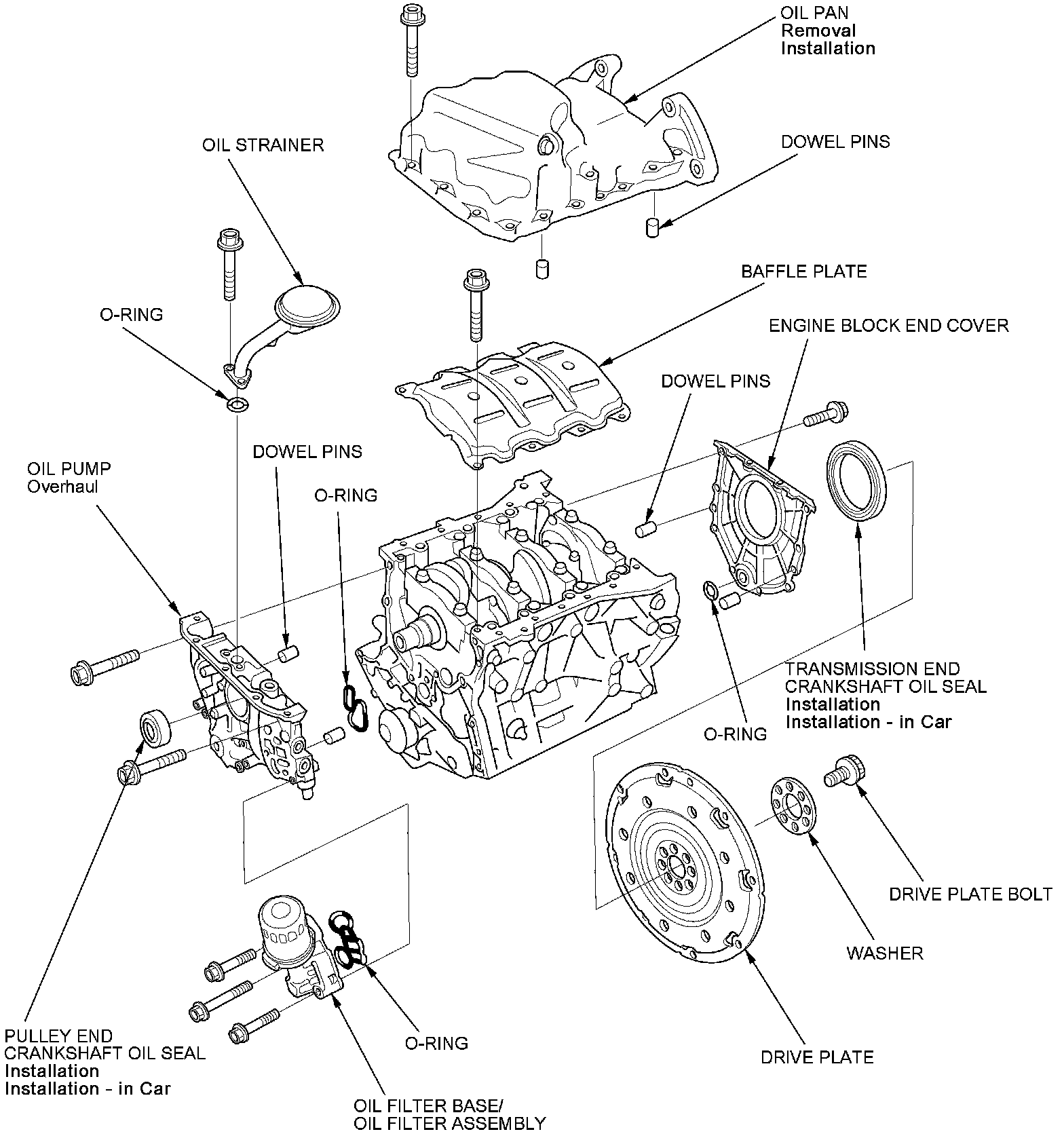

J35A6 engine

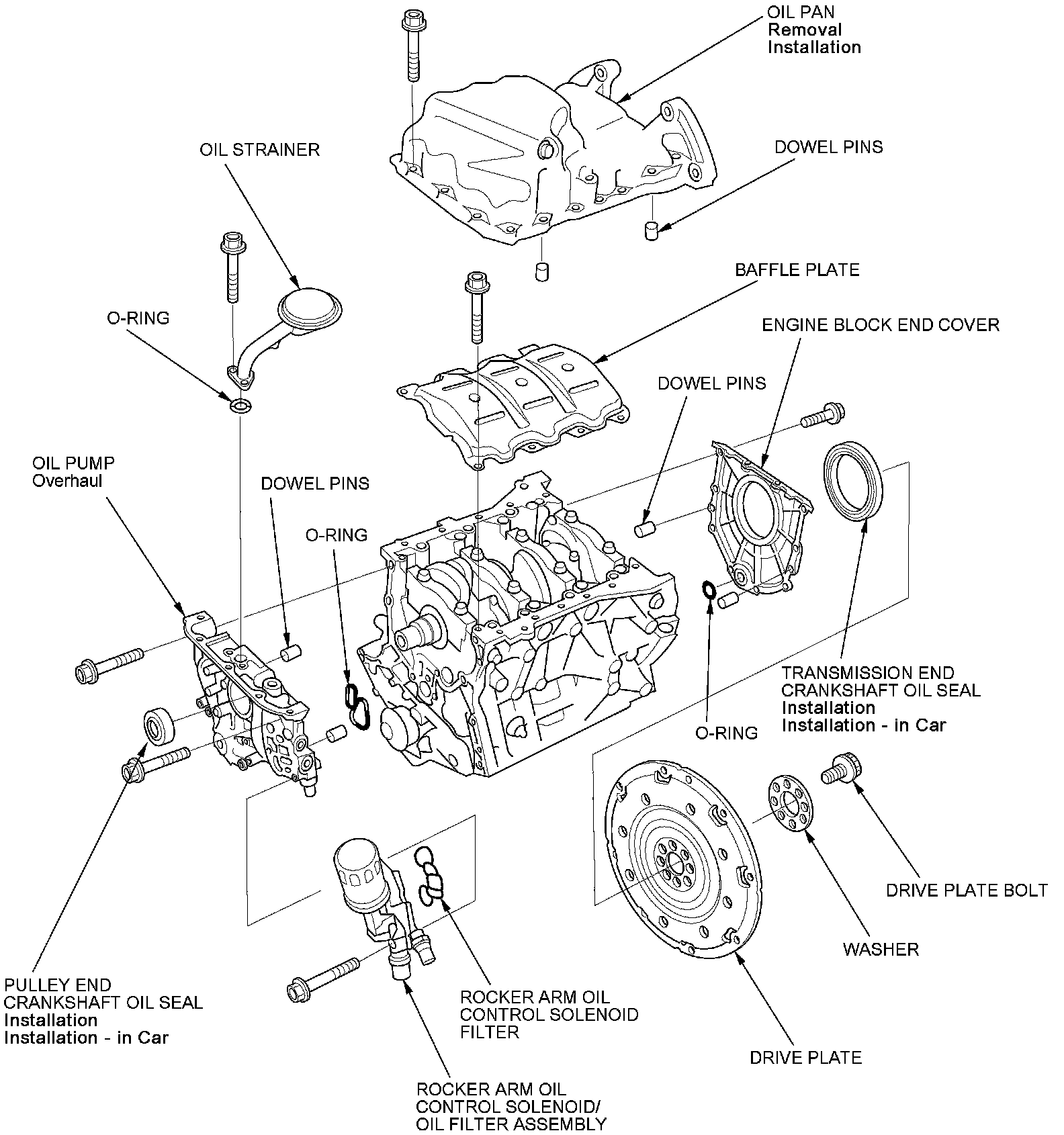

'07 model J35A7 engine

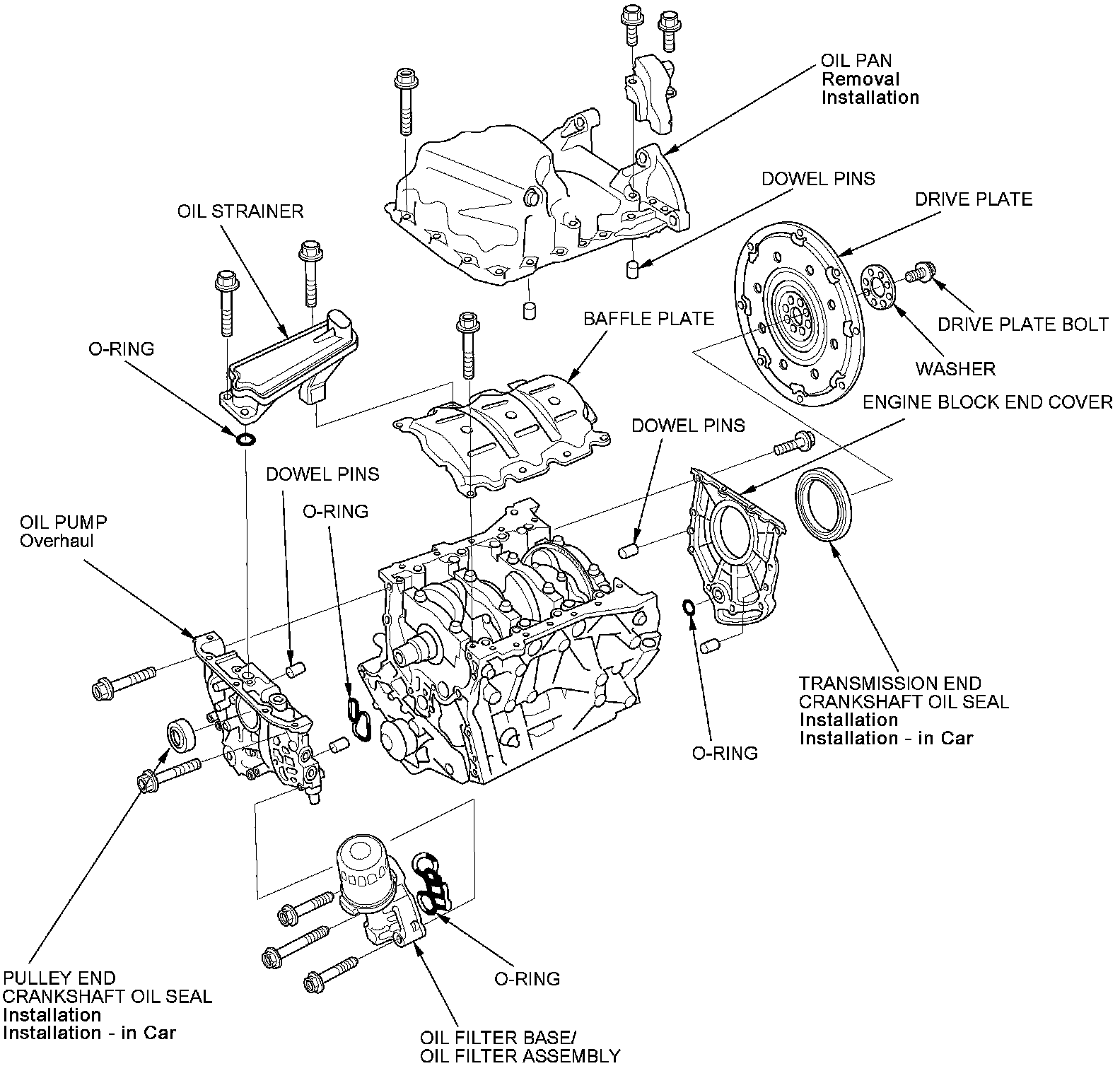

'08-10 models J35A7 engine

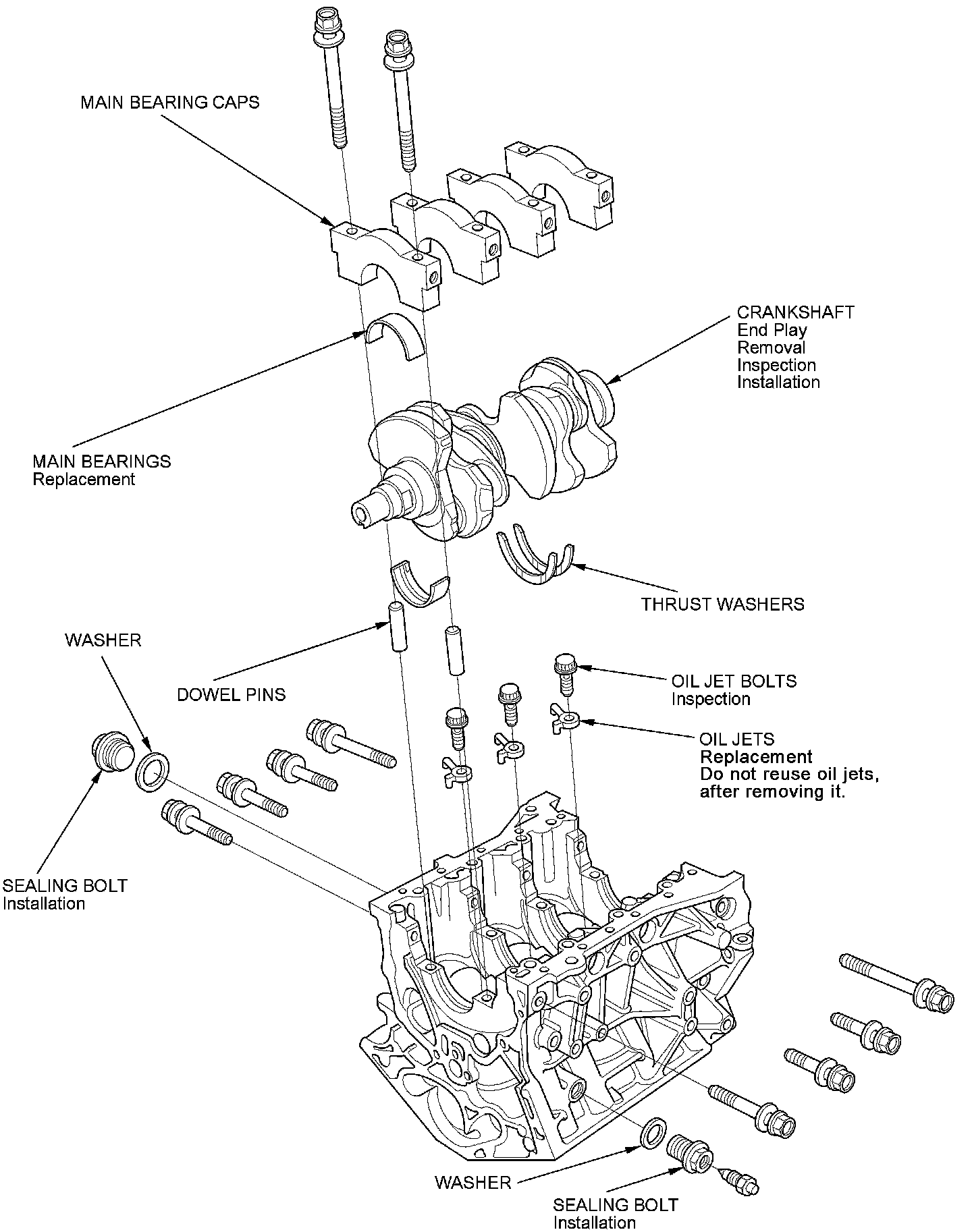

J35A6 engine

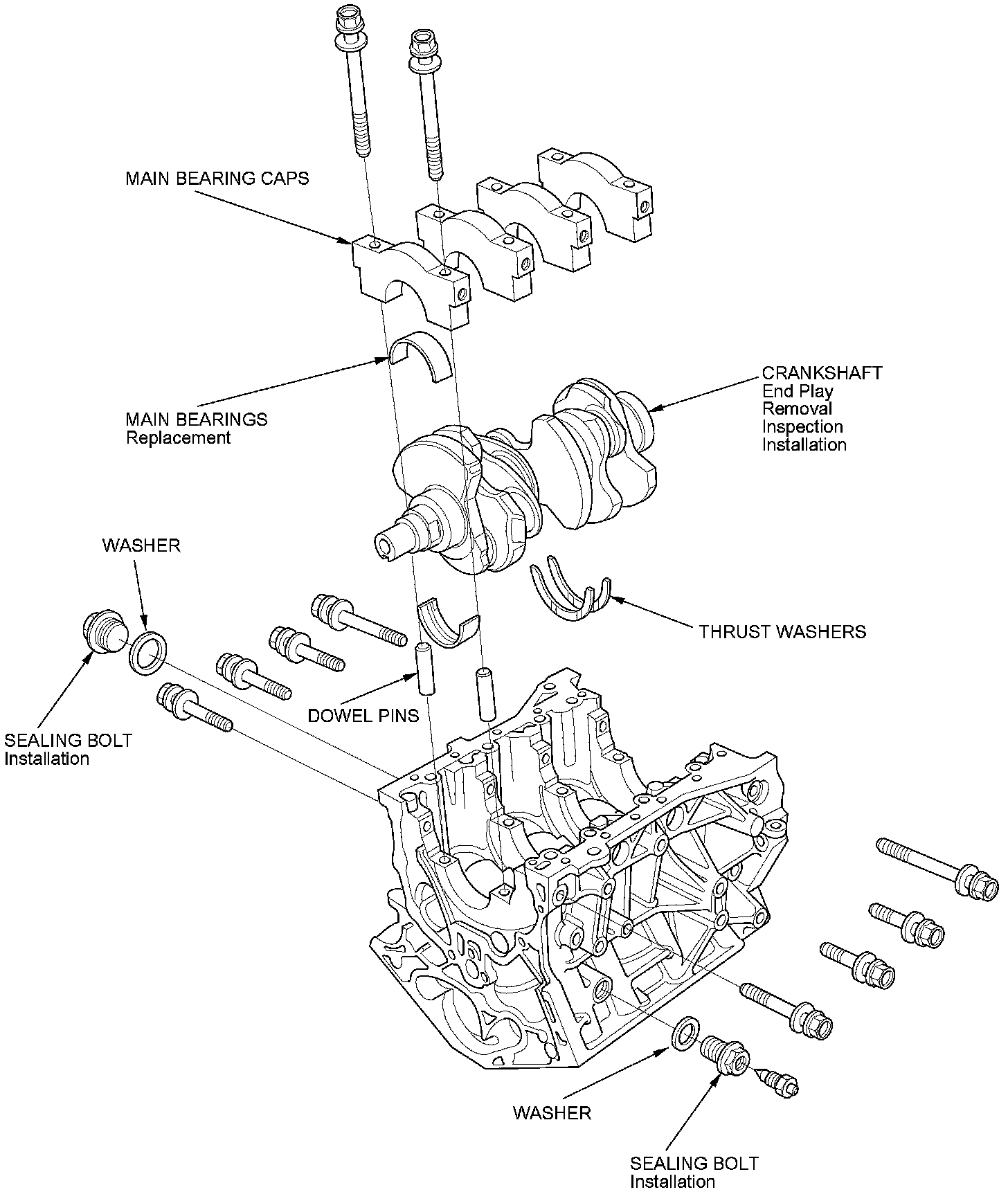

'07 model J35A7 engine

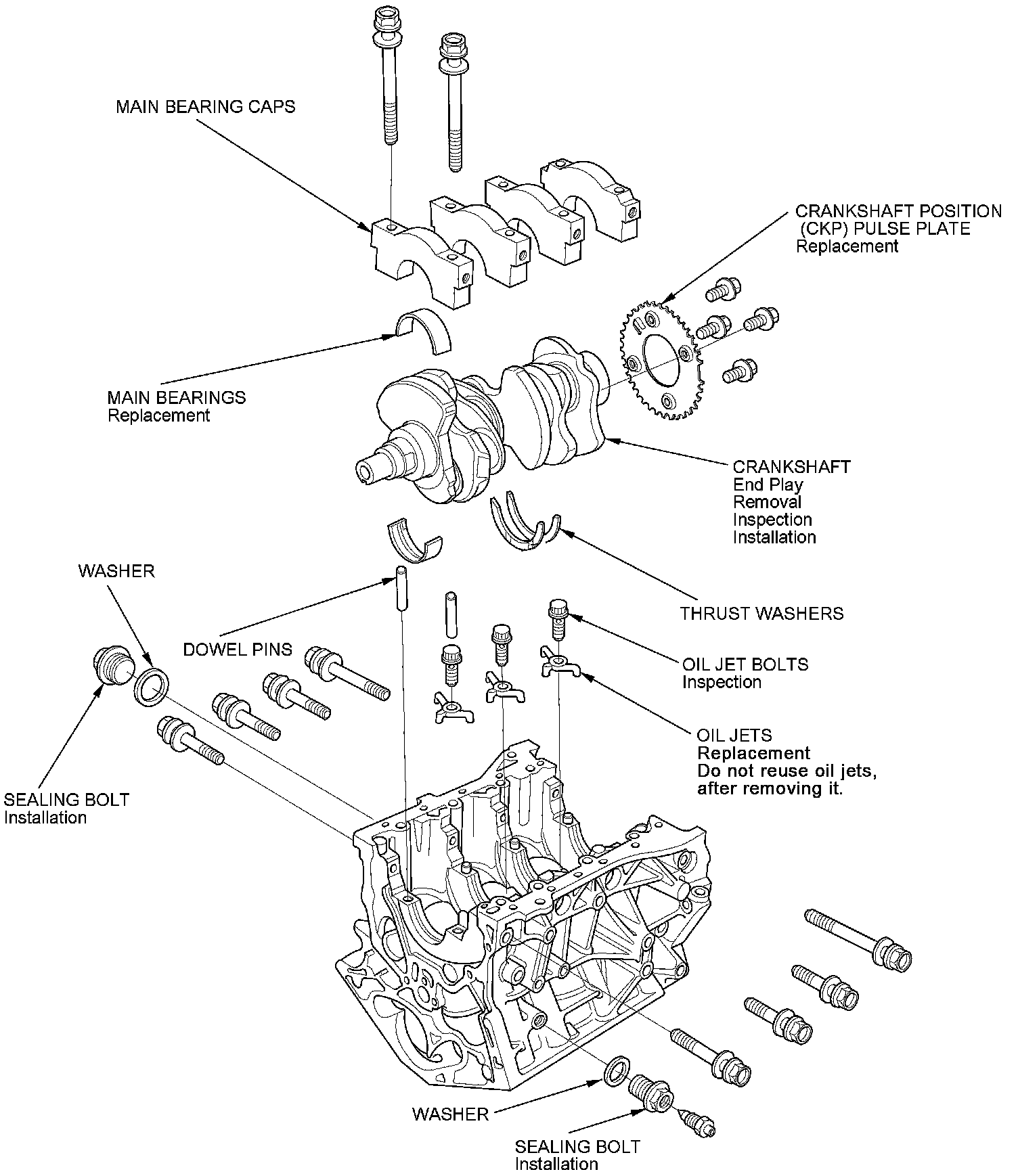

'08-10 models J35A7 engine

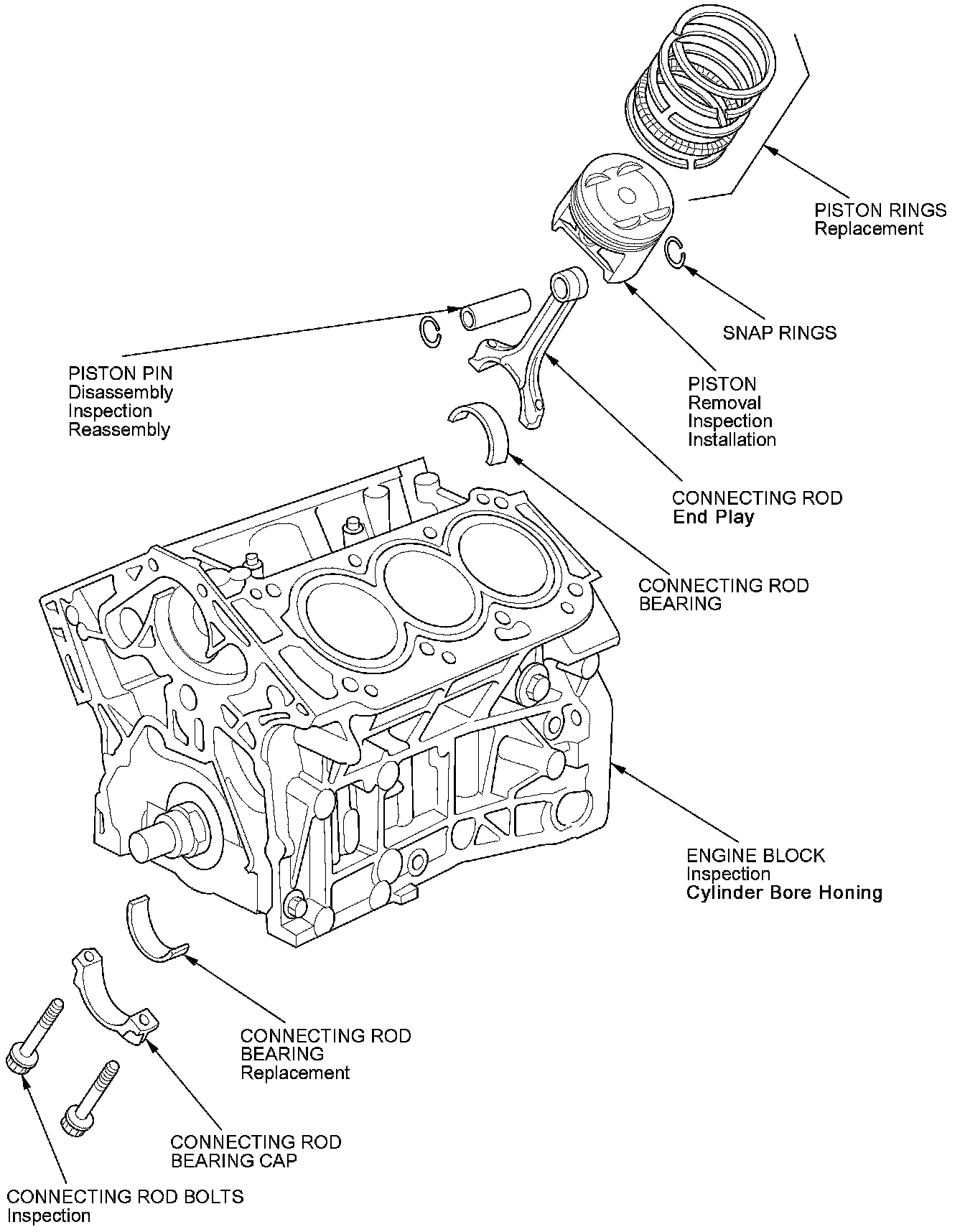

J35A6, J35A7 engines
