Cylinder Head Sealing Bolt Installation (J35A6)

Cylinder Head Sealing Bolt Installation

NOTE: When installing the sealing bolt (A), always use a new washer (B).

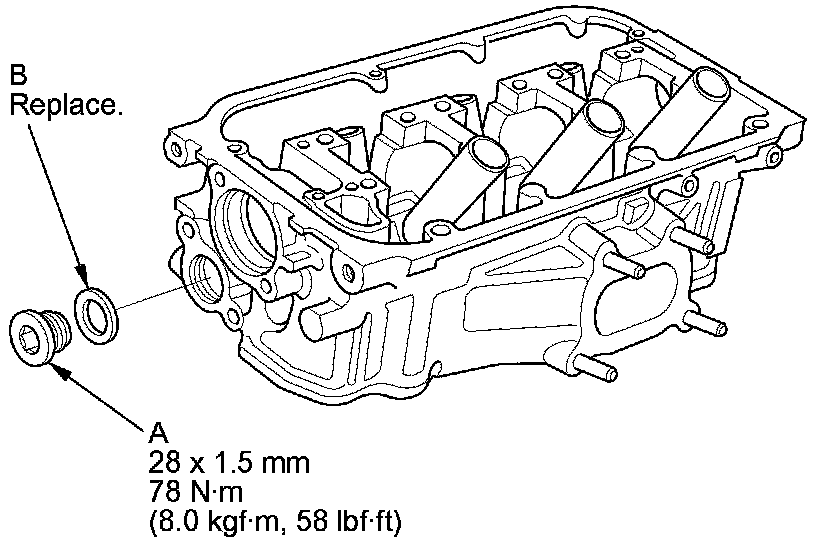

FRONT

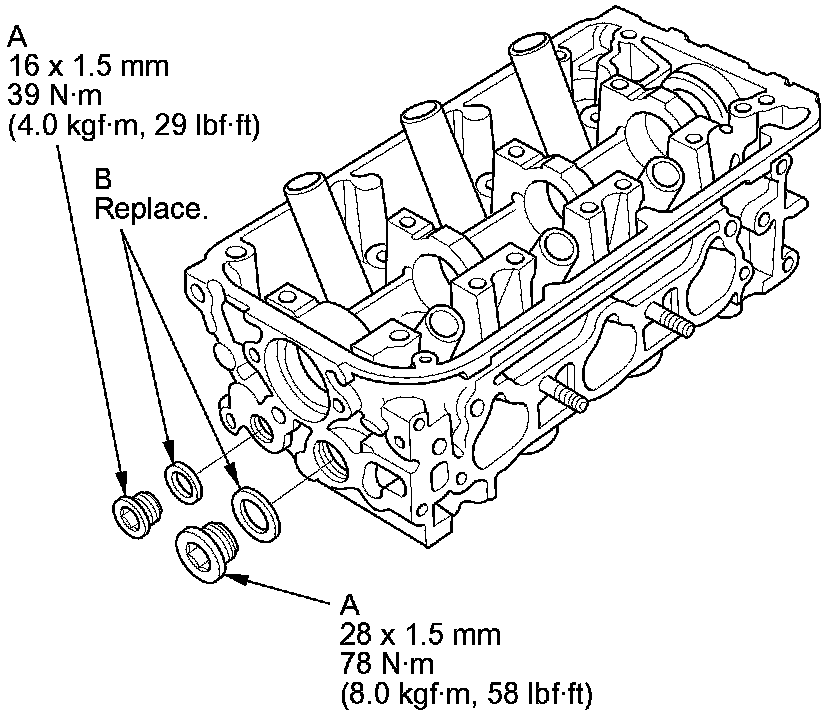

REAR
