Cylinder Head Cover Removal (J35A6)

Cylinder Head Cover Removal

1. Remove the intake manifold Intake Manifold Removal/Installation.

2. Remove the six ignition coils Ignition Coil and Spark Plug Removal/Installation (Except J35A7).

3. Remove the dipstick.

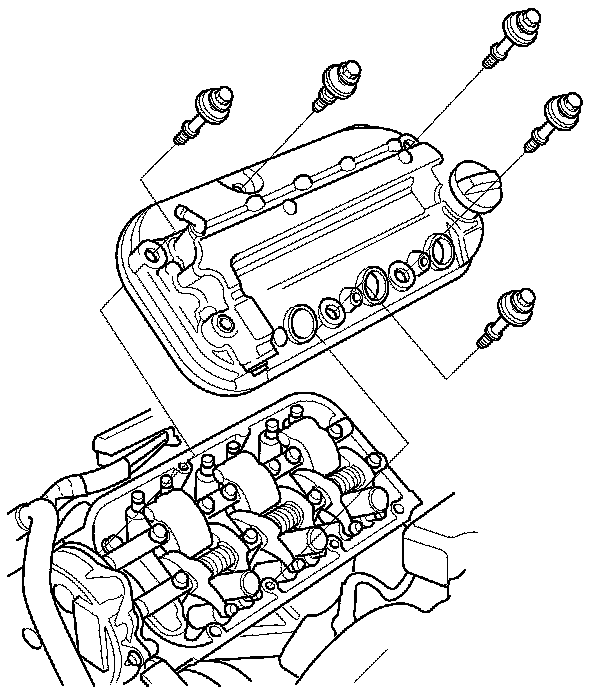

Front Cylinder Head Cover

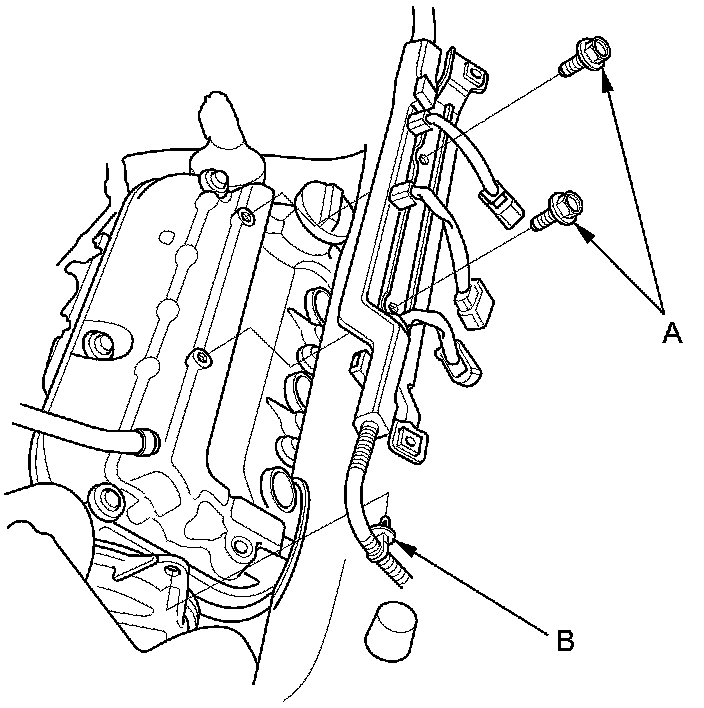

4. Remove the two bolts (A) securing the harness holder, and remove the harness clamp (B).






Rear Cylinder Head Cover

5. Remove the drive belt Drive Belt Replacement (J35A6).

6. Remove the power steering (P/S) pump and the P/S hose bracket Cylinder Head Removal (J35A6) with its hoses connected.

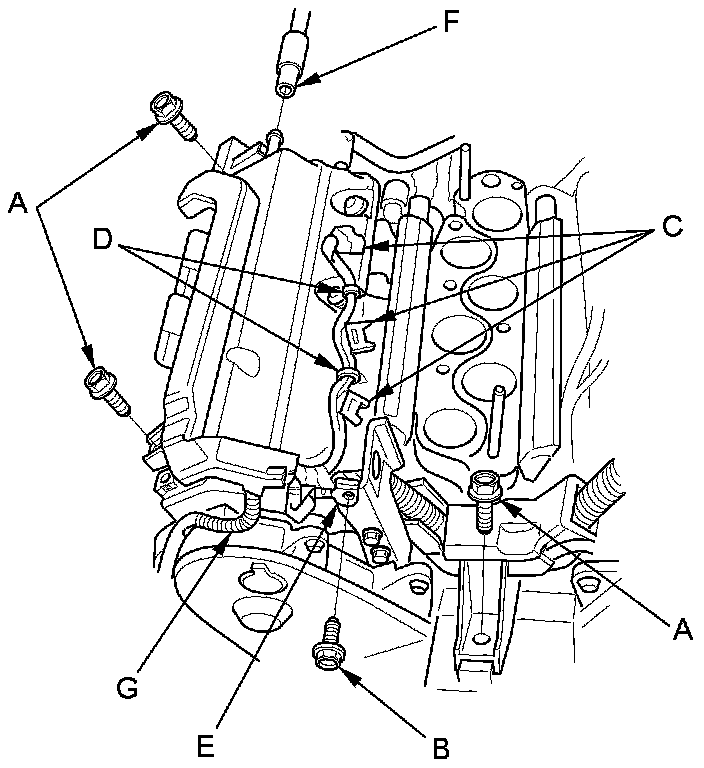

7. Remove the harness holder mounting bolts (A) and the engine ground cable bolt (B).





8. Disconnect the injector connectors (C) and the two harness clips (D).

9. Remove the engine ground cable (E) and disconnect the breather hose (F).

10. Remove the harness (G) from the upper cover.

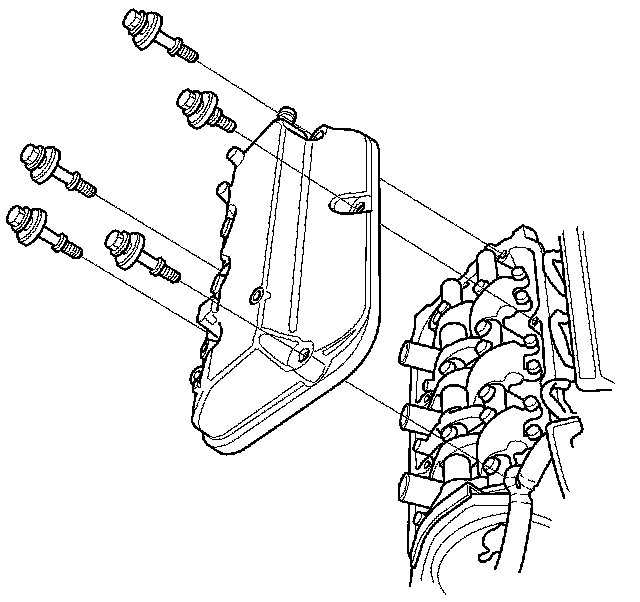

11. Remove the cylinder head cover.

FRONT





REAR
