Front Engine Mount Replacement (J35A7 Engine)




Front Engine Mount Replacement

J35A7 Engine

1. Do the battery removal procedure Removal and Replacement.

2. Remove the battery base Engine Removal.

3. Remove the radiator Radiator Replacement.

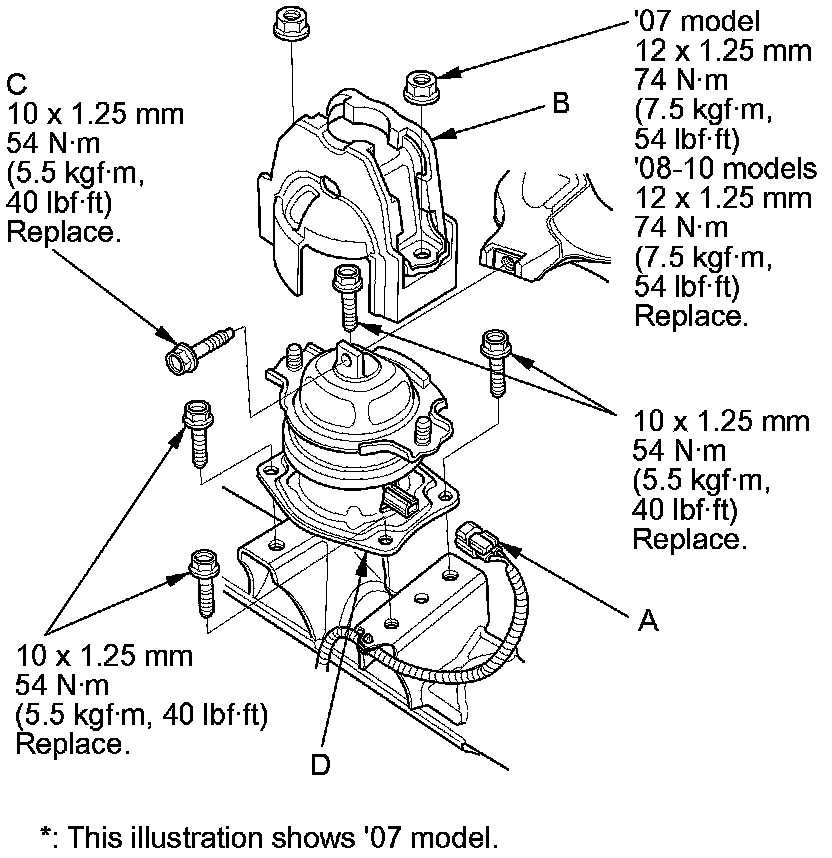

4. Disconnect the front engine mount actuator connector (A).





5. Support the engine with a jack and a wood block under the oil pan.

6. Remove the front engine mount stop (B), then remove the front engine mount bolt (C).

7. Remove the front engine mount (D).

8. Install the front engine mount in the reverse order of removal.

NOTE: Tighten the front engine mount bolt, after removing the jack.

9. Do the battery installation procedure Removal and Replacement.
