Rear Engine Mount Replacement (J35A6)

Rear Engine Mount Replacement

J35A6 Engine

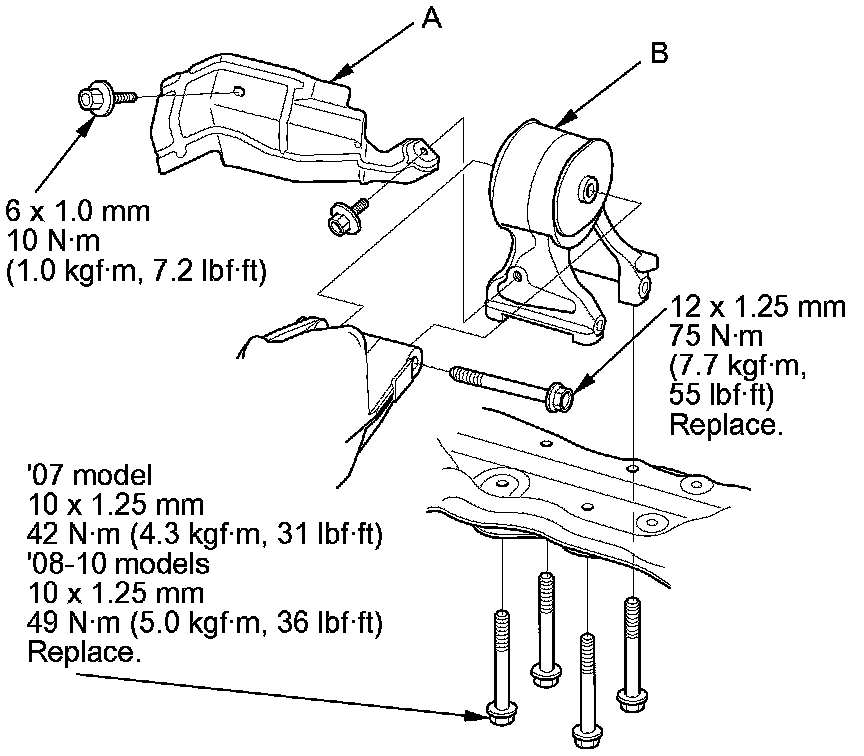

1. Remove the steering gear box heat shield (A).





2. Support the engine with a jack and a wood block under the oil pan.

3. Remove the rear engine mount (B).

4. Install the rear engine mount in the reverse order of removal.

NOTE: Tighten the 12 x 1.25 mm bolt, after removing the jack.
