Rear Engine Mount Replacement (J35A7 Engine)

Rear Engine Mount Replacement

J35A7 Engine

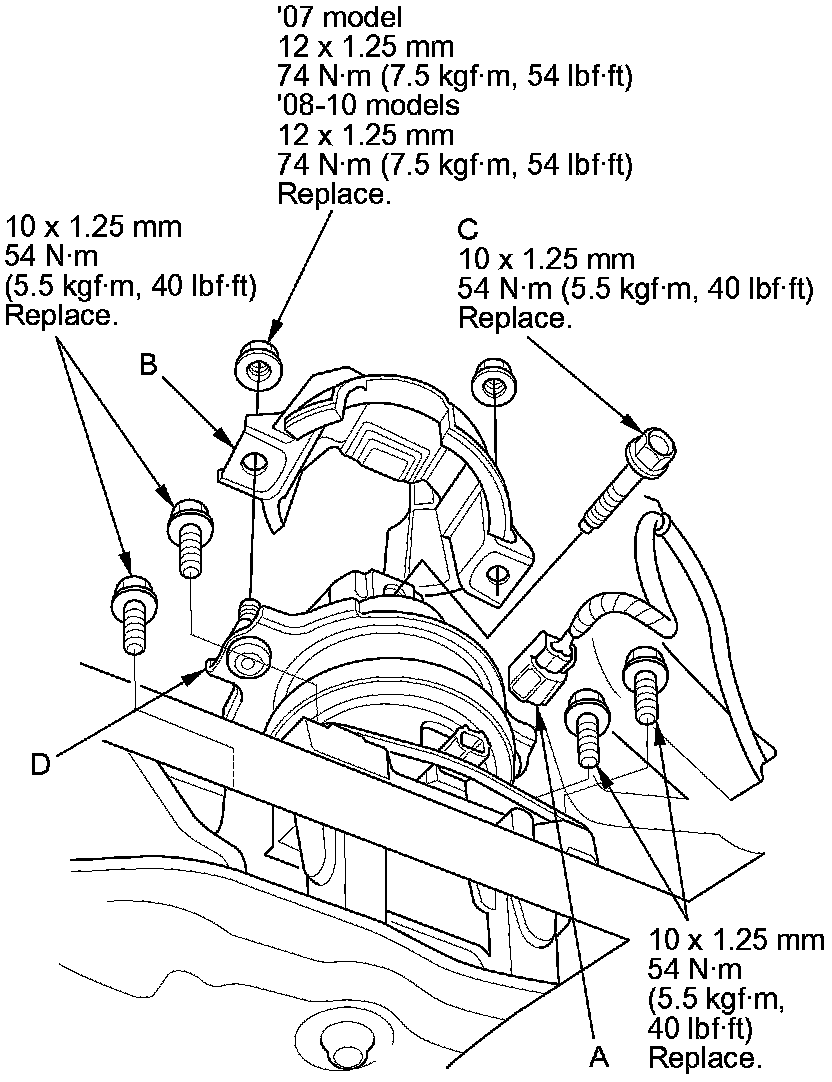

1. Disconnect the rear engine mount actuator connector (A).





2. Support the engine with a jack and a wood block under the oil pan.

3. Remove the rear engine mount stop (B), then remove the rear engine mount bolt (C).

4. Remove the rear engine mount (D).

5. Install the rear engine mount in the reverse order of removal.

NOTE: Tighten the rear engine mount bolt, after removing the jack.
