Engine Oil Jet Replacement (J35A7 Engine)

Engine Oil Jet Replacement

J35A7 engine

1. Remove the crankshaft from the engine block Crankshaft and Piston Removal.

2. Remove the oil jet bolt (A), then remove the oil jet (B).

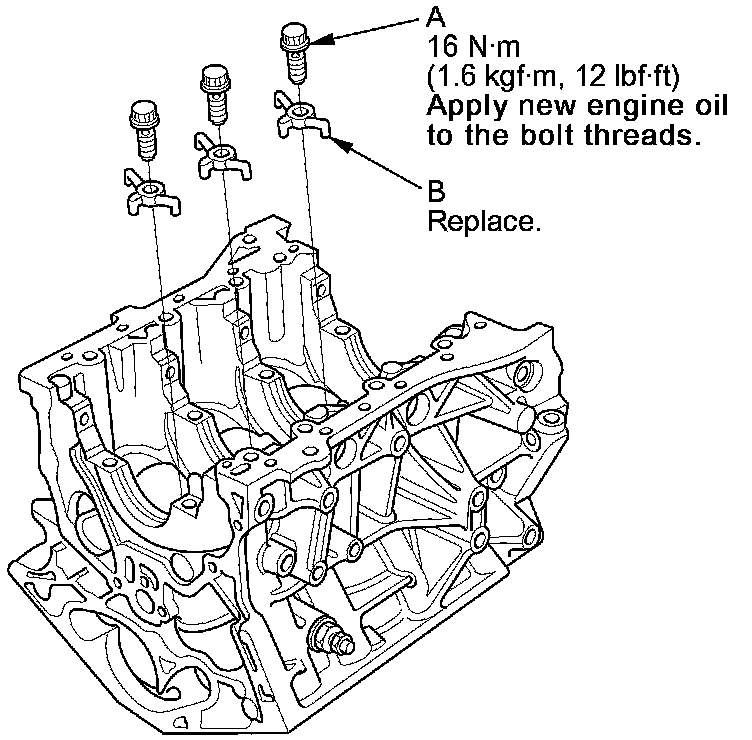

'07 model

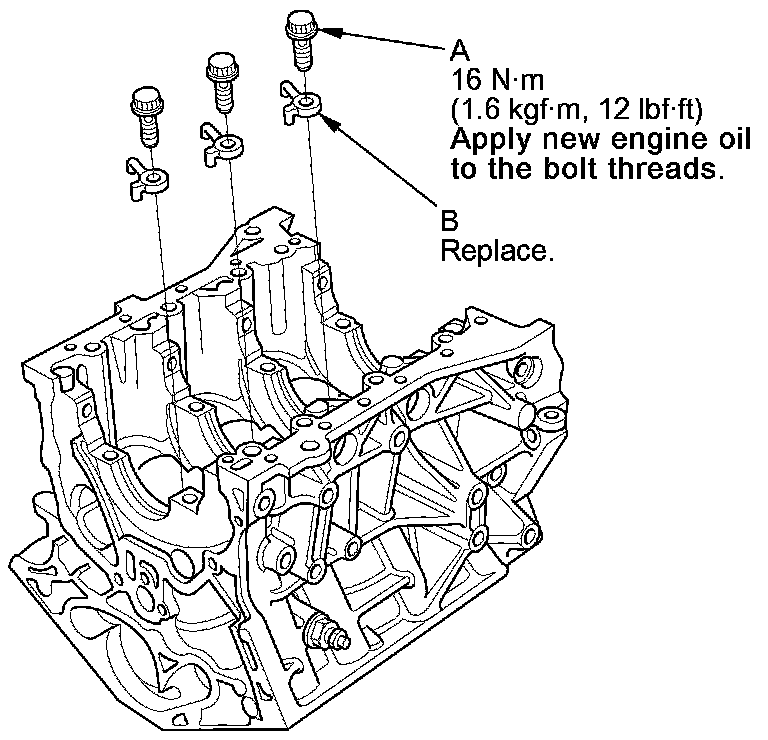

'08-10 models





3. Carefully install the new oil jet and tighten the oil jet bolt.

4. Install the crankshaft Crankshaft and Piston Installation.
