Camshaft Oil Seal Installation - In Car (J35A7)

Camshaft Oil Seal Installation - In Car

Special Tools Required

- Ball Joint Remover/Installer 07GAF-SD40330

1. Remove the timing belt Timing Belt Removal (J35A7).

2. Remove the camshaft pulley and the back cover Cylinder Head Removal (J35A7).

3. Remove the camshaft oil seal.

4. Clean and dry the camshaft oil seal housing.

5. Apply a light coat of new engine oil to the lip of the camshaft oil seal.

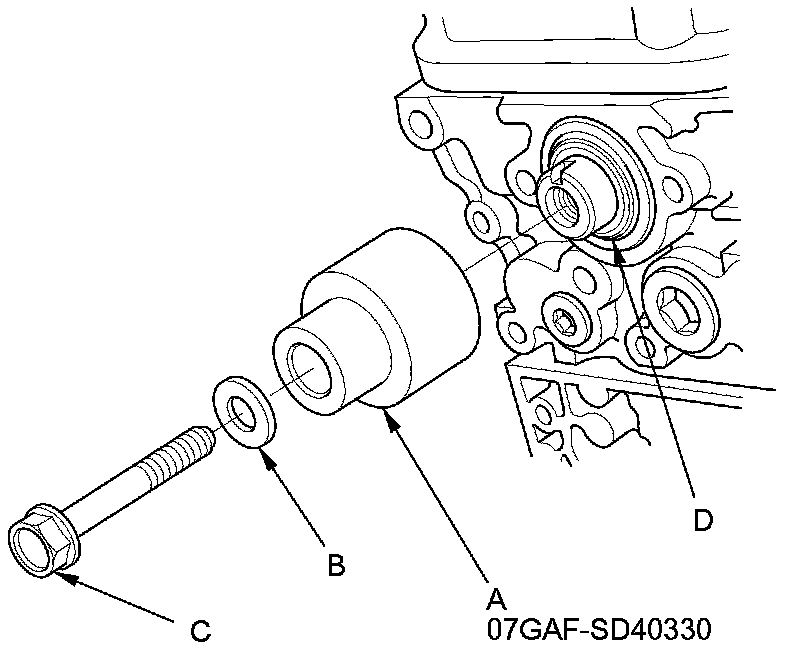

6. Using the ball Joint remover/Installed (A), a washer (B), and a 12 x 75 x 1.25 mm bolt (C), press in the new camshaft oil seal (D) about 0.5-1.5 mm (0.02-0.06 in) below the surface of the cylinder head.





7. Apply new engine oil to the threads of the camshaft pulley mounting bolt. Install the back cover, then install the camshaft pulley.

- Front Camshaft, Rocker Arm Assembly, Camshaft Seal, and Pulley Installation (J35A7)
- Rear Camshaft, Rocker Arm Assembly, Camshaft Seal, and Pulley Installation (J35A7)

8. Install the timing belt Timing Belt Installation (J35A7).
