Rear Crankshaft Main Bearing Seal: Service and Repair

Transmission End Crankshaft Oil Seal Installation - In Car

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment, 106 mm 070AD-RCA0200

1. Remove the transmission Automatic Transmission Removal and the drive plate Service and Repair.

2. Remove the transmission end crankshaft oil seal.

3. Clean and dry the crankshaft oil seal housing.

4. Apply a light coat of new engine oil to the lip of the crankshaft oil seal.

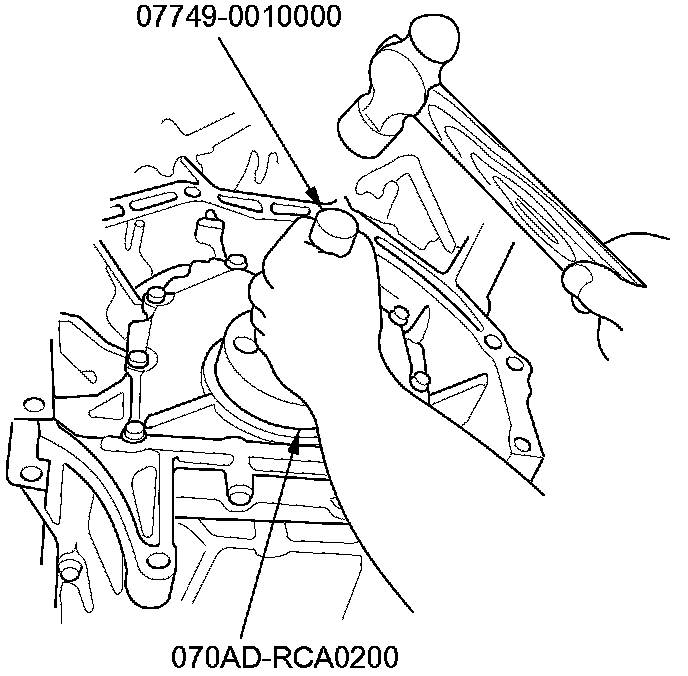

5. Using the driver handle, 15 x 135L and the oil seal driver attachment, 106 mm, drive in the new crankshaft oil seal until the oil seal driver attachment bottoms on the engine block end cover. Align the hole in the oil seal driver attachment with the pin on the crankshaft.





6. Clean any excess grease off the crankshaft, and check that the oil seal lip is not distorted.

7. Install the drive plate Service and Repair, and the transmission Automatic Transmission Installation.
