Front Air Mix Control Motor Replacement

Front Air Mix Control Motor Replacement

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

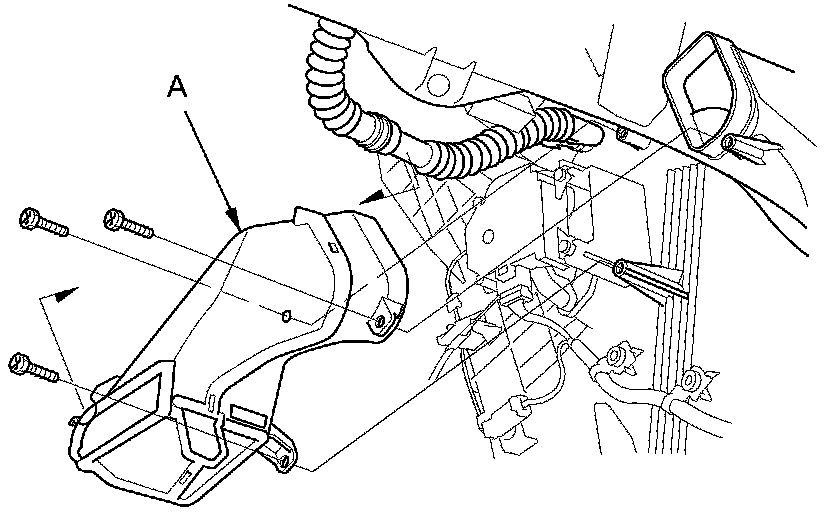

2. Remove the self-tapping screws and the duct (A).

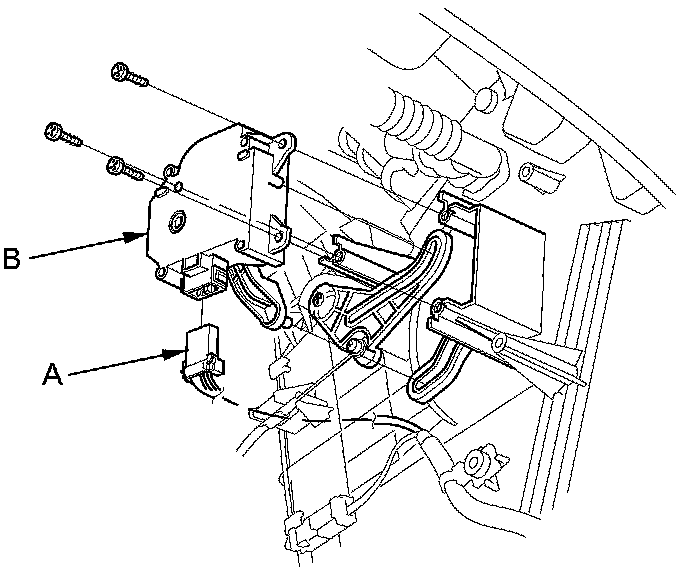

3. Disconnect the 7P connector (A) from the front air mix control motor (B). Remove the self-tapping screws and the front air mix control motor from the heater unit.





4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
