Blower Unit Component Replacement

Blower Unit Component Replacement

Note these items when overhauling the blower unit:

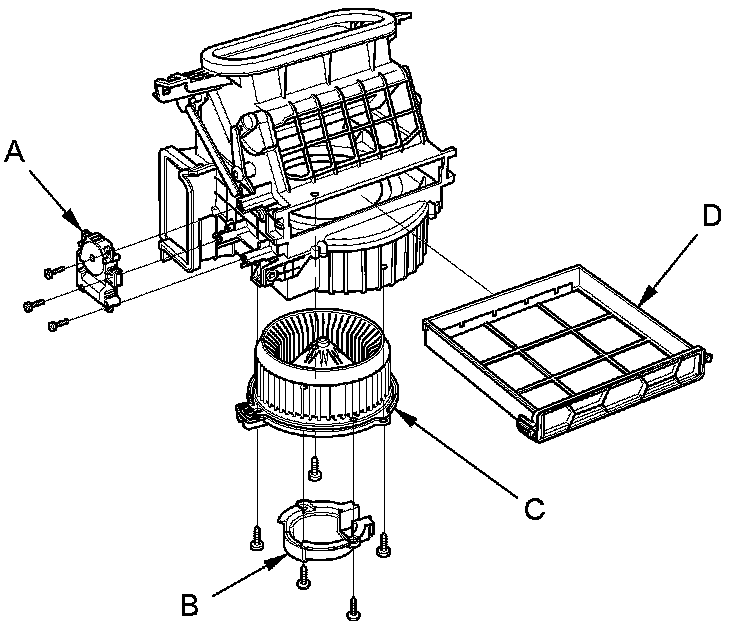

- The recirculation control motor (A), the blower motor cover (B), front blower motor (C) and the dust and pollen filter housing (D) can be replaced without removing the blower unit.
- Before reassembly, make sure that the recirculation control linkage and doors move smoothly without binding.
- After reassembly, make sure the recirculation control motor runs smoothly Recirculation Control Motor Replacement.
