Blower Unit Removal/Installation (Without Climate Control)

Blower Unit Removal/Installation

1. Remove the glove box housing Lower Glove Box Removal/Installation.

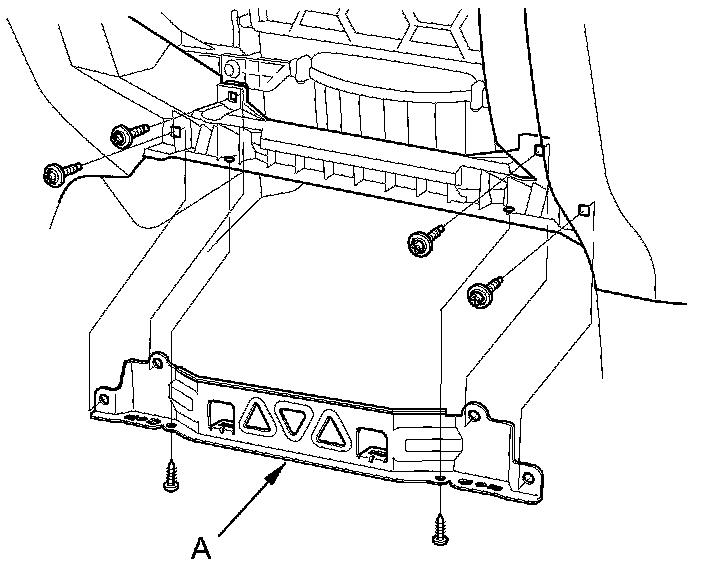

2. Remove the self-tapping screws, the bolts, and the glove box frame (A).

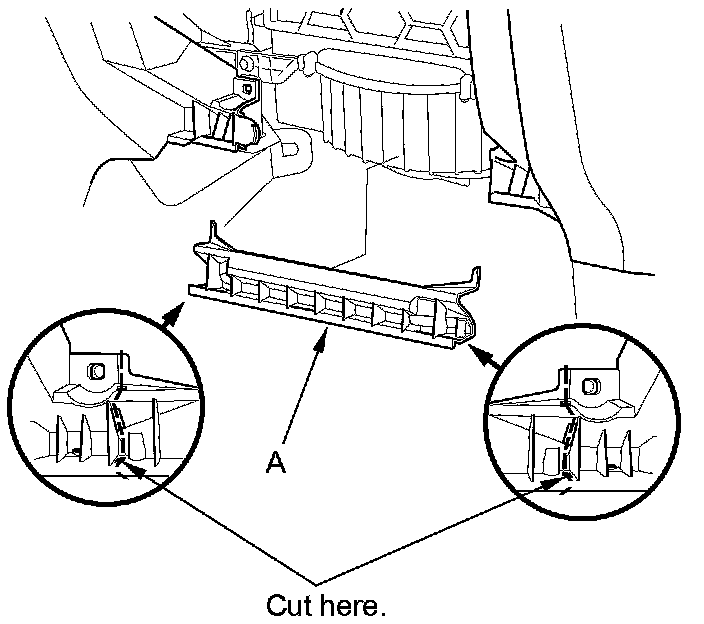

3. Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown, and discard it.

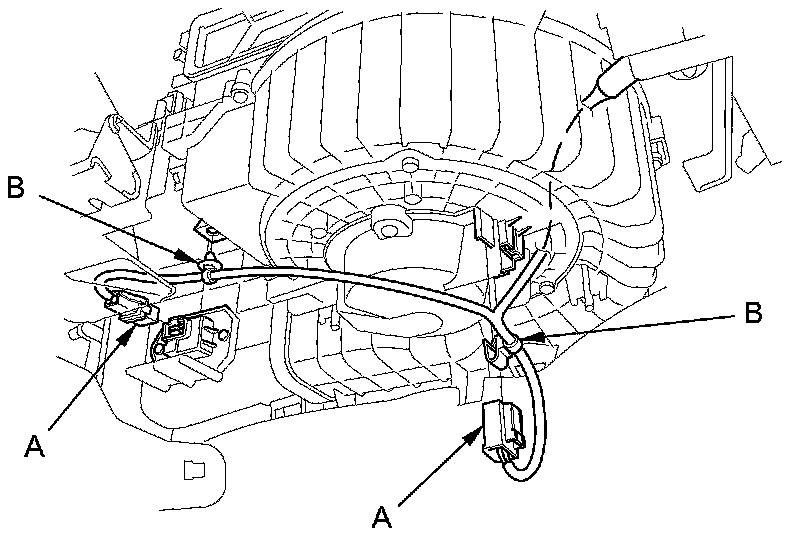

4. Disconnect the connectors (A) from the front blower motor and the front power transistor, then remove the wire harness clips (B).

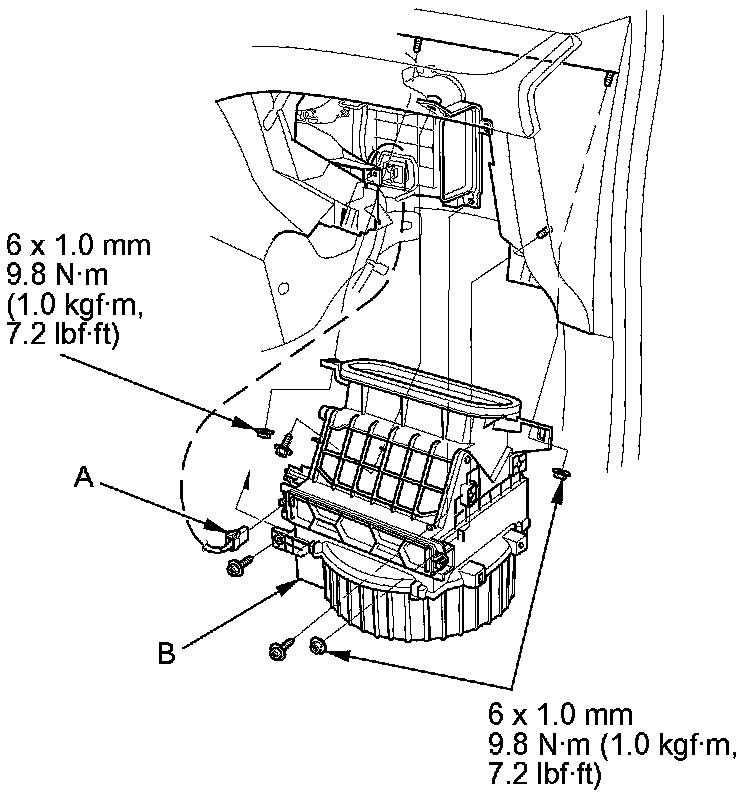

5. Disconnect the connector (A) from the recirculation control motor, then remove the bolts, the mounting nuts and the blower unit (B).





6. Install the unit in the reverse order of removal. Make sure that there is no air leakage.
