Compass: Description and Operation

Electrical Compass System Description

The electrical compass unit shows the direction of the vehicle on the multi-information display (MID).

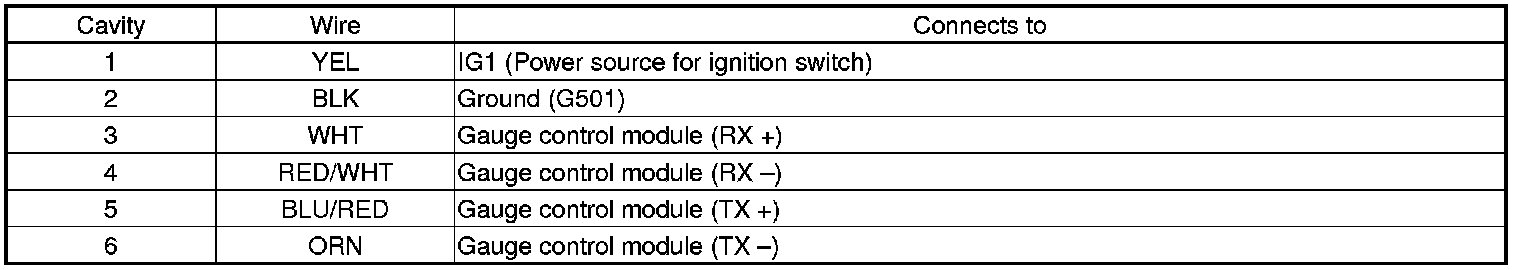

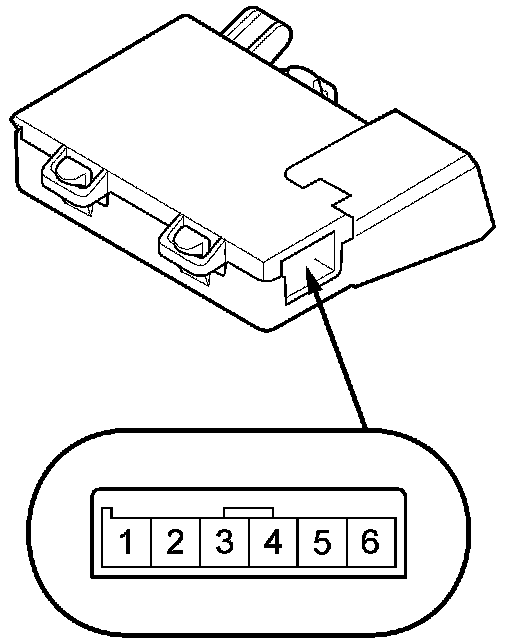

Electrical Compass Unit Connector Inputs and Outputs
