Dashboard Center Pocket Removal/Installation

Dashboard Center Pocket Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the dashboard or the related parts.

1. Remove the dashboard center panel Dashboard Center Panel Removal/Installation.

2. Remove the audio unit Audio Unit Removal/Installation.

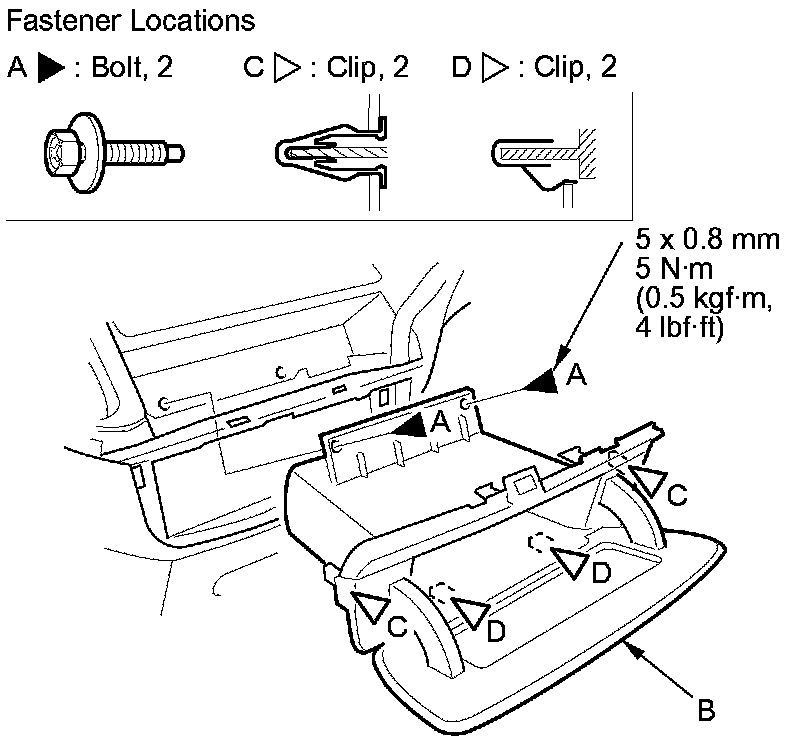

3. Remove the bolts (A), and pull out the center pocket (B) to detach the clips (C, D).





4. Install the center pocket in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
