Driver's Dashboard Outer Panel Removal/Installation

Driver's Dashboard Outer Panel Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the dashboard or the related parts.
- Put on gloves to protect your hands.

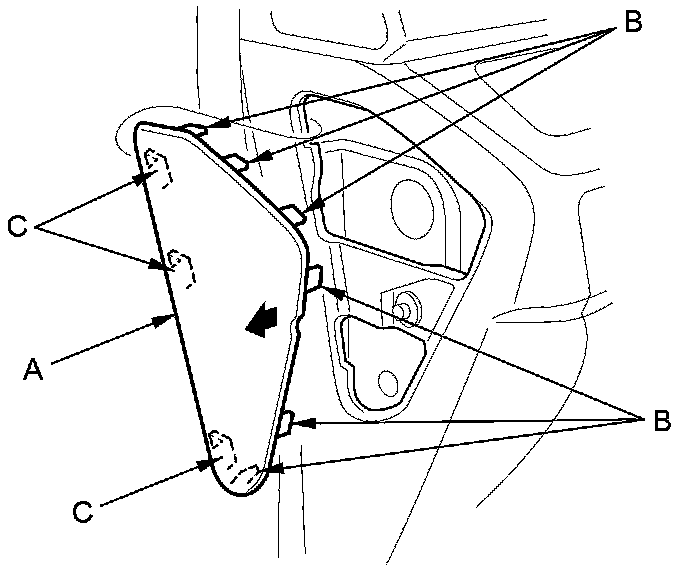

1. Remove the dashboard side panel (A).

1. Open the front door.

2. Gently pull out along the front edge to release the hooks (B).

3. Gently pull out on the side cover to release the hooks (C), then remove the side panel.

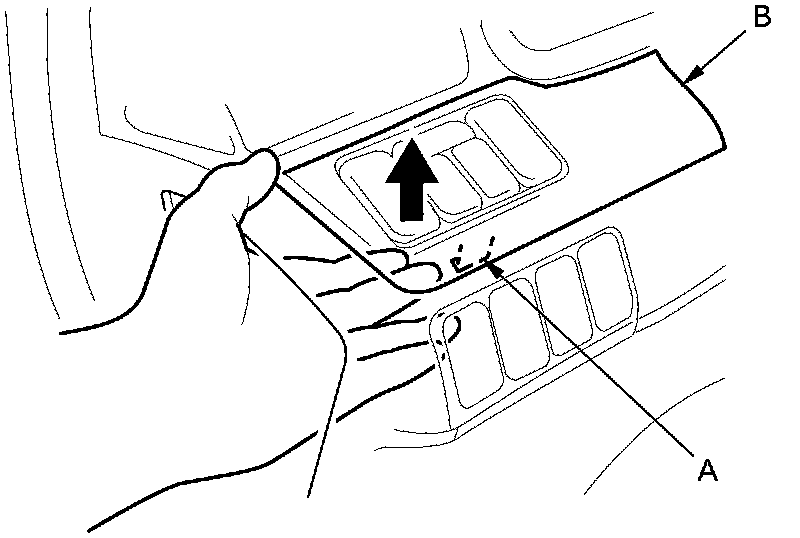

2. Push the bottom hook (A) by hand, and pull out the bottom of the driver's dashboard outer panel (B).

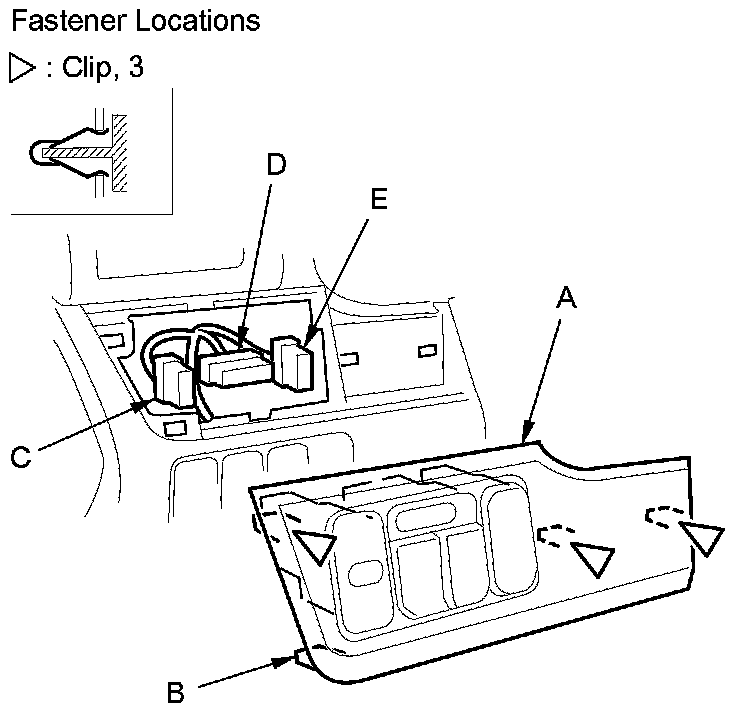

3. Gently pry up on the driver's dashboard outer panel (A) to detach the clips, and release the hook (B).





4. Disconnect the moonroof switch connector (C), the power sliding door main switch connector (D), and the adjustable pedal switch connector (E), then remove the driver's dashboard outer panel.

5. Install the outer panel in the reverse order of removal, and note these items:

- Make sure each connector is plugged in properly.
- Push the clips and the hooks into place securely.
