Driver's Lower Dashboard Switch Panel Removal/Installation

Driver's Lower Dashboard Switch Panel Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove the dashboard/steering hanger beam Dashboard/Steering Hanger Beam Removal/Installation.

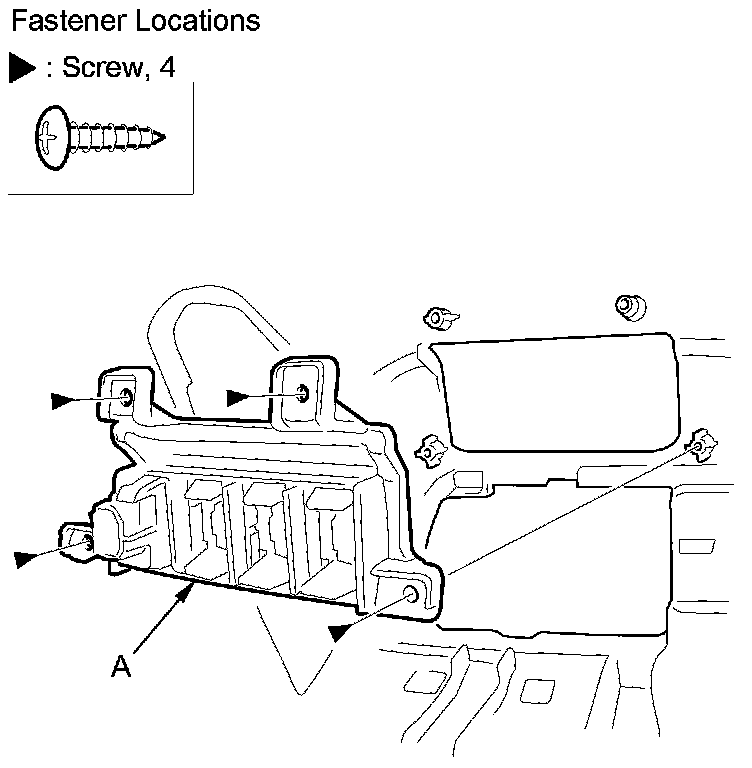

2. Remove the screws and the driver's lower dashboard switch panel (A).





3. Install the panel in the reverse order of removal.
