Ambient Light Test/Replacement (Except VAN, DX, and LX Models)

Ambient Light Test/Replacement

EX, EX-L, and Touring models

1. Remove the front individual map light Front Individual Map Light Test/Replacement (With Moonroof).

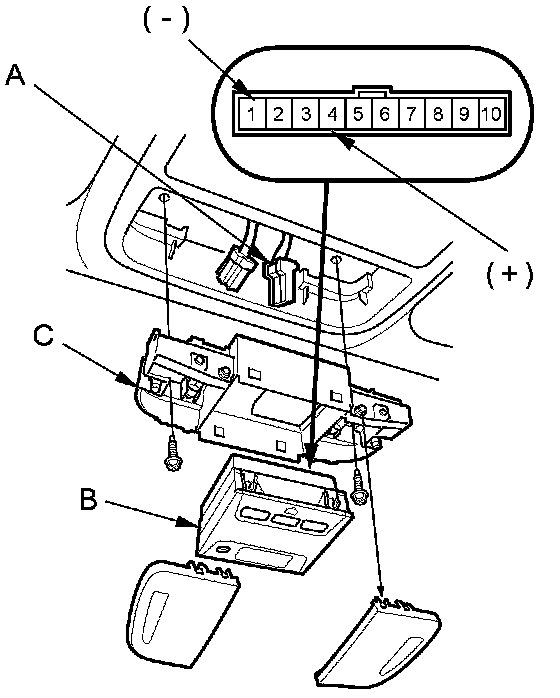

2. Disconnect the 10P connector (A) from the ambient light/HomeLink unit (B), then remove the ambient light/HomeLink unit from the map light housing (C).





3. Connect battery power to terminal No. 4 and ground to terminal No. 1. The ambient light should come on. If the light does not come on, replace the ambient light/HomeLink unit.
