Fog/Driving Lamp: Service and Repair

Fog Light Replacement

Touring model

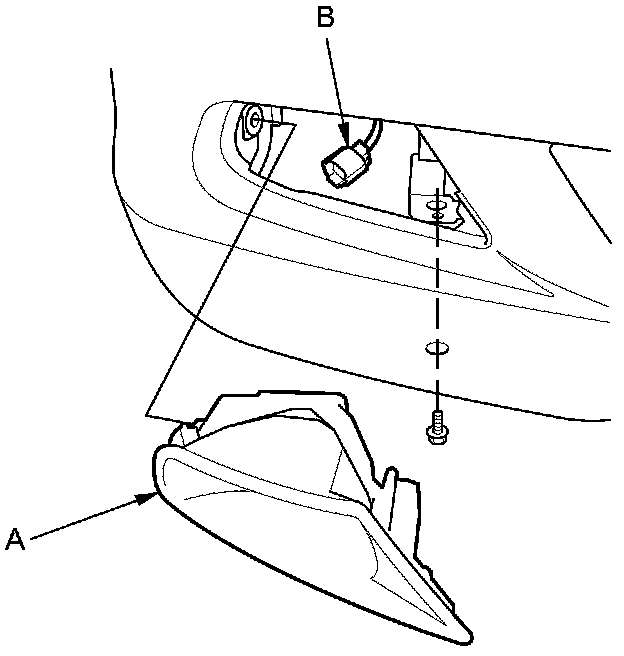

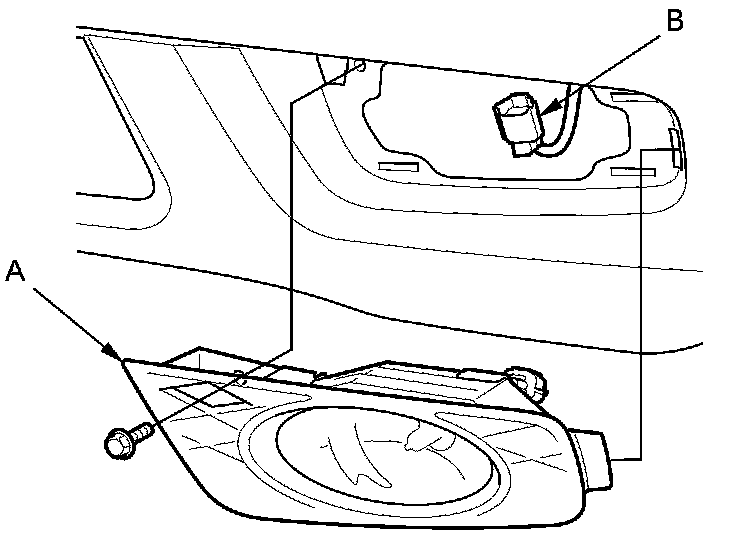

1. Remove the bolt from the fog light (A).

'07 model





'08-10 models





2. Disconnect the 2P connector (B) from the light.

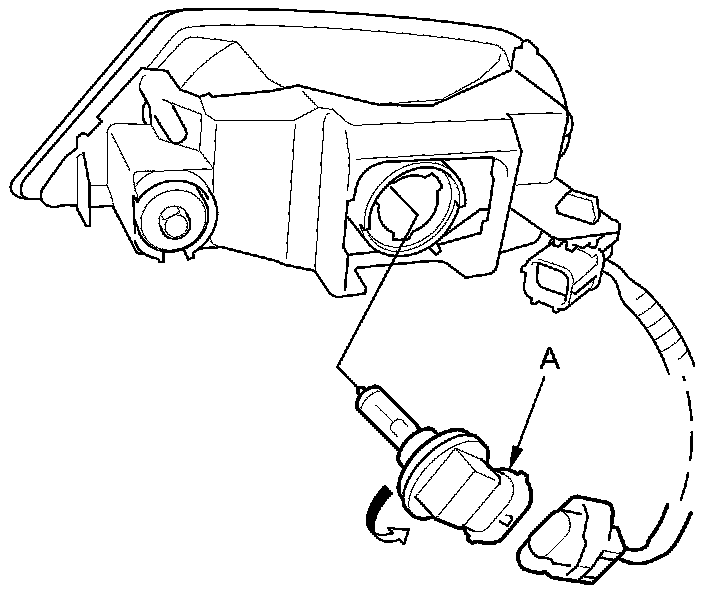

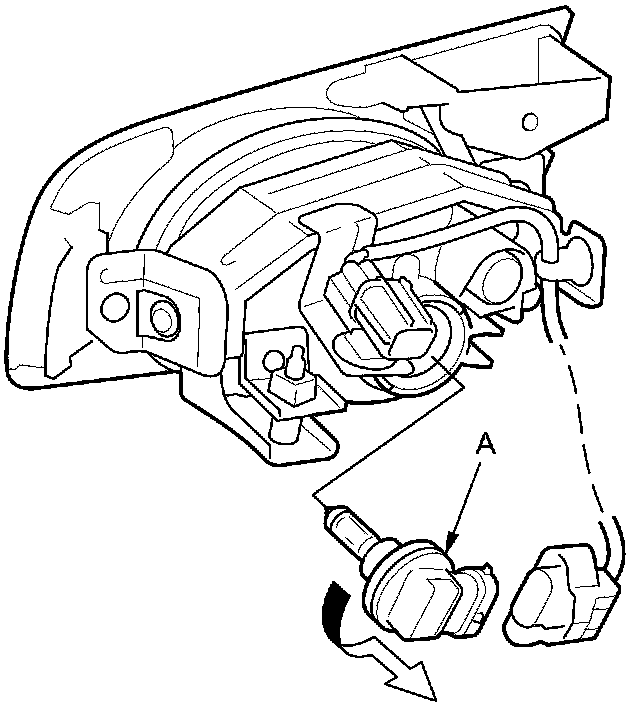

3. Disconnect the 2P connector, and Turn the bulb socket (A) 45 ° counterclockwise to remove it from the housing.






'07 model





'08-10 models





4. Install the fog light in the reverse order of removal.

5. After replacement, adjust the fog lights to local requirements.
