Headlamp: Adjustments

Headlight Adjustment

CAUTION
Headlights become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.

Before adjusting the headlights:

- Park the vehicle on a level surface.
- Make sure the tire pressures are correct.
- The driver or someone who weighs the same should sit in the driver's seat (or an equivalent amount of weight).

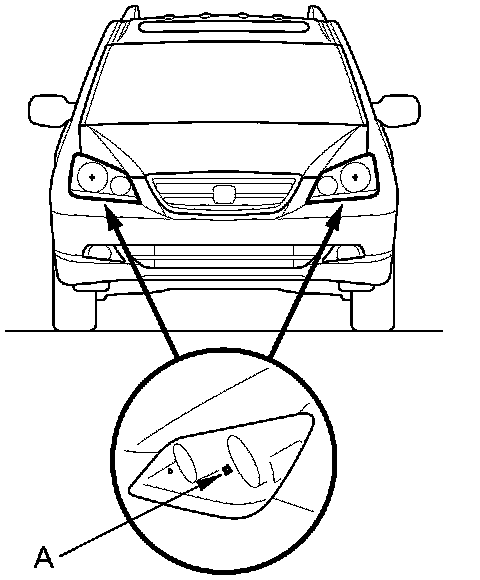

1. Clean the outer lens so that you can see the center (A) of the headlights.

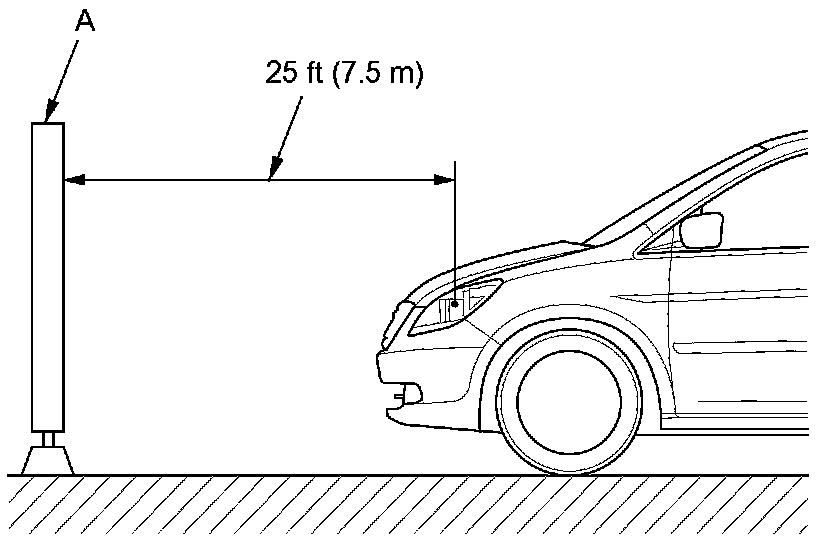

2. Park the vehicle 25 ft (7.5 m) away from a wall or a screen (A).





3. Turn the low beams on.

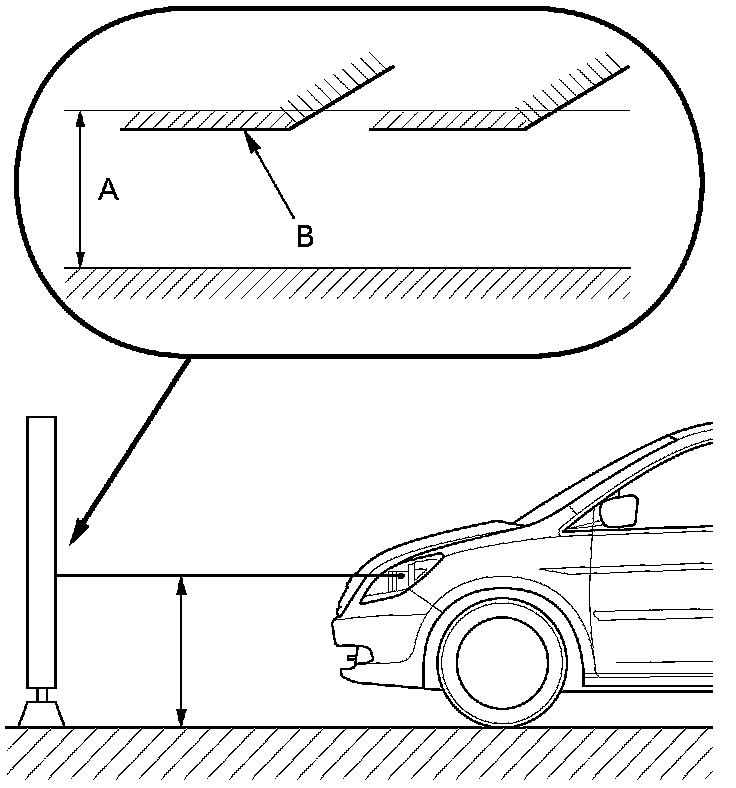

4. Determine if the headlights are aimed properly.

Vertical adjustment:

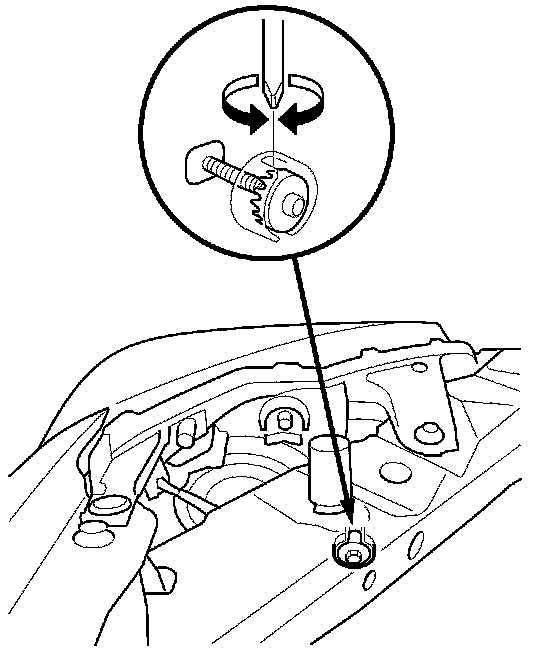

5. If necessary, open the hood and adjust the headlights to local requirements by turning the vertical adjuster.
