Headlamp Bulb: Service and Repair

Exterior Light Bulb Replacement

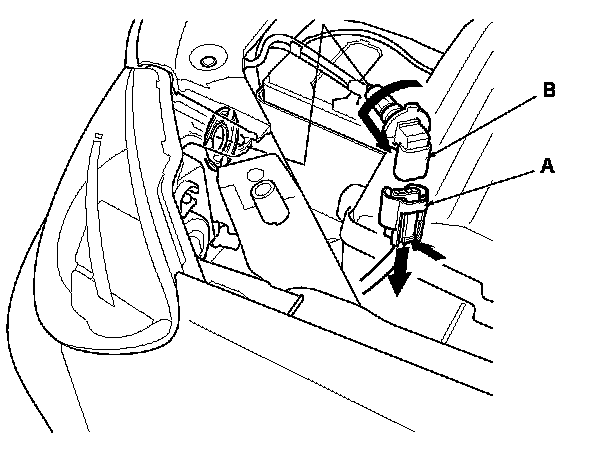

Headlight (Low Beam)

1. Disconnect the 2P connector (A) from the headlight.





2. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

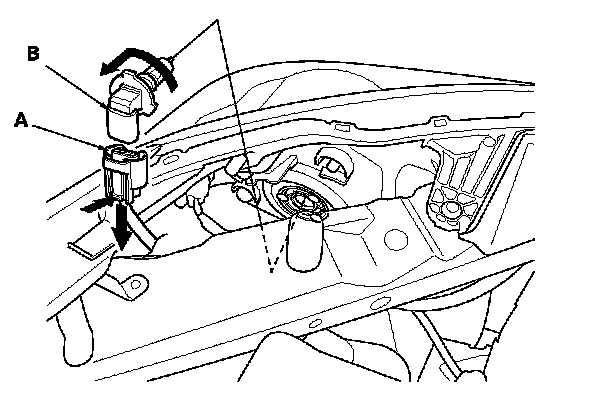

Headlight (High Beam)

1. Disconnect the 2P connector (A) from the headlight.





2. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

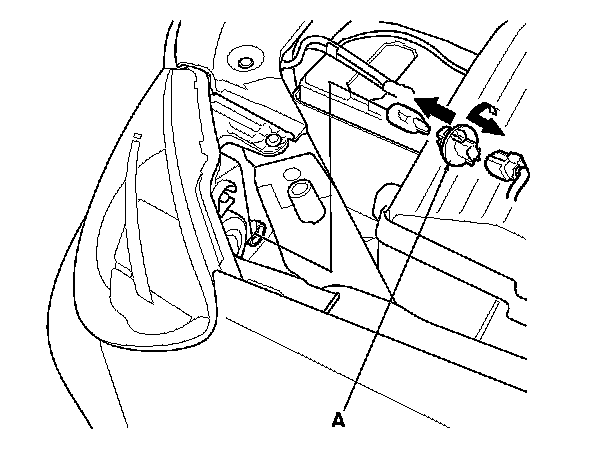

Front Turn Signal Light

1. Turn the bulb socket (A) 45 ° counterclockwise to remove it from the headlight housing.





2. Install a new bulb in the reverse order of removal.

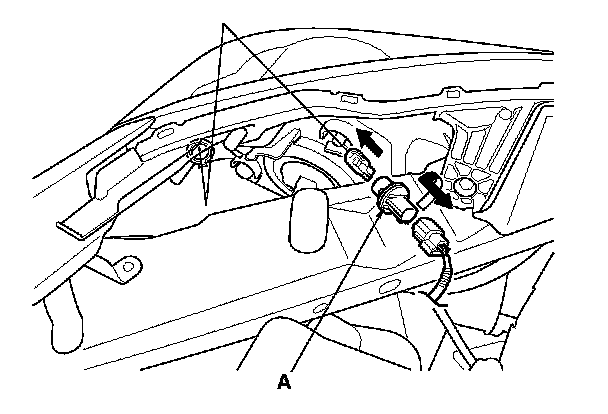

Front Parking Light

1. Turn the bulb socket (A) 45 ° counterclockwise to remove it from the headlight housing.





2. Install a new bulb in the reverse order of removal.

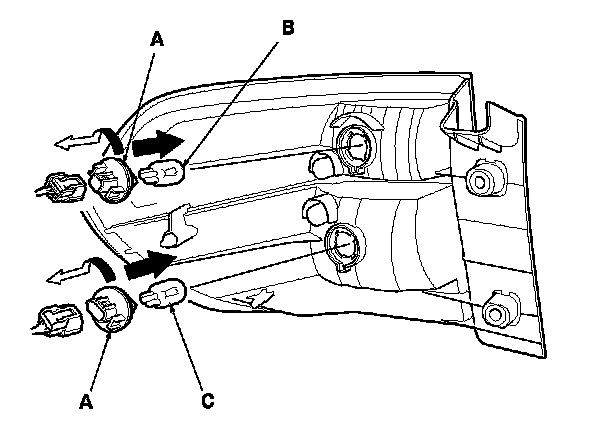

Brake Light/Turn Signal/Outer Taillight

1. Remove the taillight assembly.

2. Turn the bulb sockets (A) 45 ° counterclockwise to remove it from the housing.





3. Install a new bulb in the reverse order of removal.

'07 model





'08-09 models

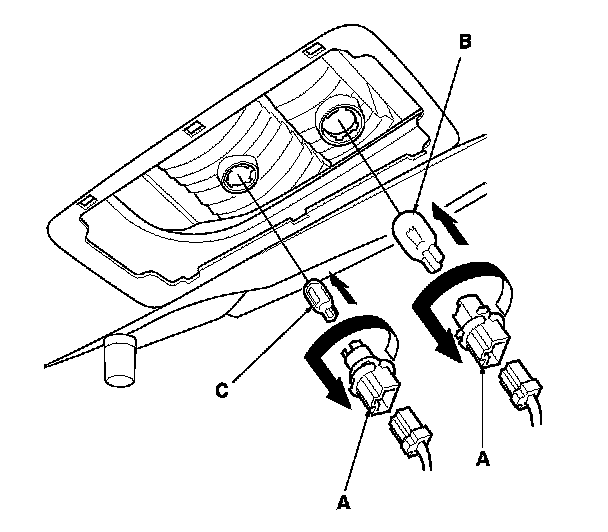

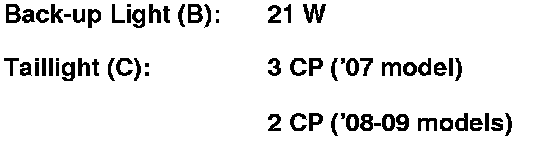

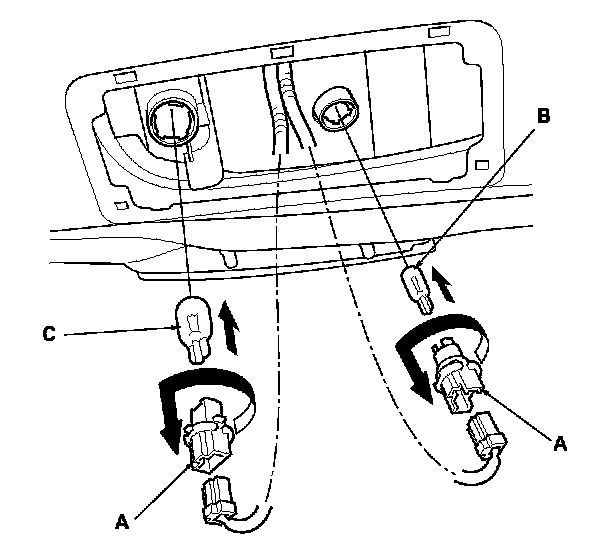

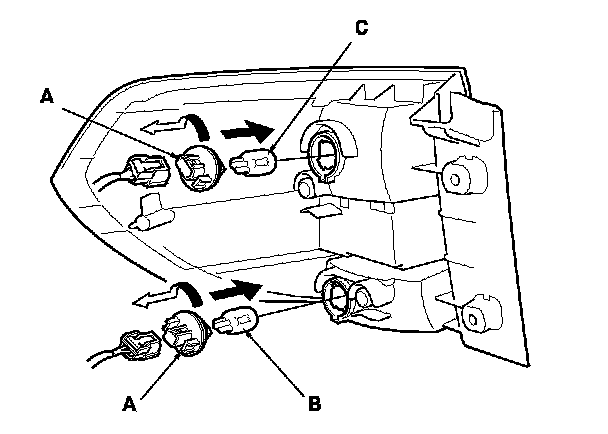

Back-up Light/Inner Taillight

1. Open the tailgate and remove the tailgate lid panel.

2. Turn the bulb sockets (A) 45 ° counterclockwise to remove it from the housing.





3. Install a new bulb in the reverse order of removal.

'07 model





'08-09 models
