Headlamp: Service and Repair

Headlight Replacement

1. Remove the front bumper Front Bumper.

2. Disconnect the connectors (A) from the headlight assembly (B).

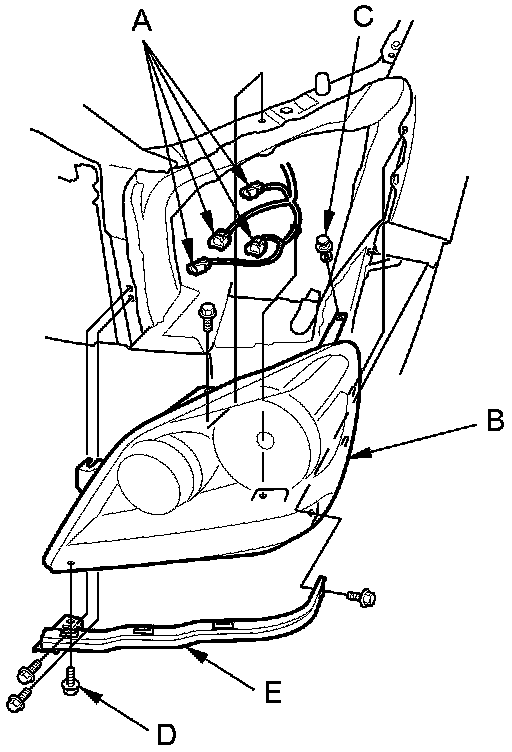

'07 model

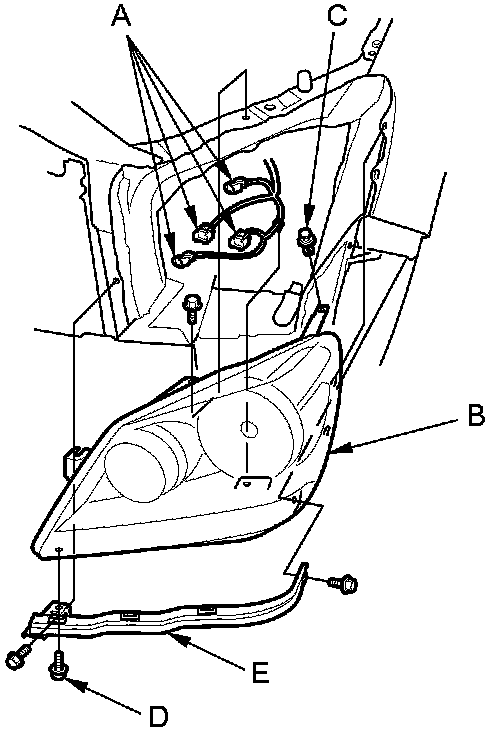

'08-10 models





3. Remove the bolts and clip (C) from the headlight.

4. Remove the bolt (D) and the corner upper beam (E) from the headlight.

5. Install the headlight in the reverse order of removal.

6. After replacement, adjust the headlights to local requirement.
