License Plate Lamp: Service and Repair

License Plate Light Replacement

'08-10 models

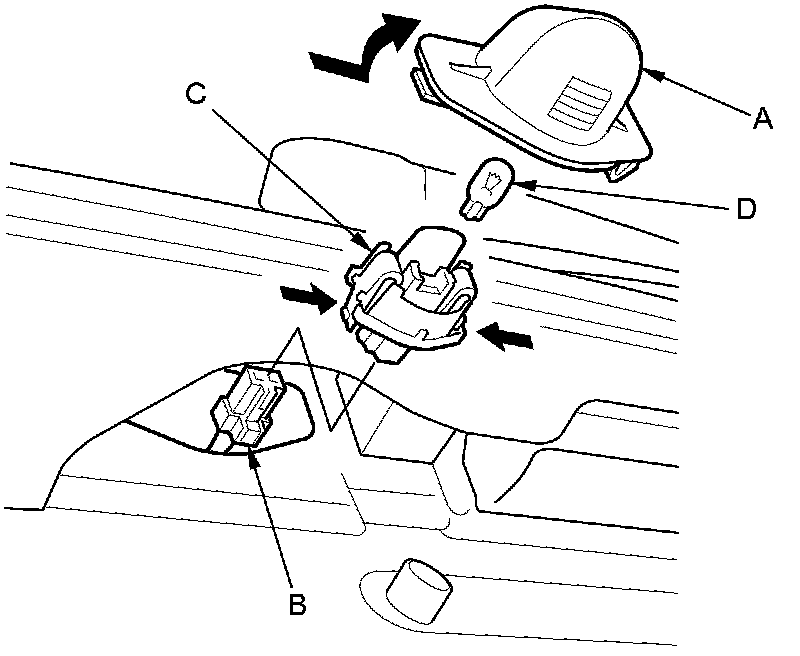

1. Push the license plate light (A) to the slide to release the retaining spring, and pull out the license plate light.









2. Disconnect the 2P connector (B) from the license plate light.

3. Separate the license plate light and the housing (C), then remove the bulb (D).

4. Install the light in the reverse order of removal.
