Tail Lamp: Service and Repair

Taillight Replacement

Taillight

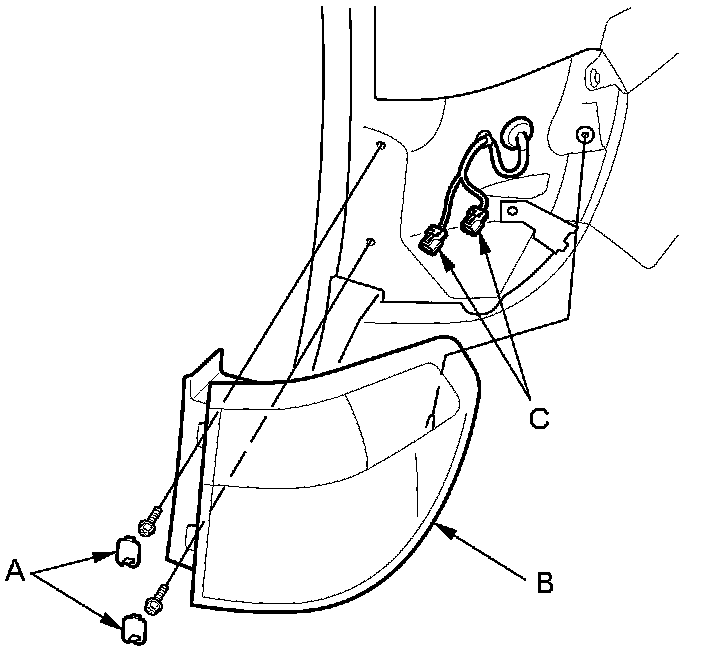

1. Remove the covers (A) and two bolts from the taillight (B).





2. Carefully pull out the taillight, and disconnect the connectors (C) from the taillight.

3. Install the taillight in the reverse order of removal.

Inner Taillight

NOTE: For bulb replacement, refer to Bulb Replacement Service and Repair.

1. Remove the tailgate trim panel .

2. Remove the license trim.

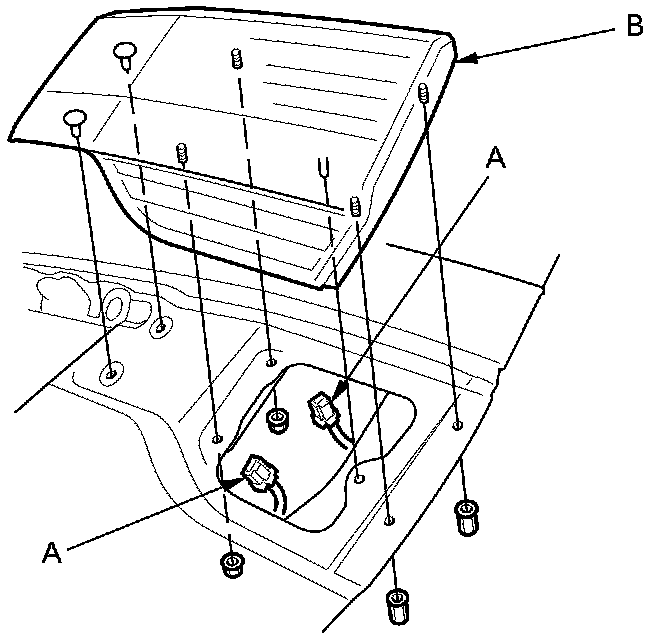

3. Disconnect the connectors (A) from the inner taillight (B).

'07 model

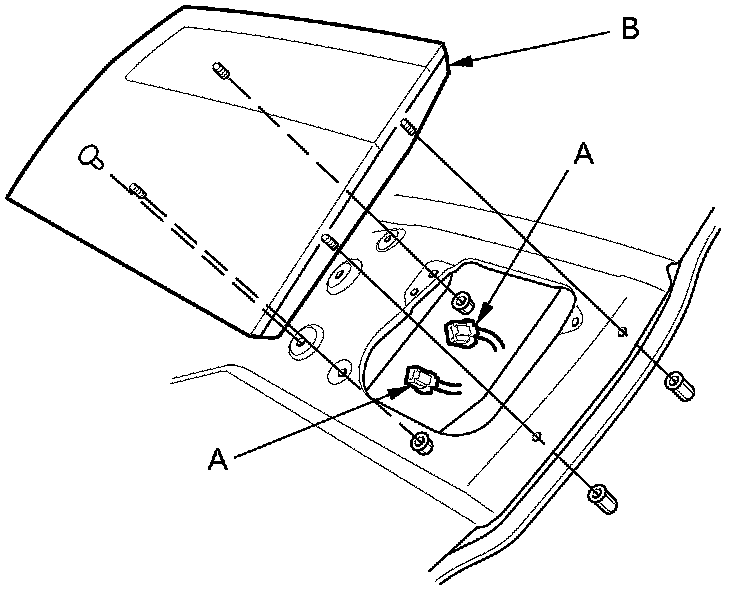

'08-10 models





4. Remove the four nuts and inner taillight.

5. Install the inner taillight in the reverse order of removal.
