Front Individual Map Light Test/Replacement (With Moonroof)

Front Individual Map Light Test/Replacement

EX, EX-L, and Touring models

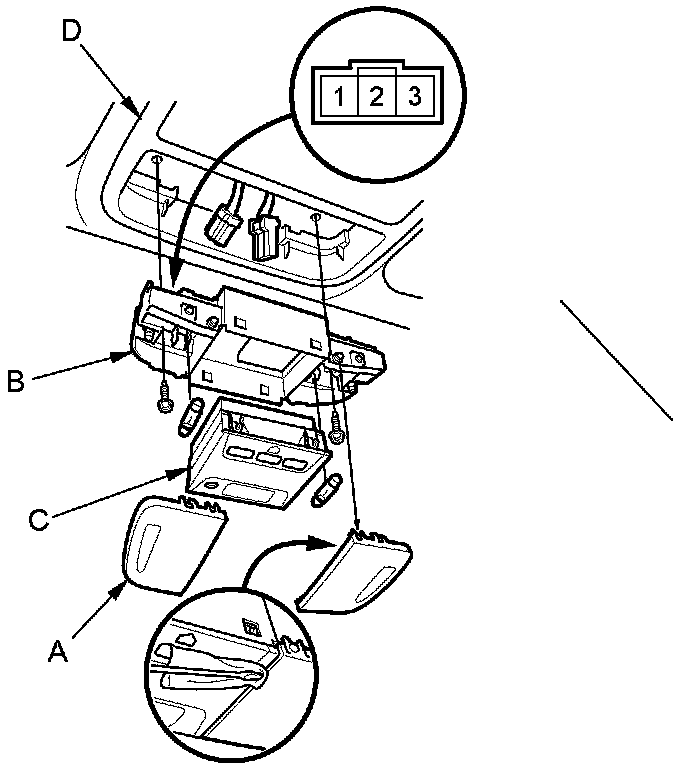

1. Carefully pry the lens (A) off with a small screwdriver.









2. Remove the screws, then remove the map light (B) and ambient light/HomeLink unit (C) from the roof console (D).

3. Disconnect the 3P connector from the map light and the 10P connector from the ambient light/HomeLink unit.

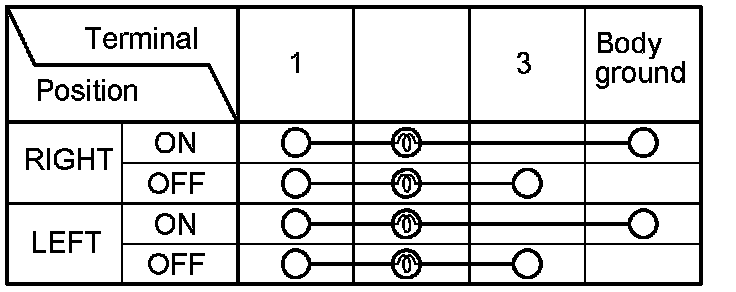

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the light.
