Front Individual Map Light Test/Replacement (Without Moonroof)

Front Individual Map Light Test/Replacement

VAN, DX, and LX models

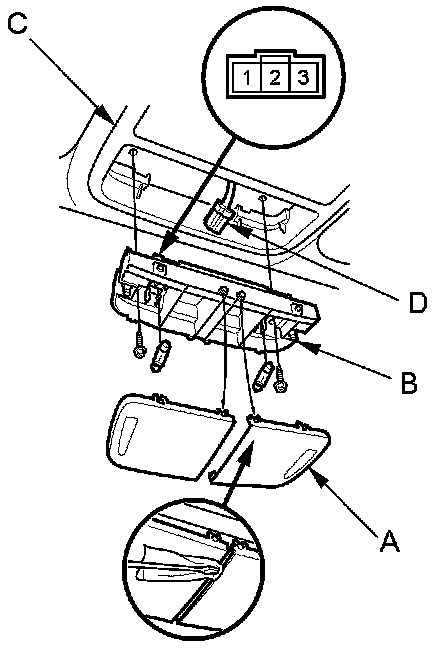

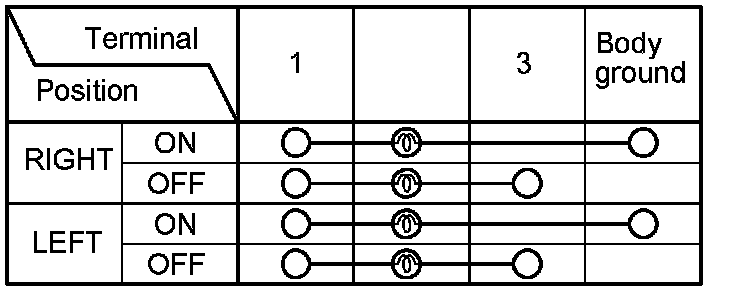

1. Carefully pry the lens (A) off with a small screwdriver.









2. Remove the screws, then remove the map light (B) from the roof console (C).

3. Disconnect the 3P connector (D) from the map light.

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the light.
