Ignition Key Light Test

Ignition Key Light Test

1. Remove the steering column upper and lower covers Steering Column Removal/Installation.

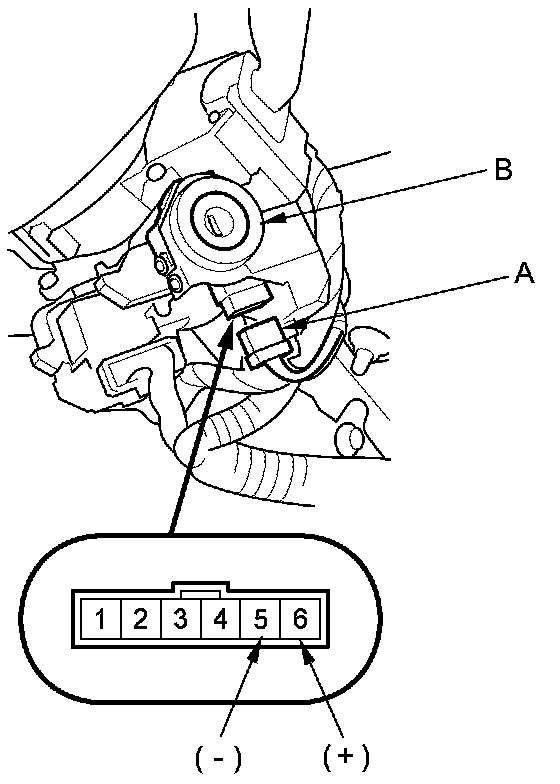

2. Disconnect the 6P connector (A).





3. The LED (B) should come on when power is connected to terminal No. 6 and ground is connected to terminal No. 5.

4. If the LED does not come on, replace the ignition key cylinder/steering lock assembly Service and Repair.
