Rear Individual Map Light Test/Replacement

Rear Individual Map Light Test/Replacement

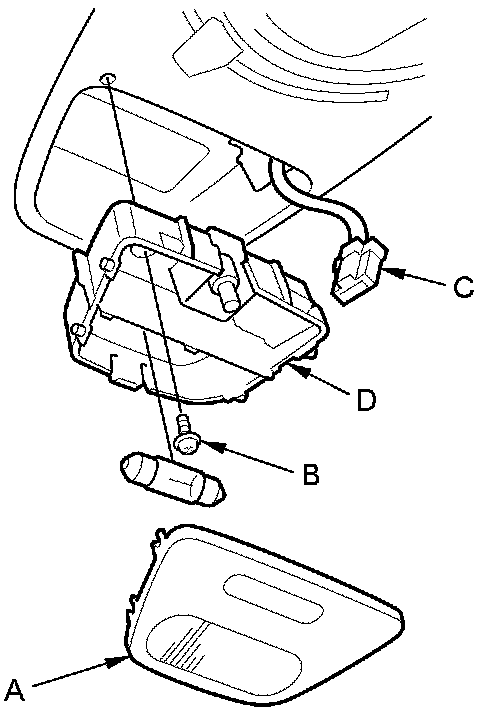

1. Carefully pry off the lens (A) with a small screwdriver.









2. Remove the mounting screw (B).

3. Disconnect the 3P connector (C) from the housing (D).

4. Check for continuity between the terminals.

- There should be continuity between terminals No. 2 and No. 3 with the switch ON.
- There should be continuity between terminals No. 1 and No. 2 with the switch OFF.

5. If the continuity is not as specified, check the bulb. If the bulb are OK, replace the light.
