Turn Signal Bulb: Service and Repair

Front Turn Signal Lights Bulb Replacement

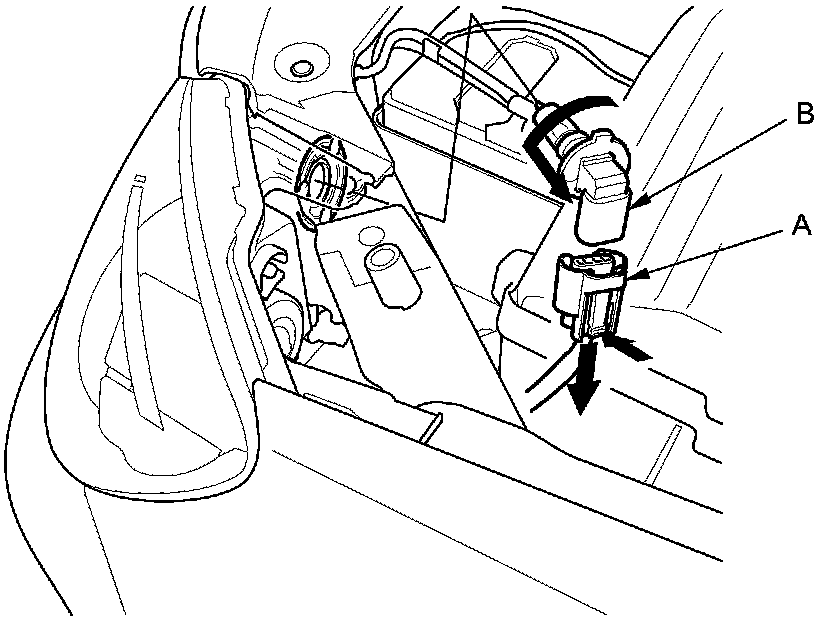

Headlight (Low Beam)

1. Disconnect the 2P connector (A) from the headlight.









2. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

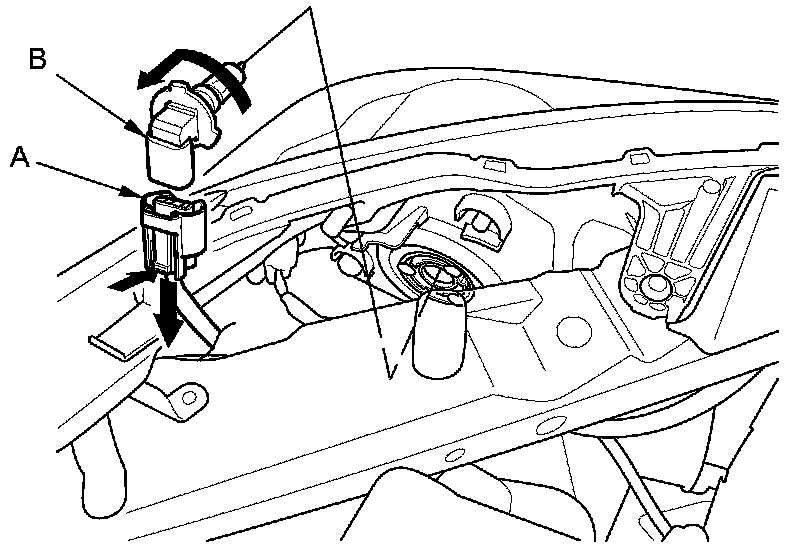

Headlight (High Beam)

1. Disconnect the 2P connector (A) from the headlight.









2. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

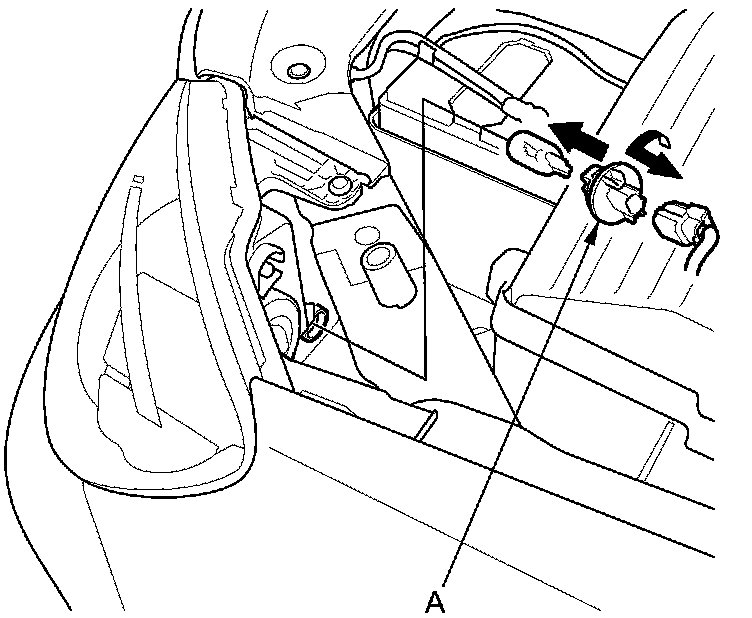

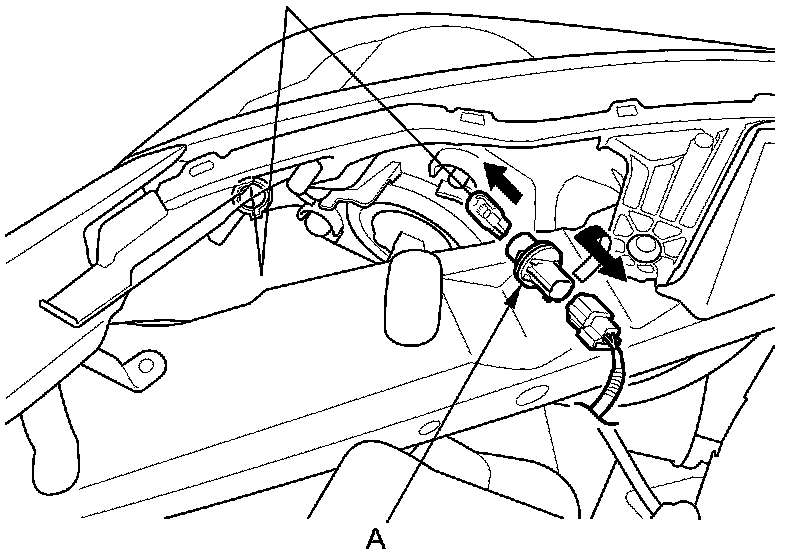

Front Turn Signal Light

1. Turn the bulb socket (A) 45 ° counterclockwise to remove it from the headlight housing.









2. Install a new bulb in the reverse order of removal.

Front Parking Light

1. Turn the bulb socket (A) 45 ° counterclockwise to remove it from the headlight housing.









2. Install a new bulb in the reverse order of removal.

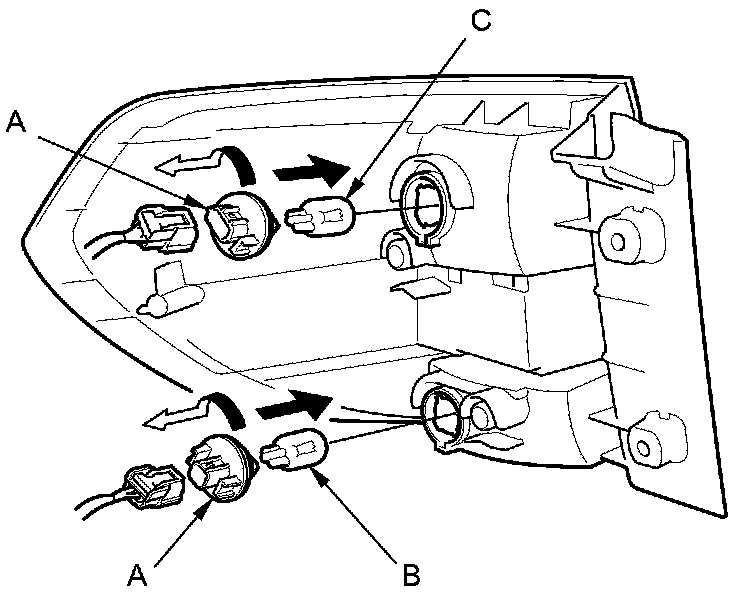

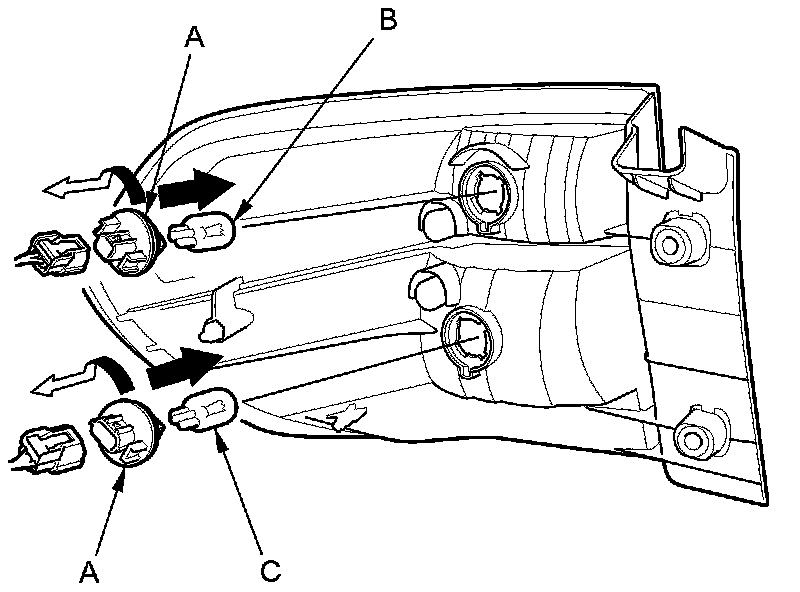

Brake Light/Turn Signal/Outer Taillight

1. Remove the taillight assembly. Service and Repair

2. Turn the bulb sockets (A) 45 ° counterclockwise to remove it from the housing.






'07 model





'08-10 models





3. Install a new bulb in the reverse order of removal.

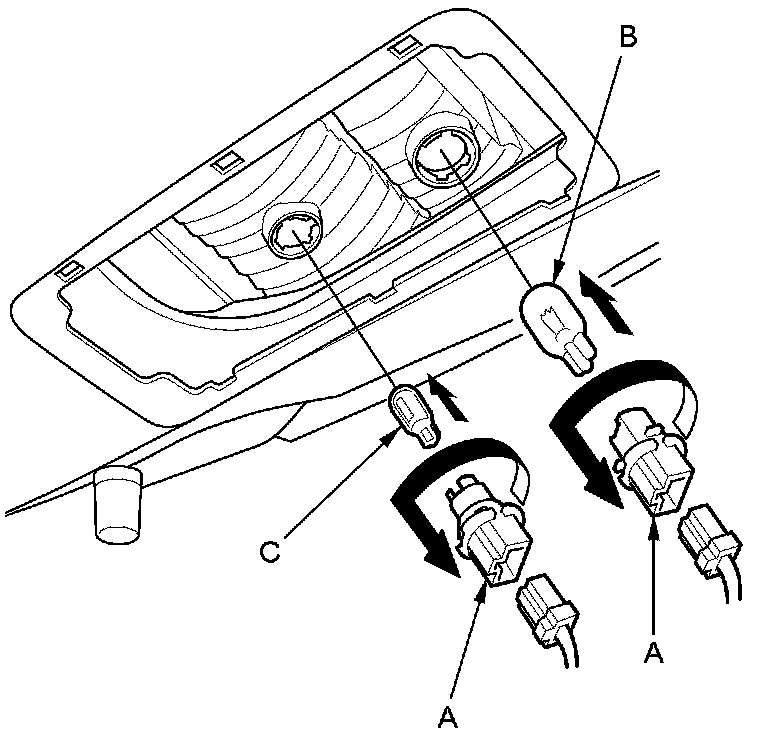

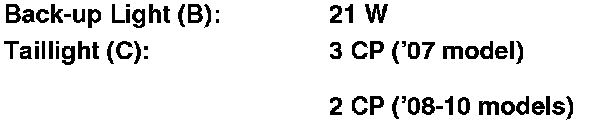

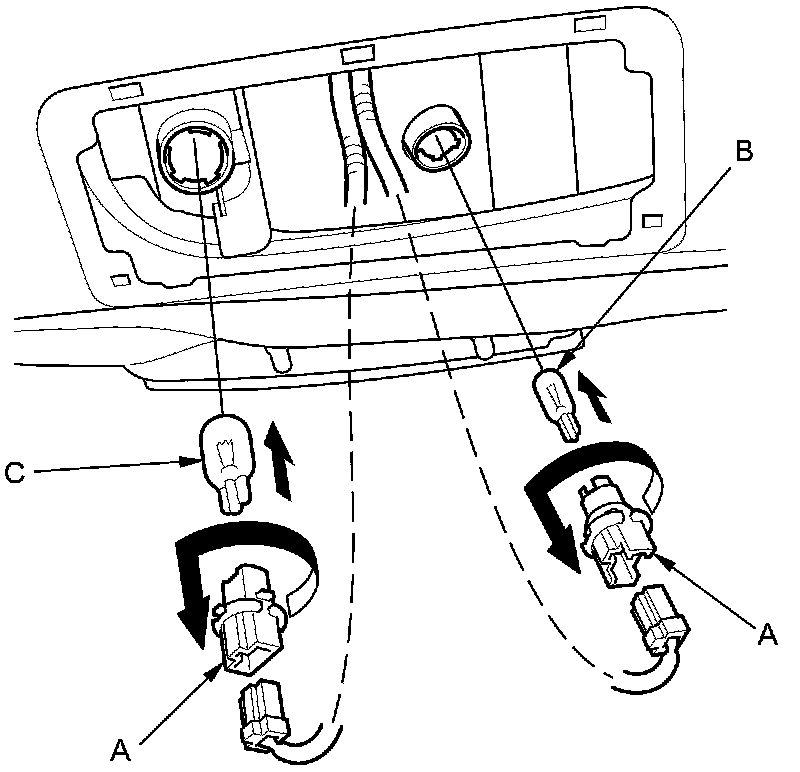

Back-up Light/Inner Taillight

1. Open the tailgate and remove the tailgate lid panel.

2. Turn the bulb sockets (A) 45 ° counterclockwise to remove it from the housing.






'07 model





'08-10 models





3. Install a new bulb in the reverse order of removal.
