Dashboard Wire Harness (Center Console Branch) Connector and Harness Locations (VAN, DX, and LX Models)

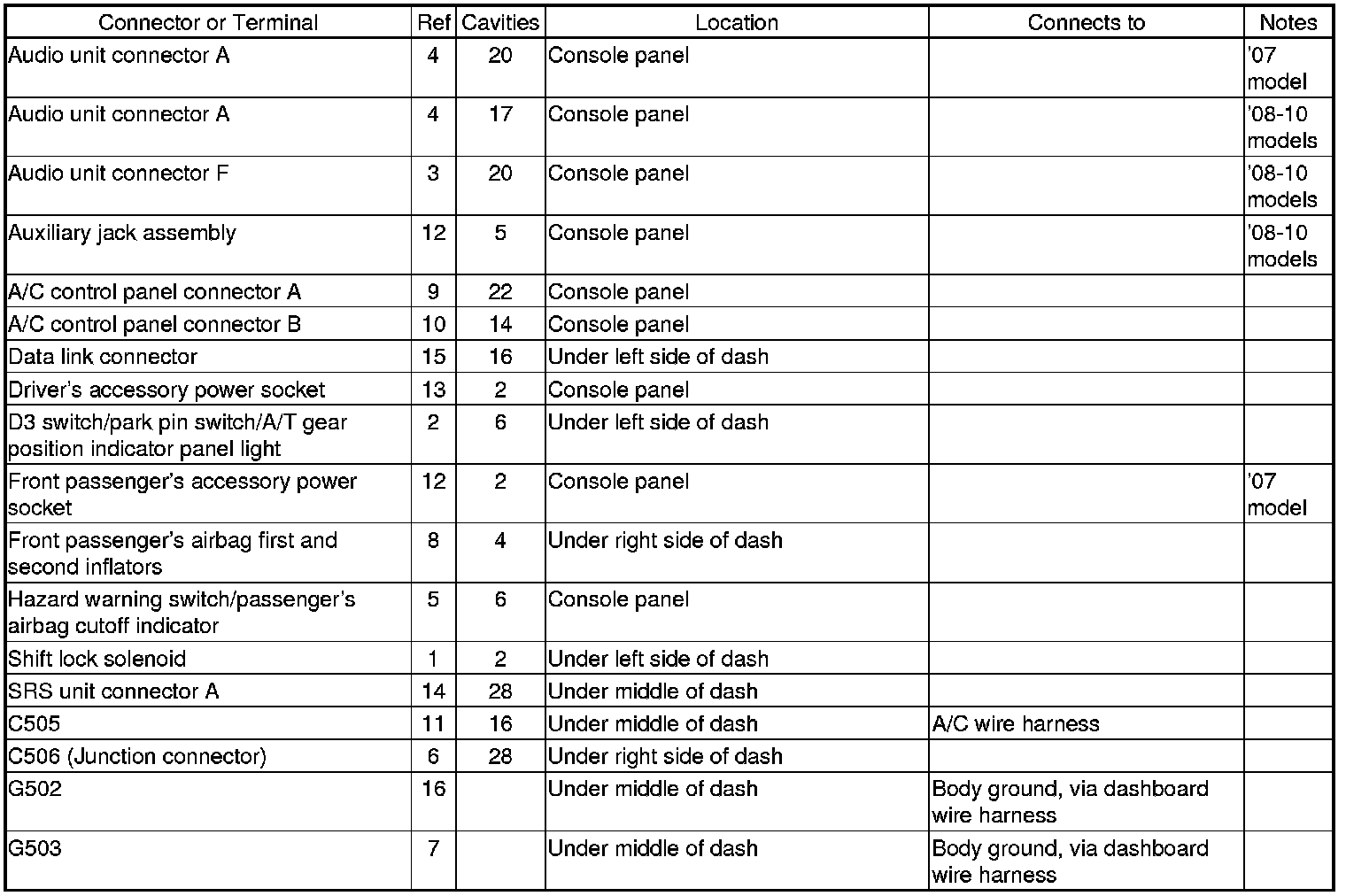

Connector and Harness Locations


Dashboard Wire Harness (VAN, DX, and LX models) (Center console branch)

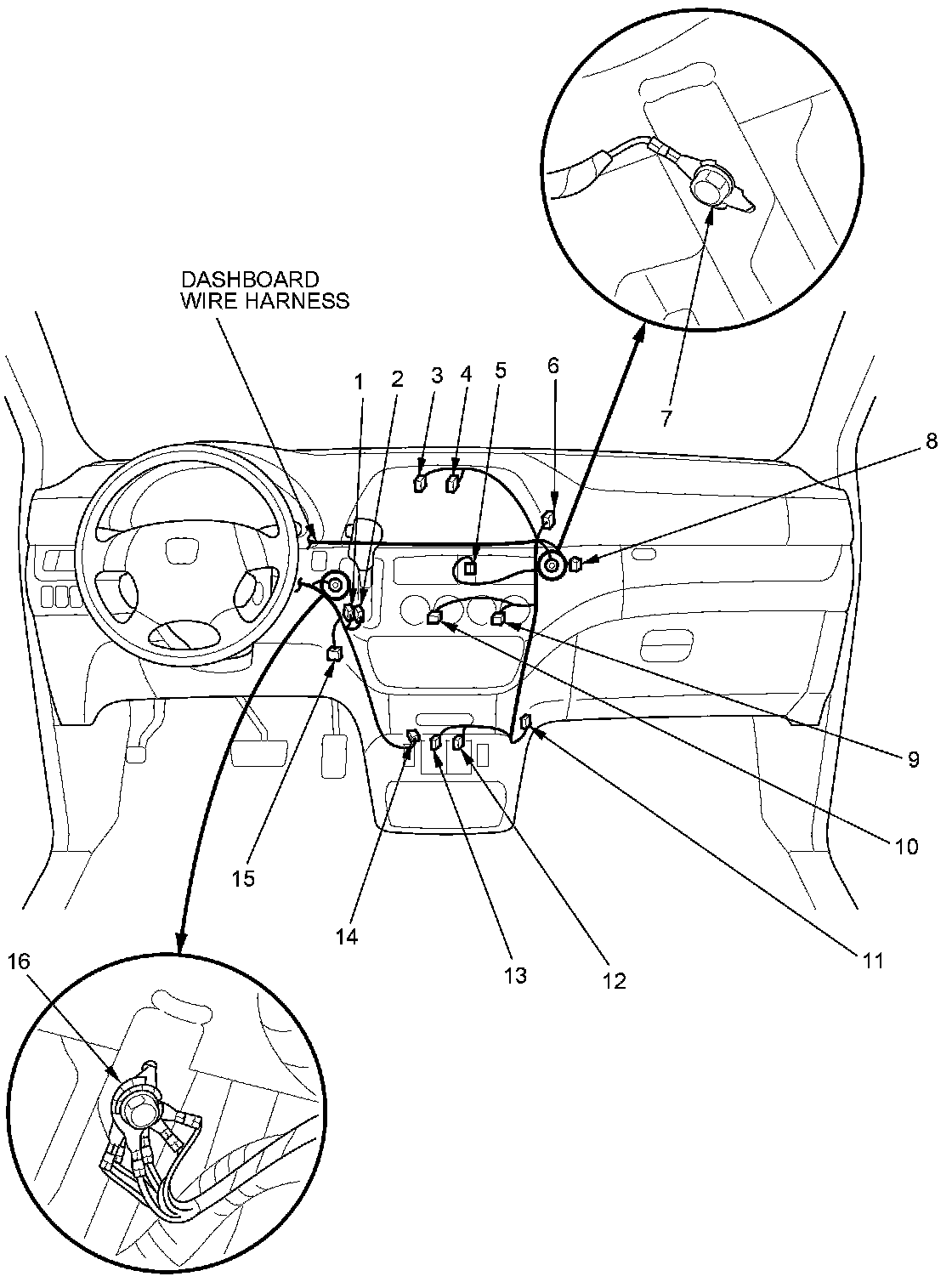

Harness View
