Drivers Seat Wire Harness and Subharness Connector and Harness Locations




Connector and Harness Locations

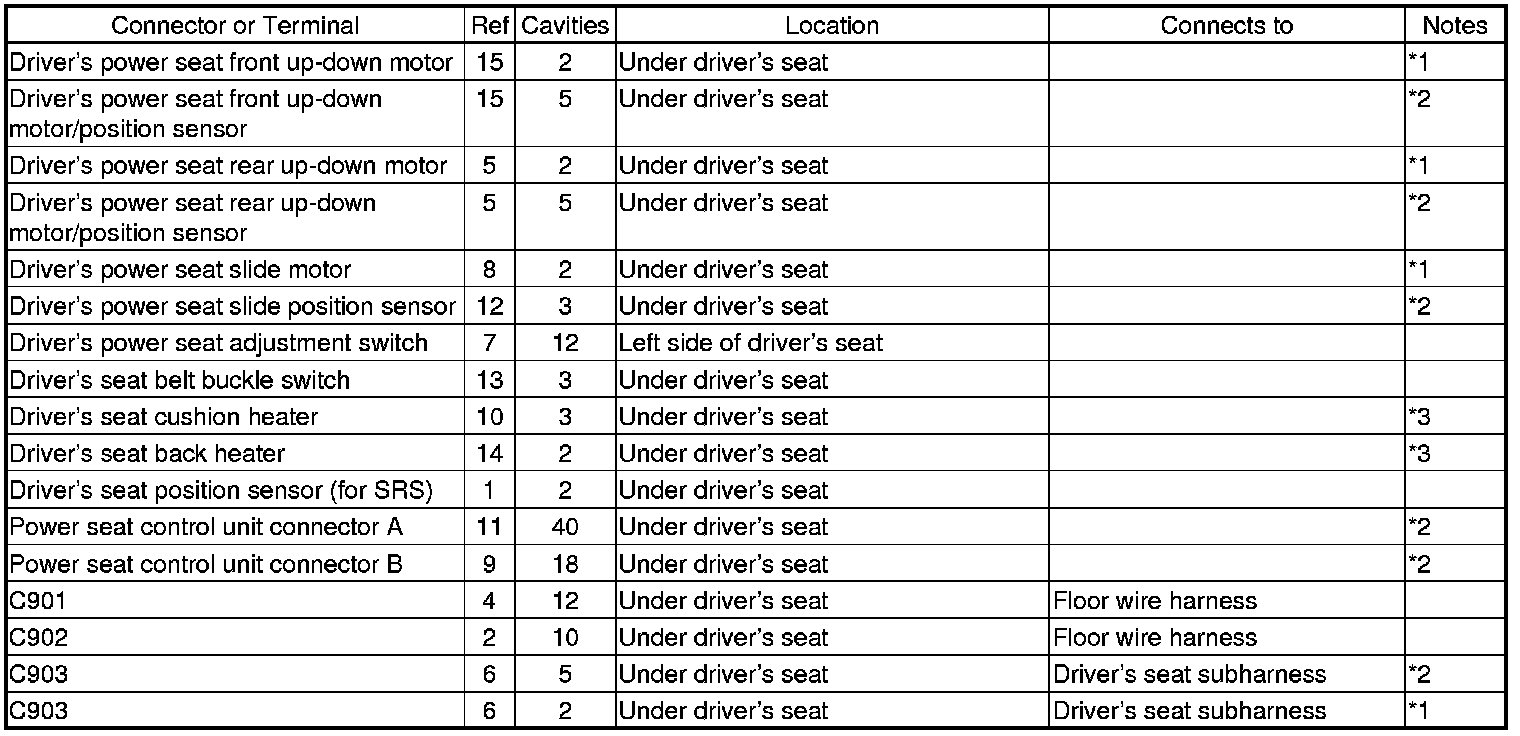

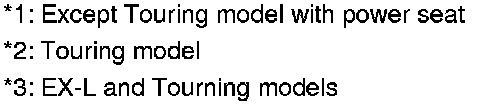

Driver's Seat Wire Harness ('08-10 models with driver's power seat)

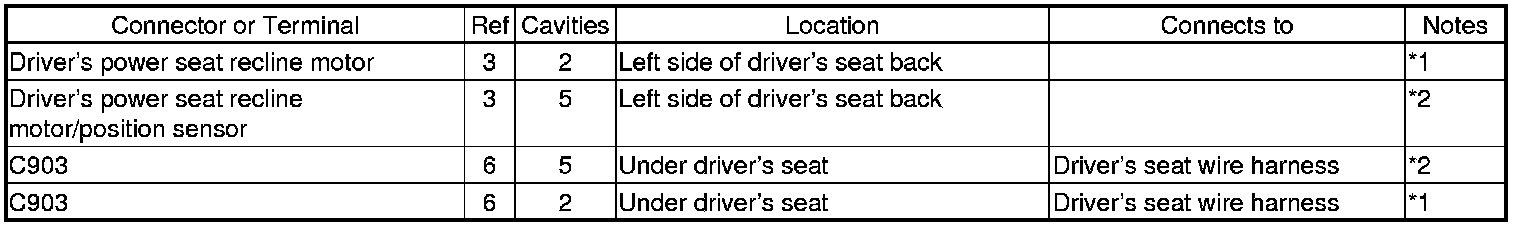

Driver's Seat Subharness ('08-10 models with driver's power seat)

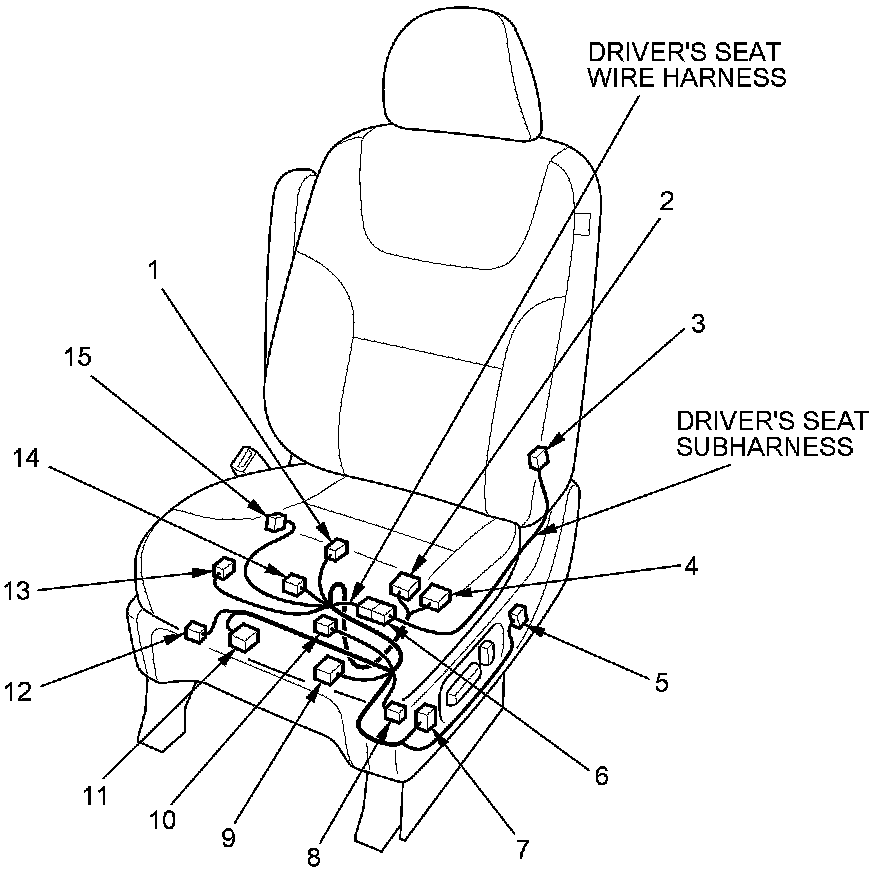

Harness View
