Home >> Honda Truck >> 2010 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Locations >> Harness Locations >> Front Engine Compartment Wire Harness And Front ACM Actuator Sub-Harness Connector And Harness Locations

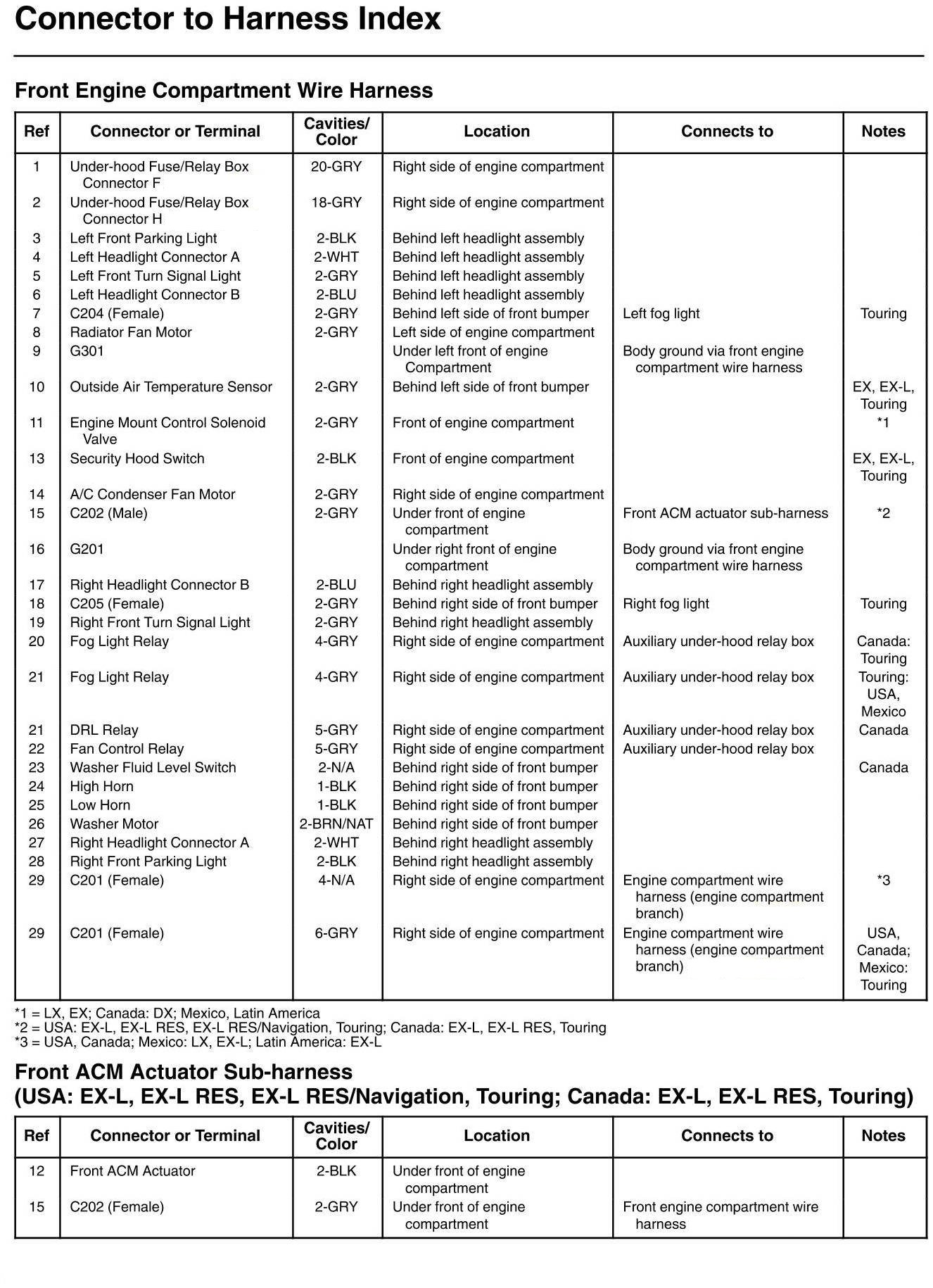

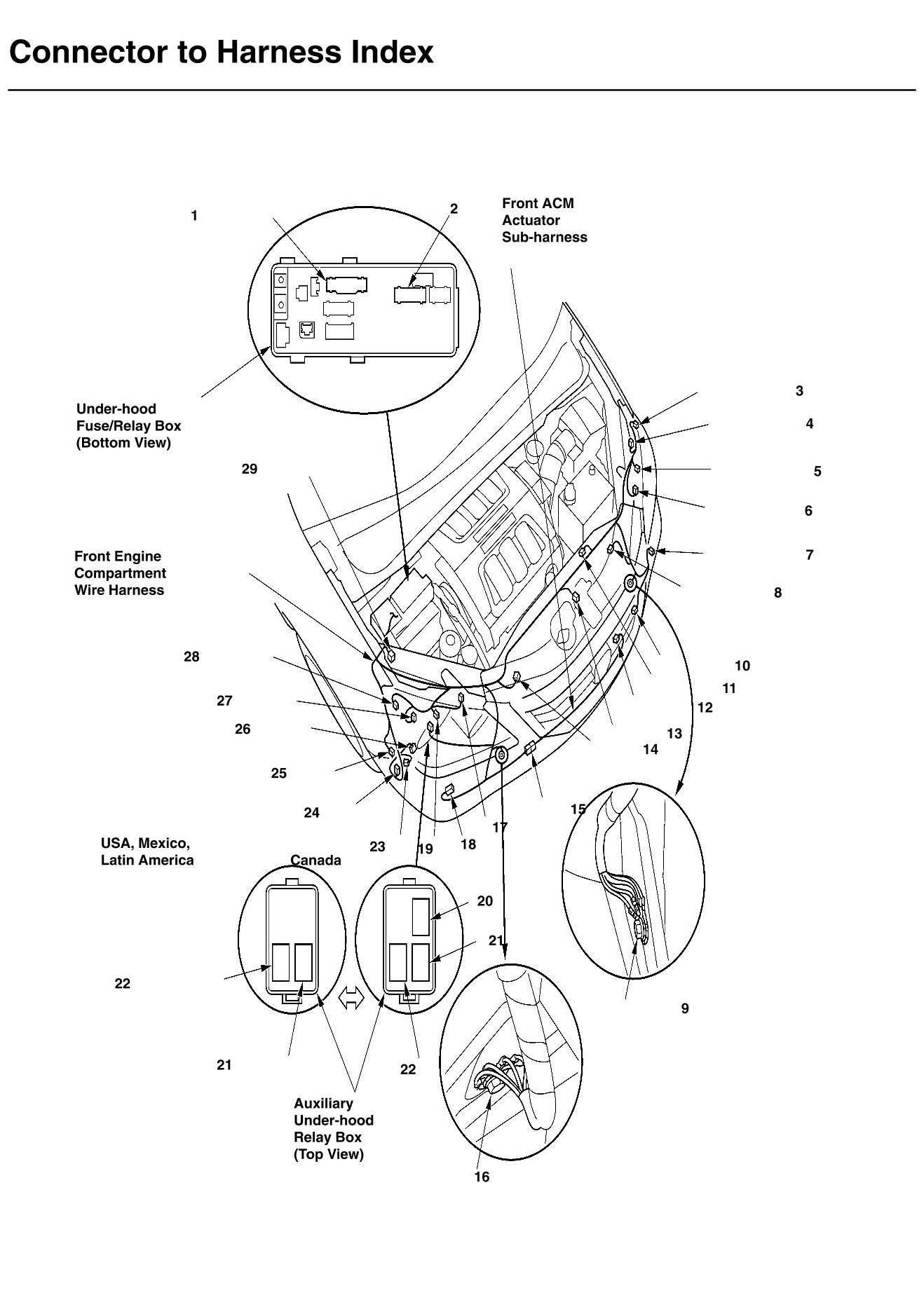

Front Engine Compartment Wire Harness And Front ACM Actuator Sub-Harness Connector And Harness Locations
