Roof (With Moonroof), Left Side Curtain Airbag, Rearview Mirror (Touring, EX-L With Navigation), ANC Microphone Harnesses

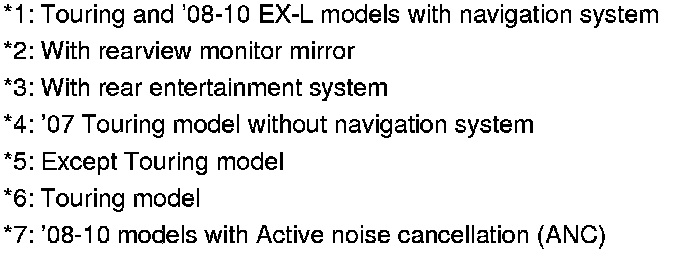

Connector and Harness Locations

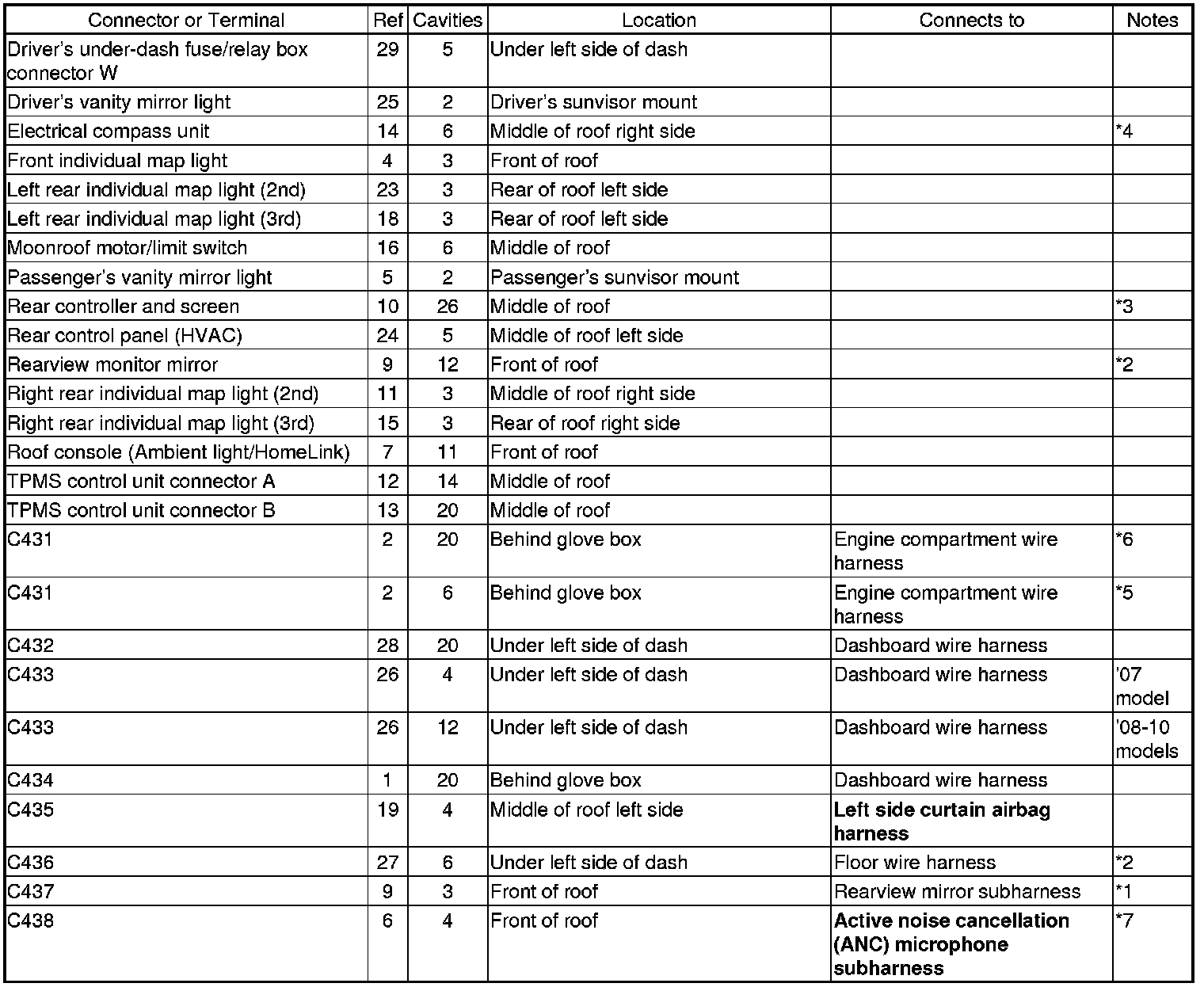

Roof Wire Harness (With moonroof)

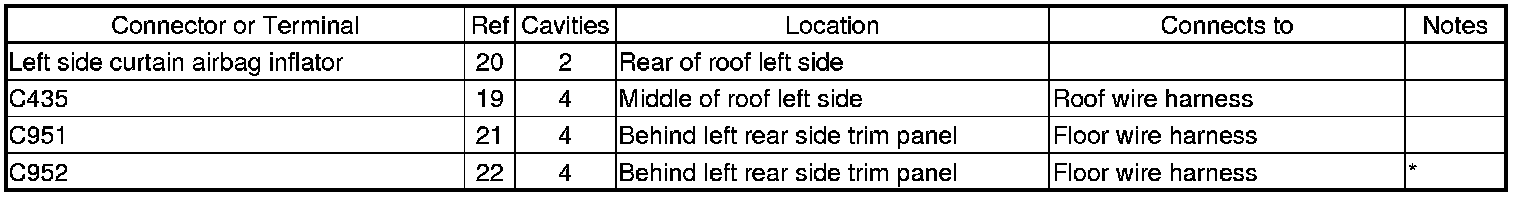

Left Side Curtain Airbag Harness

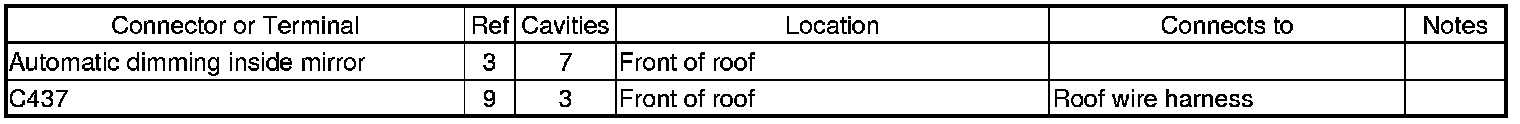

Rearview Mirror Subharness (Touring and '08-10 EX-L models with navigation system)

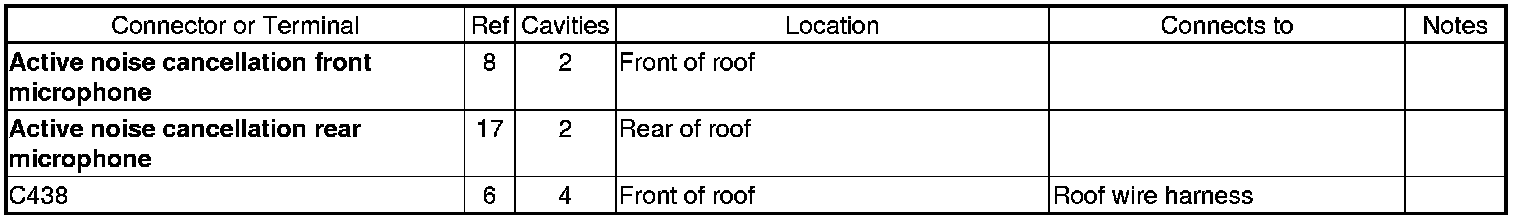

Active Noise Cancellation (ANC) Microphone Subharness ('08-10 models with ANC)

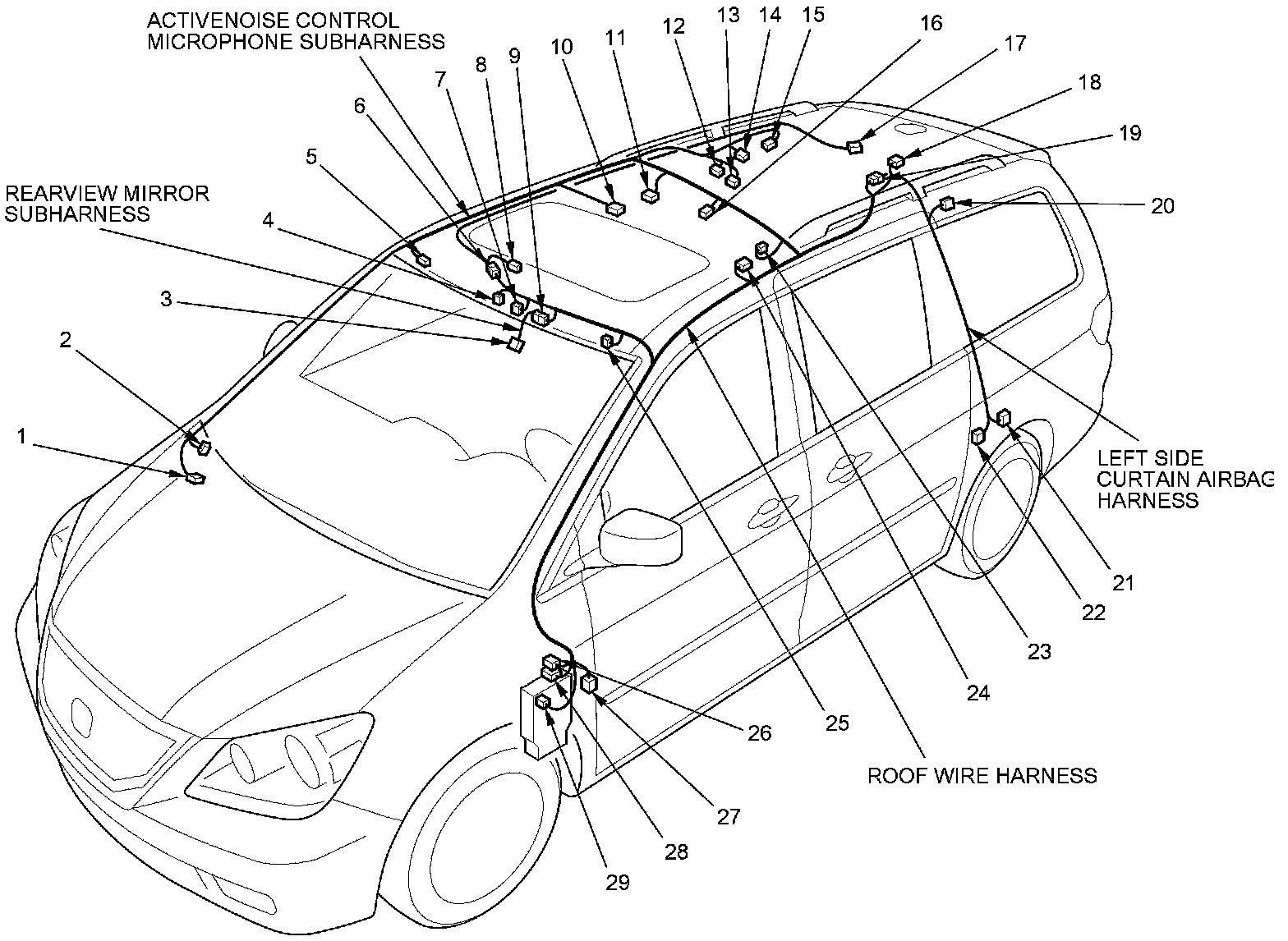

Harness View
