Shift Solenoid Wire Harness, CKP and Knock Sensor Subharnesses (J35A6 Engine)




Connector and Harness Locations

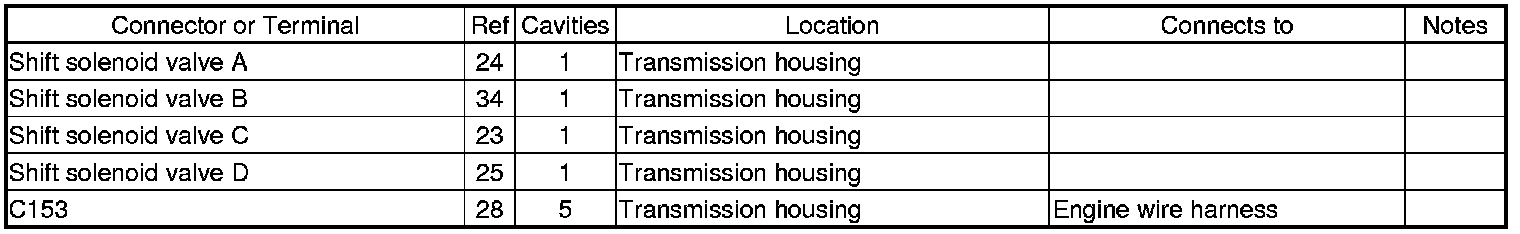

Shift Solenoid Wire Harness ('08-10 models: J35A6 engine)

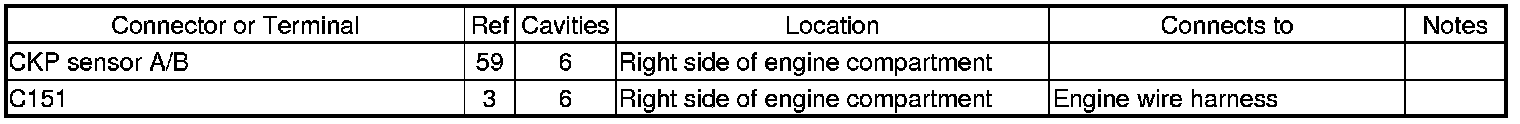

CKP Sensor A/B Subharness ('08-10 models: J35A6 engine)

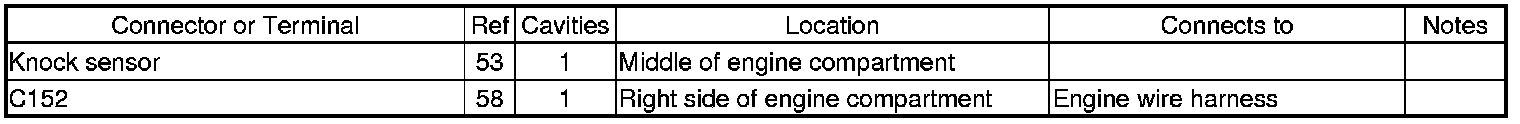

Knock Sensor Subharness ('08-10 models: J35A6 engine)

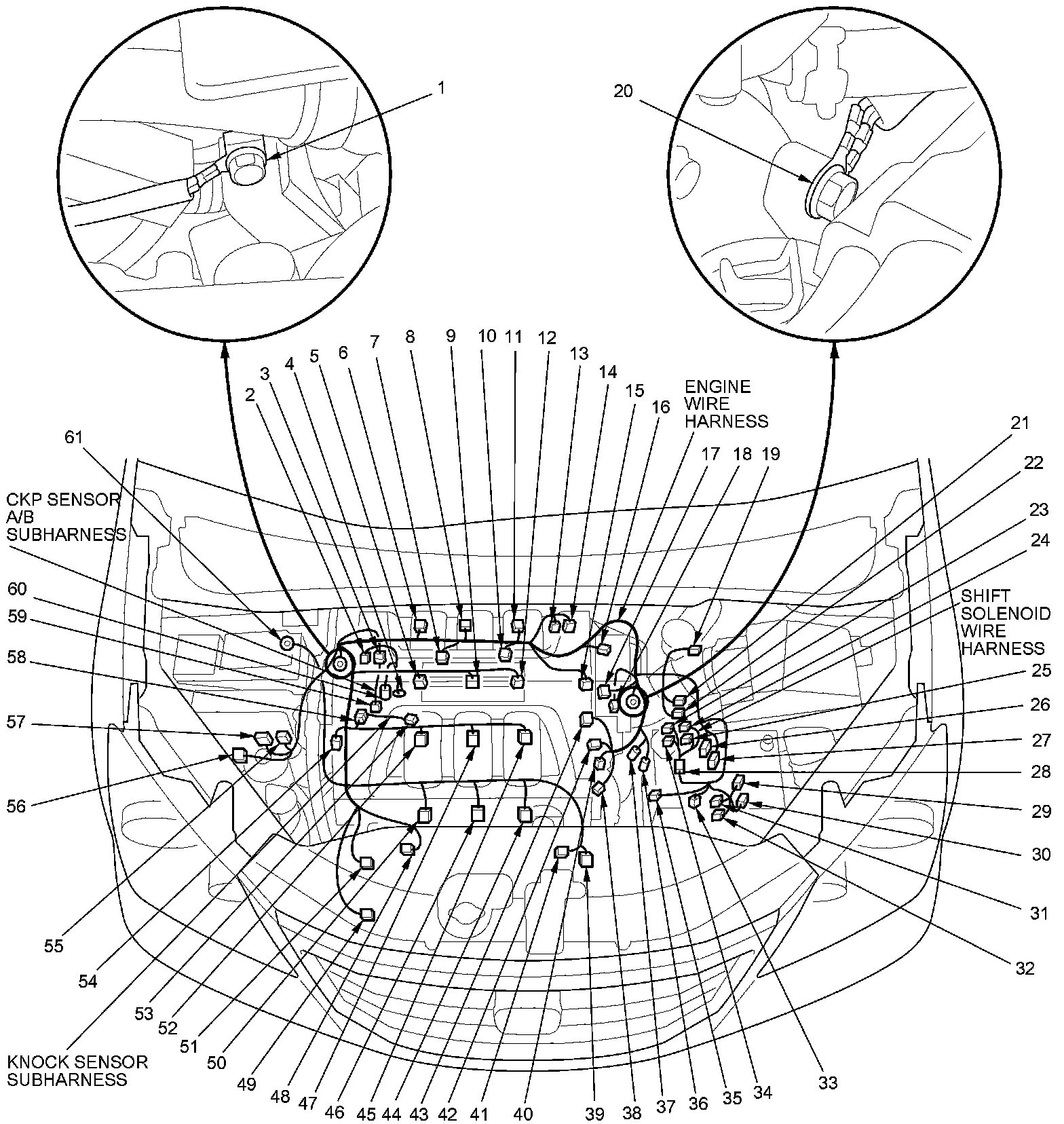

Harness View
