Starter, Alternator +B, Battery Ground, and Engine Ground Cables Connector and Harness Locations




Connector and Harness Locations

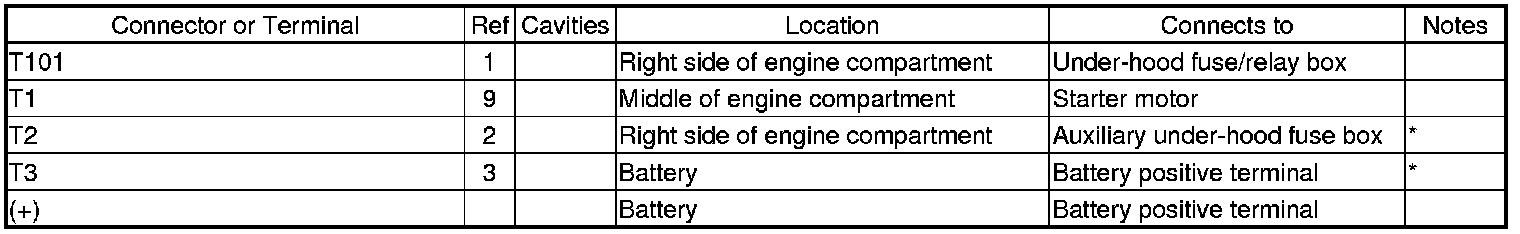

Starter Cable

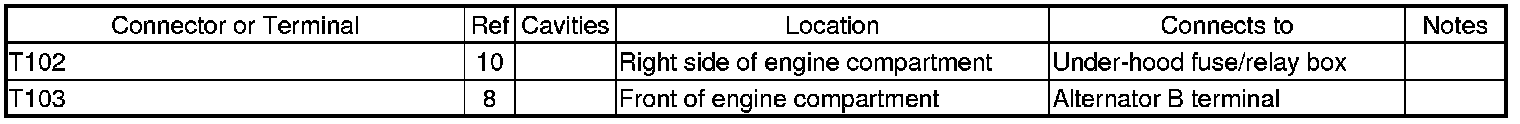

Alternator +B Cable ('07 model)

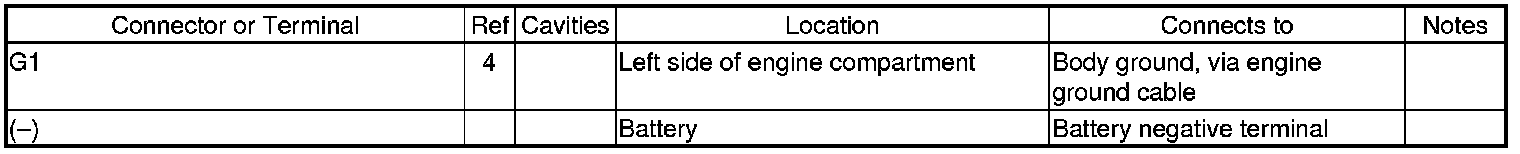

Battery Ground Cable

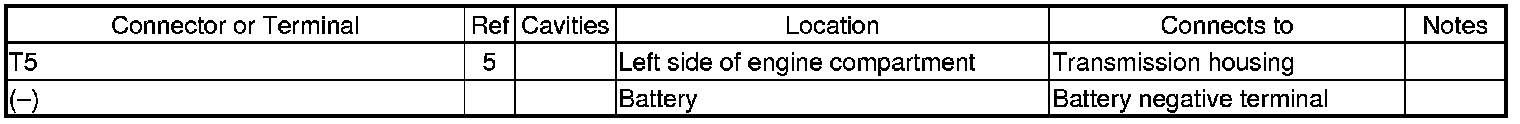

Engine Ground Cable A

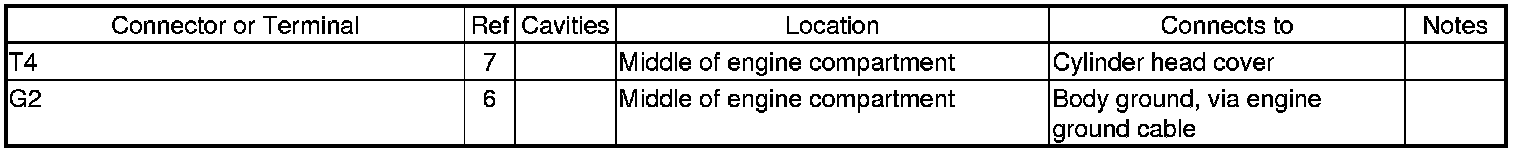

Engine Ground Cable B

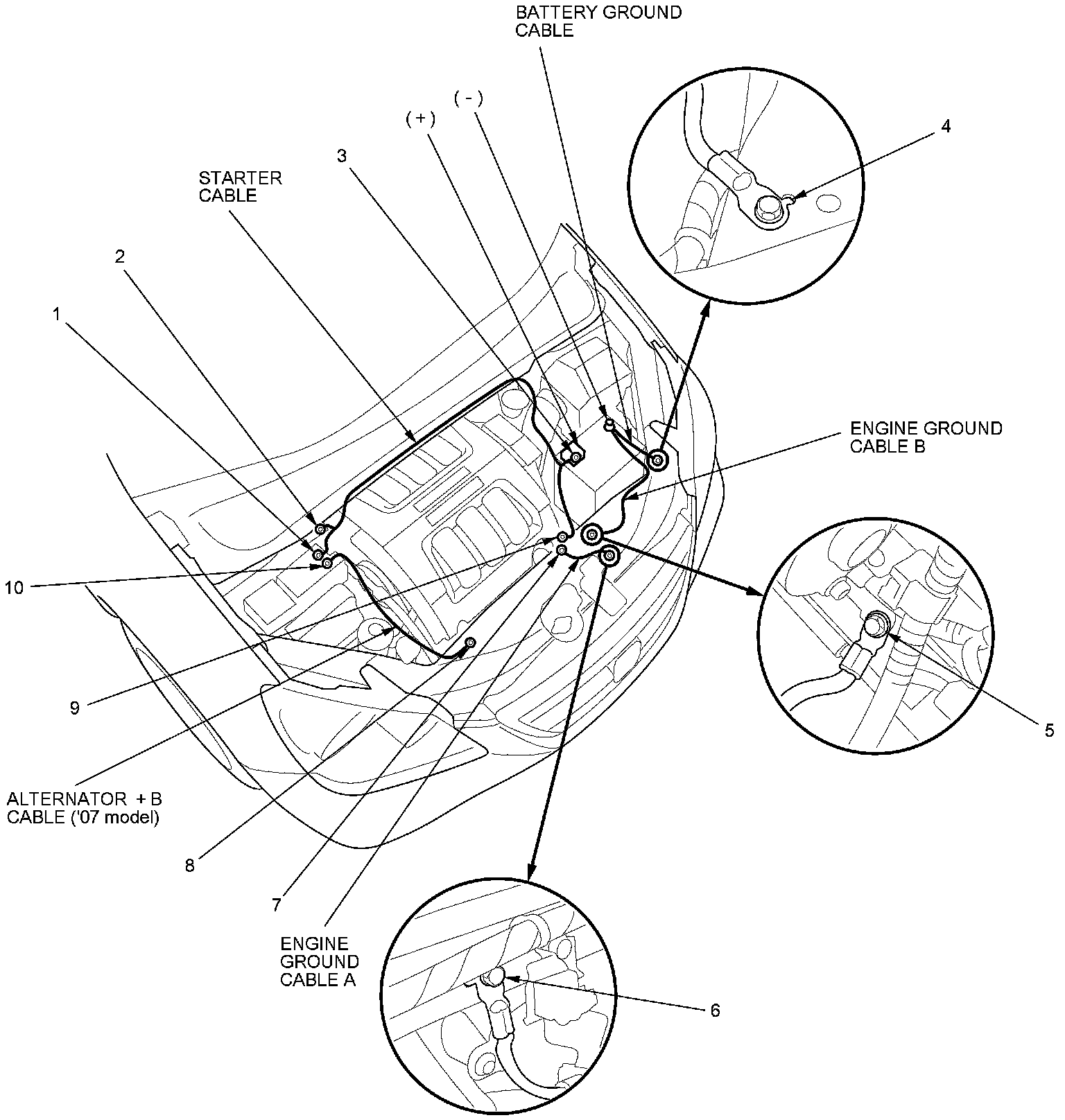

Harness View
