Drive Belt Inspection (J35A6)

Drive Belt Inspection

J35A6 engine

1. Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it Drive Belt Replacement (J35A6).

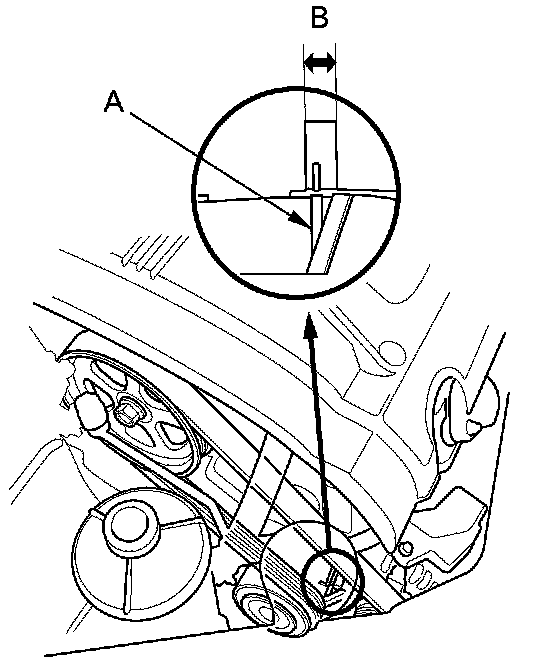

2. Check that the position of the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt Drive Belt Replacement (J35A6).
