AC Inverter Unit Input Test

AC Inverter Unit Input Test

Touring and '08-10 EX-L models (with rear entertainment)

1. Do the battery terminal disconnection procedure Procedures.

2. Remove the left rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

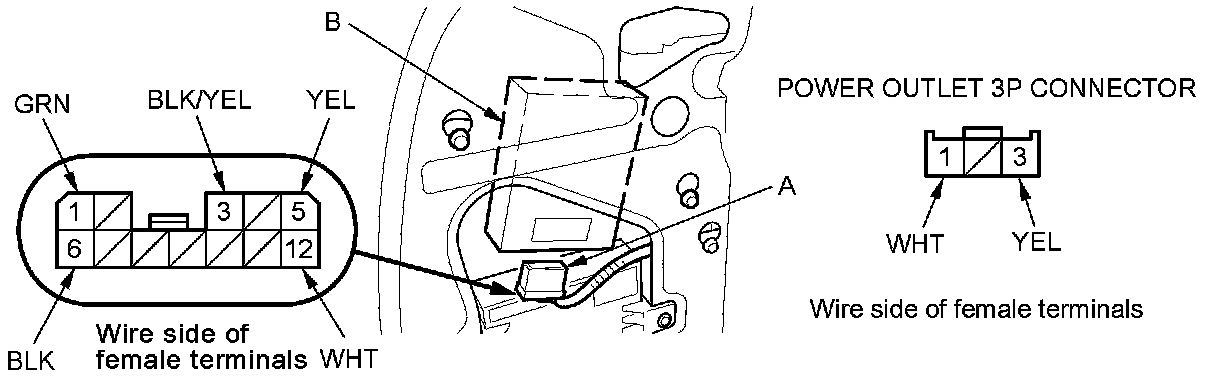

3. Disconnect the 12P connector (A) from the AC inverter unit (B).





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

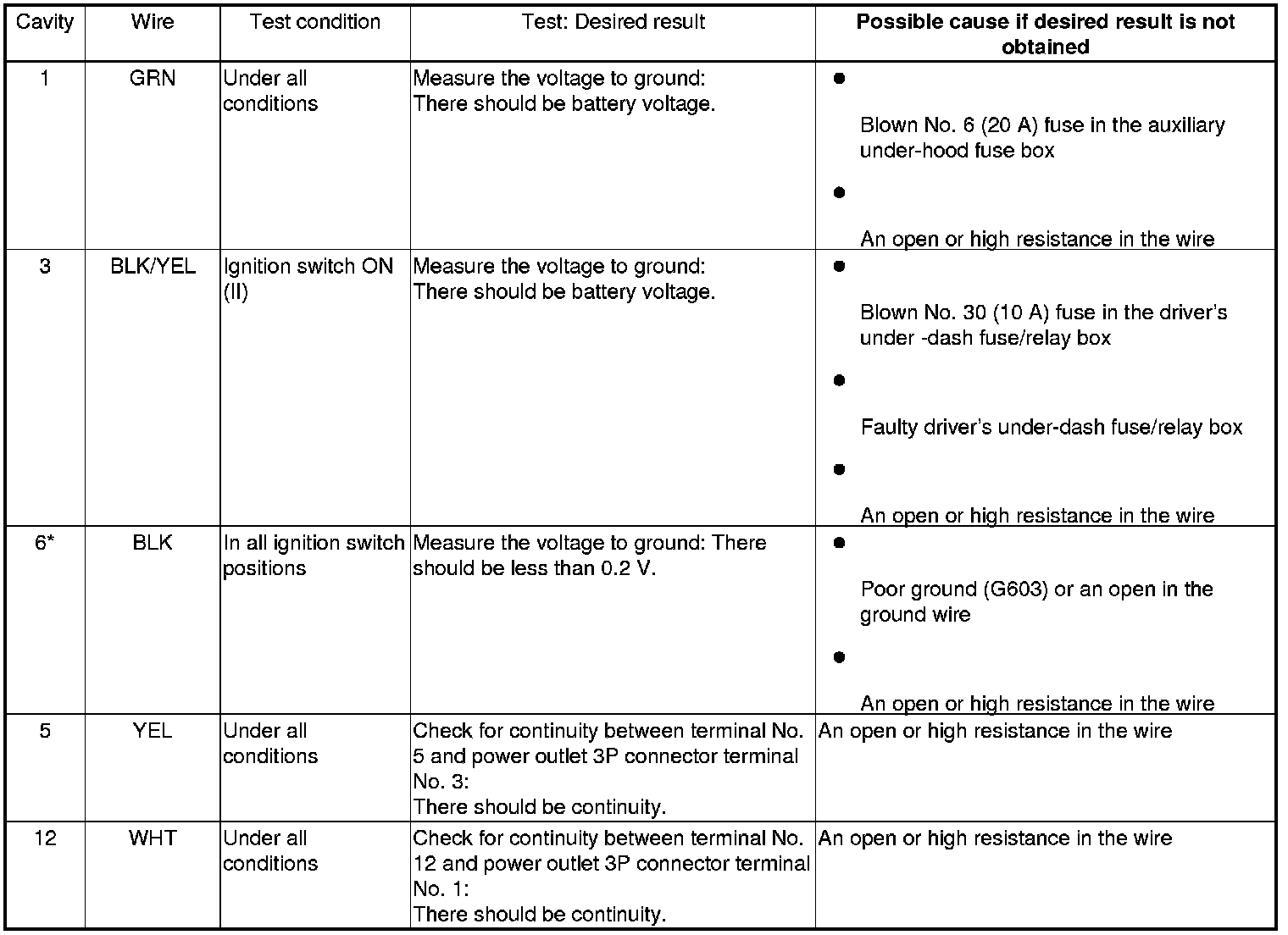

5. With the control unit still disconnected, do these input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace the AC inverter unit, then go to step 6.









6. Do the battery terminal reconnection procedure Procedures.
