Gauge Control Module DTC Display

Gauge Control Module DTC Display

How to display DTCs on the gauge control module

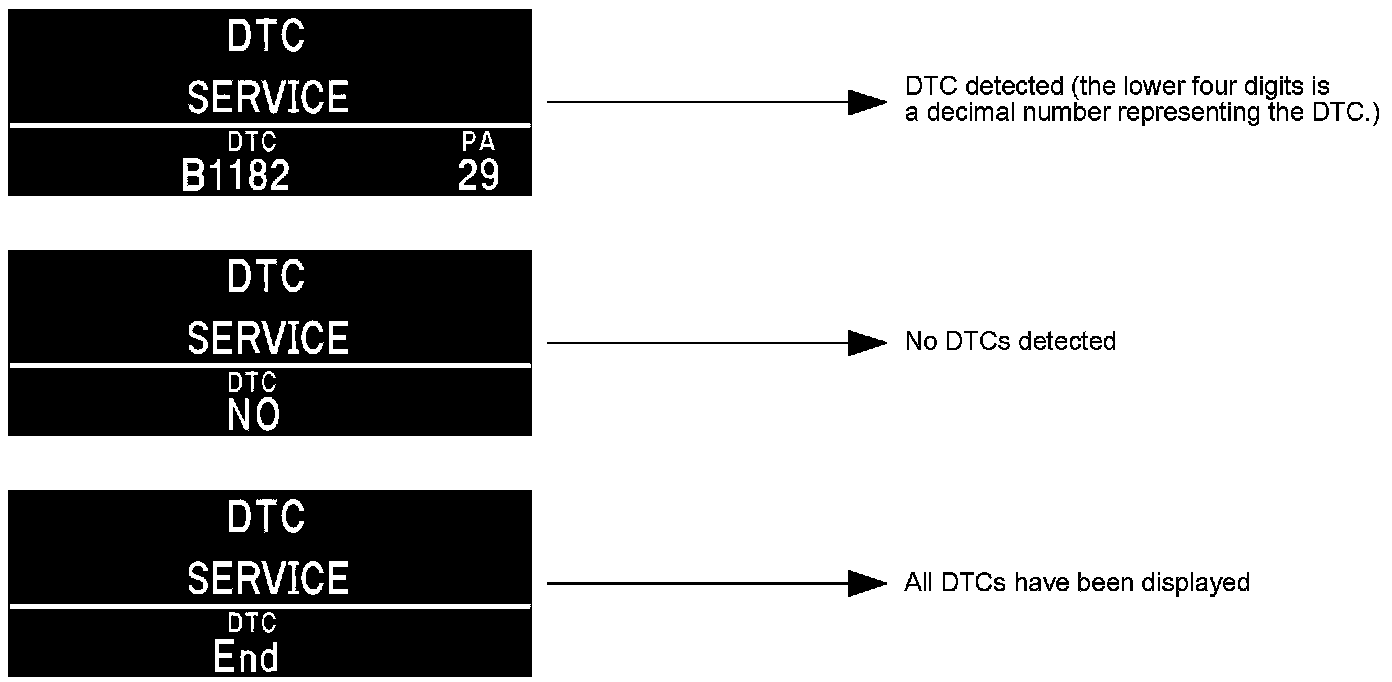

While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller Area Network) units, will be shown one by one on the multi-information display when the communication between the Multiplex Integrated Control Unit (MICU) and the gauge control module are normal. To scroll through the DTCs, press the select/reset knob on the gauge control module.

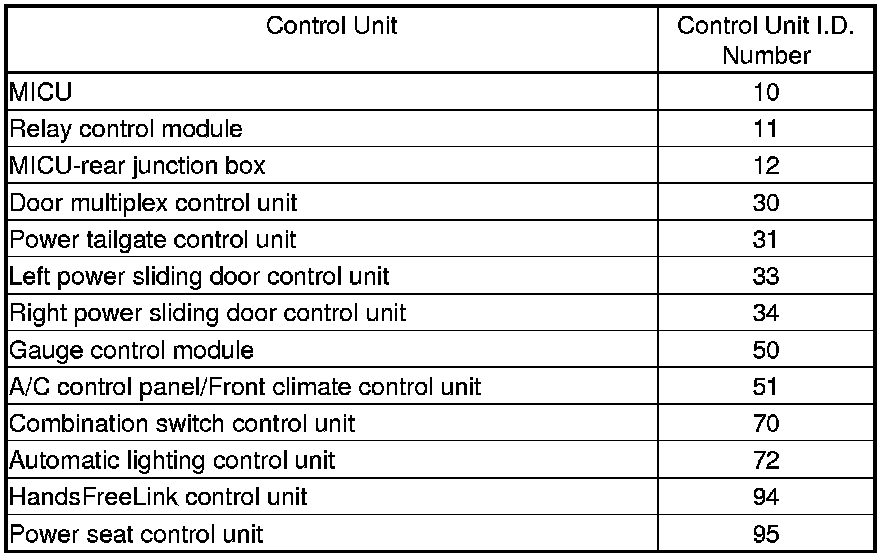

The unit that has been stored the code can be identified by the number shown on the multi-information display.






How to clear the DTC

While in Test Mode 1, press and hold down the SELECT/RESET knob for at least 13 seconds.
