Rocker Arm Oil Pressure Sensor Removal/Installation (J35A7 Engine)

Rocker Arm Oil Pressure Sensor Removal/Installation

1. Remove the engine cover Engine Removal.

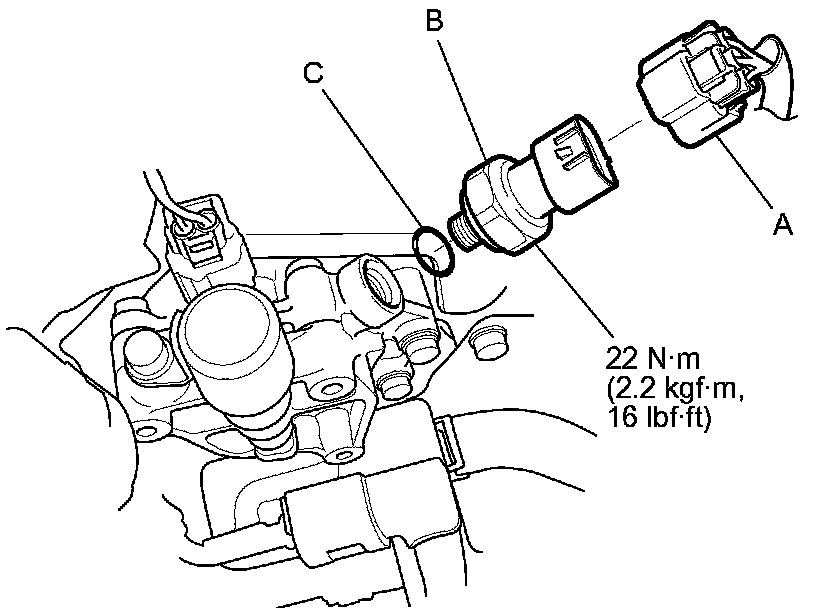

2. Disconnect the rocker arm oil pressure sensor 3P connector (A).





3. Remove the rocker arm oil pressure sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
