Refueling Vapor Cut Valve: Service and Repair

EVAP Vent Shut Float Replacement

1. Raise the vehicle on a lift.

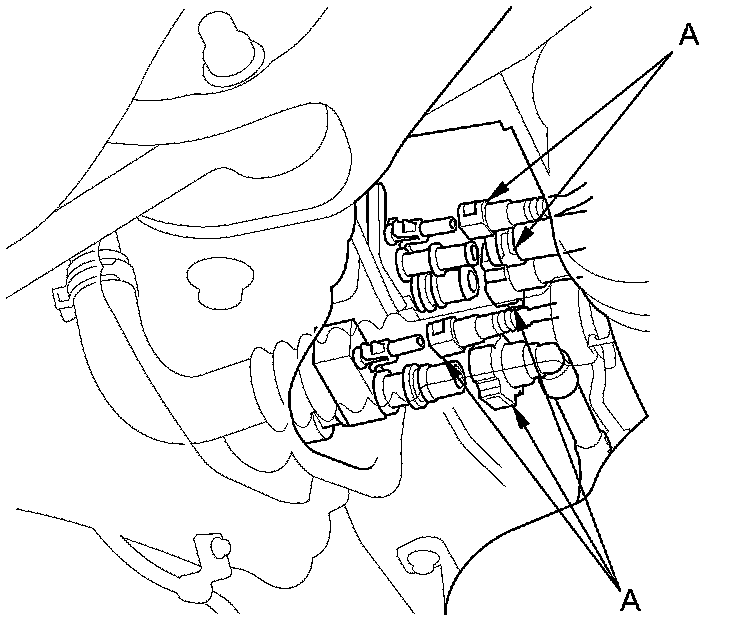

2. Disconnect the fuel vapor hoses (A).





3. Remove the left rear wheel.

4. Remove the fuel pipe cover.

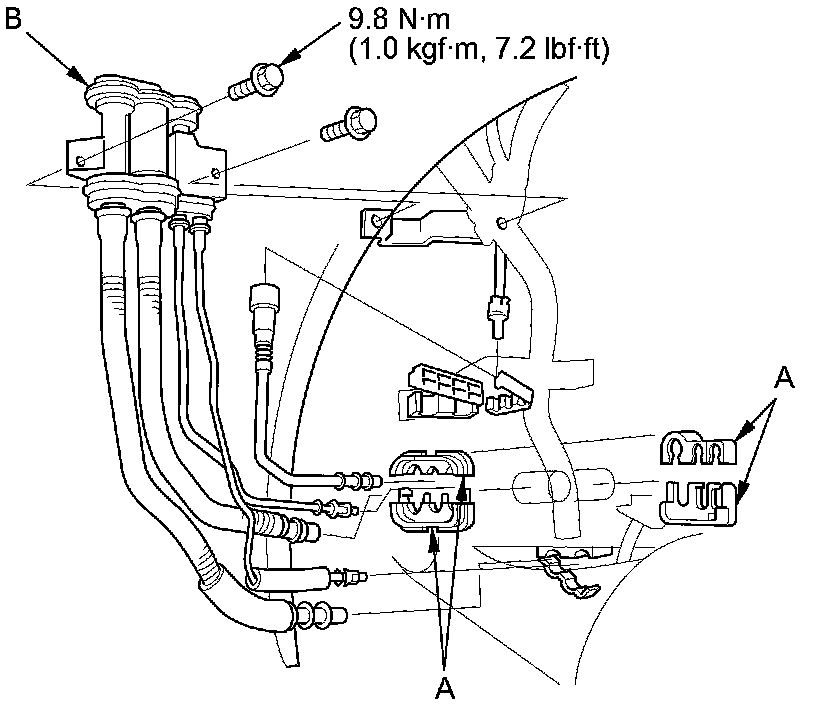

5. Remove the fuel line clips (A).





6. Remove the EVAP vent shut float (B).

7. Install the parts in the reverse order of removal.
