PCV Valve Replacement (J35A7)

PCV Valve Replacement

J35A7 engine ('08-10 models)

1. Remove the engine cover Engine Removal.

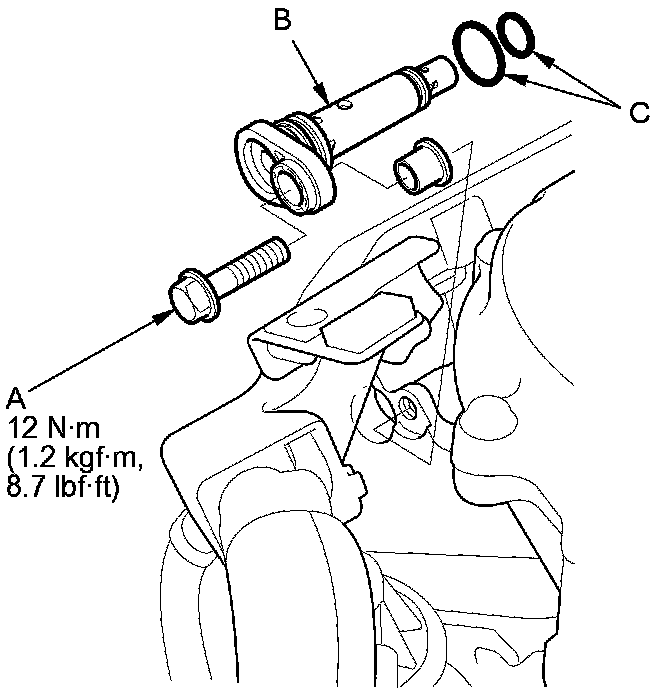

2. Remove the bolt (A).

NOTE: Do not spill oil on the hot exhaust manifold.





3. Remove the PCV valve (B).

4. Install the parts in the reverse order of removal.

NOTE:

- When installing a new PCV valve, make sure the O-rings (C) are in place.
- When installing a used PCV valve, use new O-rings.
