Resonator: Service and Repair

Intake Air Resonator Removal/Installation

'08-10 models

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner Service and Repair.

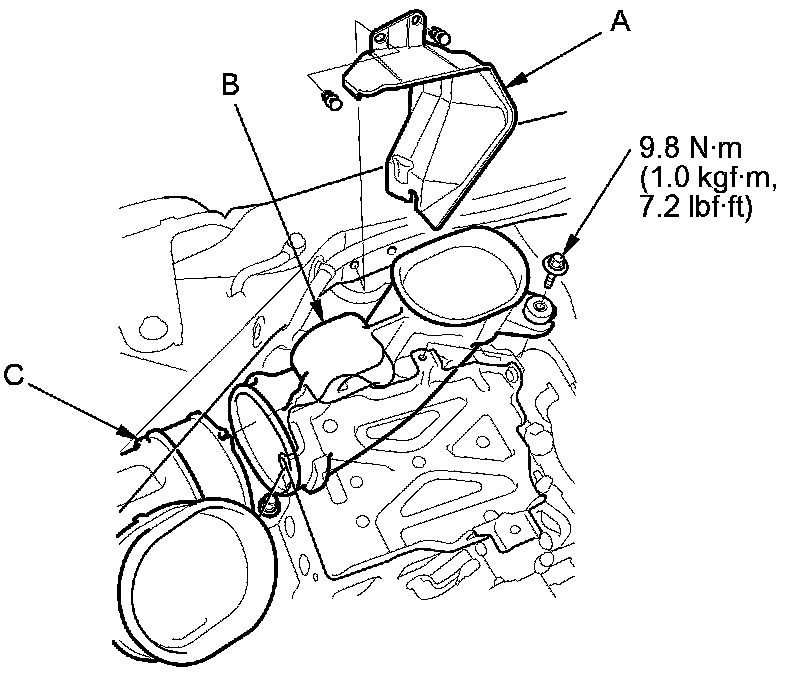

3. Remove the cover (A), and disconnect the intake air duct (B) from the intake air resonator (C).

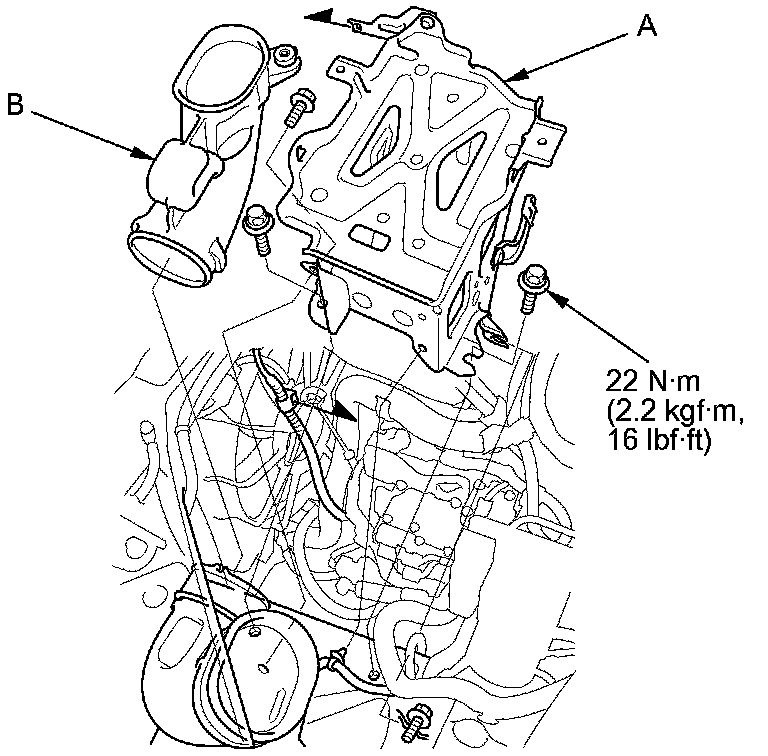

4. Remove the battery base (A) and the intake air duct (B).





5. Remove the front bumper Front Bumper.

6. Remove the left front inner fender Front Inner Fender Replacement.

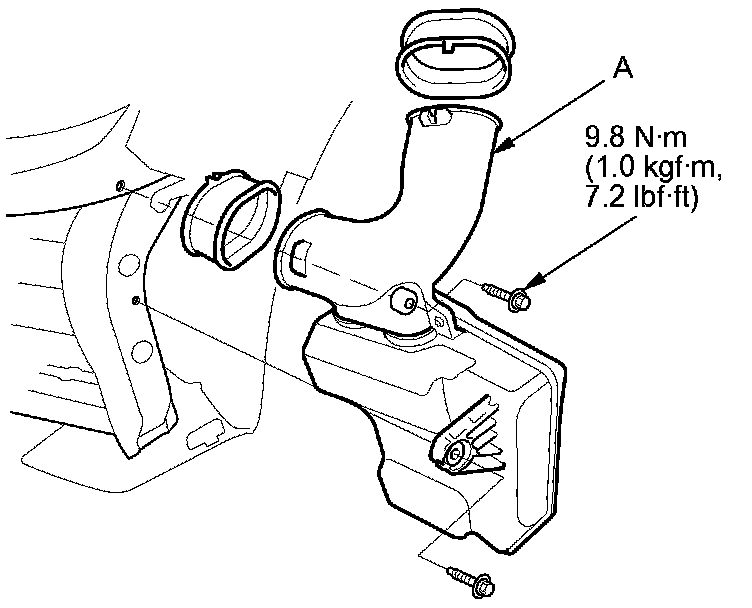

7. Remove the intake air resonator (A).





8. Install the parts in the reverse order of removal.

9. Do the battery installation procedure Removal and Replacement.
