Side Airbag Replacement

Side Airbag Replacement

NOTE: If replacing the side airbag after deployment, refer to Component Replacement/Inspection After Deployment Service and Repair for a complete list of other parts that must also be replaced.

Removal

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

2. Remove the seat assembly Front Seat Removal/Installation.

3. Remove the seat-back cover/pad Front Seat-back Cover Replacement.

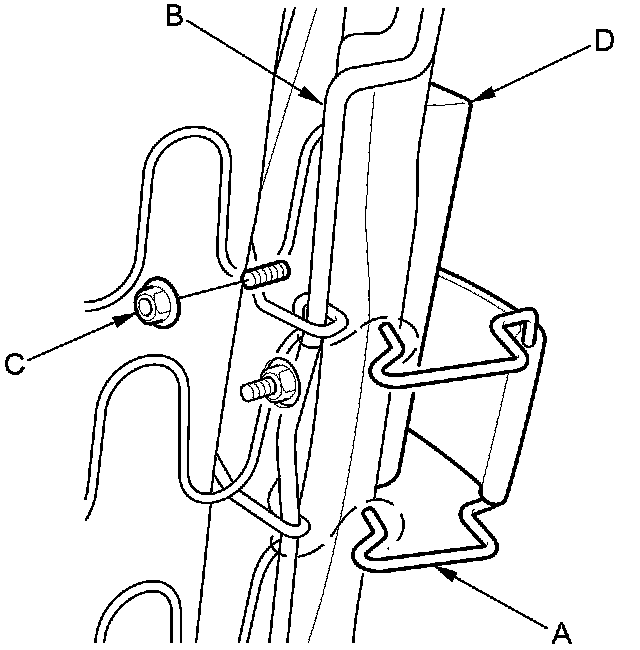

4. Release the airbag attachment wire B (A) from the seat-back frame (B).





5. Remove the mounting nut (C) and the side airbag (D).

Installation

NOTE:

- If the side airbag lid is secured by a tape, remove the tape.
- Do not open the lid of the side airbag cover.
- Use a new mounting nut tightened to the specified torque.
- If you are replace a deployed airbag, replace the attachment wire A and B.
- Make sure that the seat-back cover is installed properly. Improper installation may prevent proper deployment.
- Be sure to install the harness wires so that they are not pinched or interfering with other parts.
- Make sure the airbag attachment wires are installed properly to the seat-back frame.

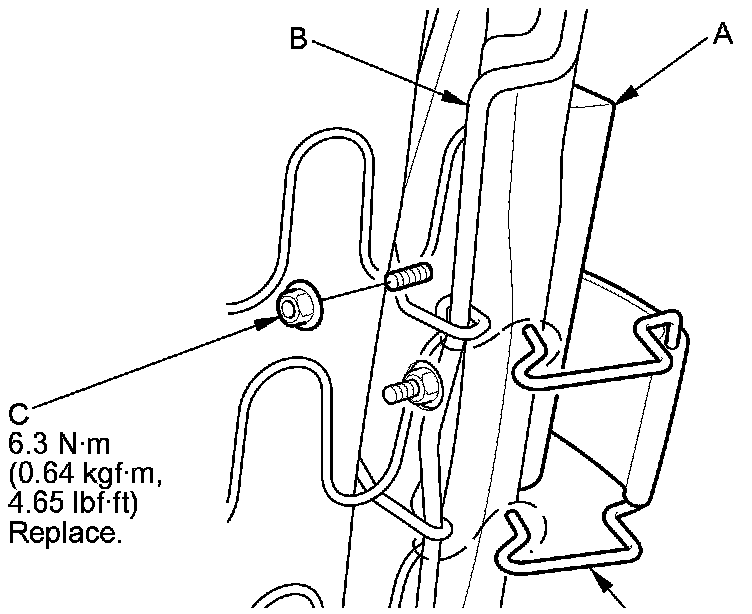

1. Place the side airbag (A) on the seat-back frame (B). Tighten the side airbag mounting nuts (C).





2. Install the airbag attachment wire B (D) in the seat-back frame.

3. Install the seat-back cover/pad in the reverse order of removal Front Seat-back Cover Replacement.

4. Install the seat assembly Front Seat Removal/Installation.

5. Do the battery terminal reconnection procedure Procedures.

6. Move the front seat and the seat-back through their full ranges of movement, making sure the harness wires are not pinched or interfering with other parts.

7. Clear any DTCs Reading and Clearing Diagnostic Trouble Codes.

8. After installing the side airbag, confirm proper system operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
