Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

1. Remove the dashboard center panel Dashboard Center Panel Removal/Installation.

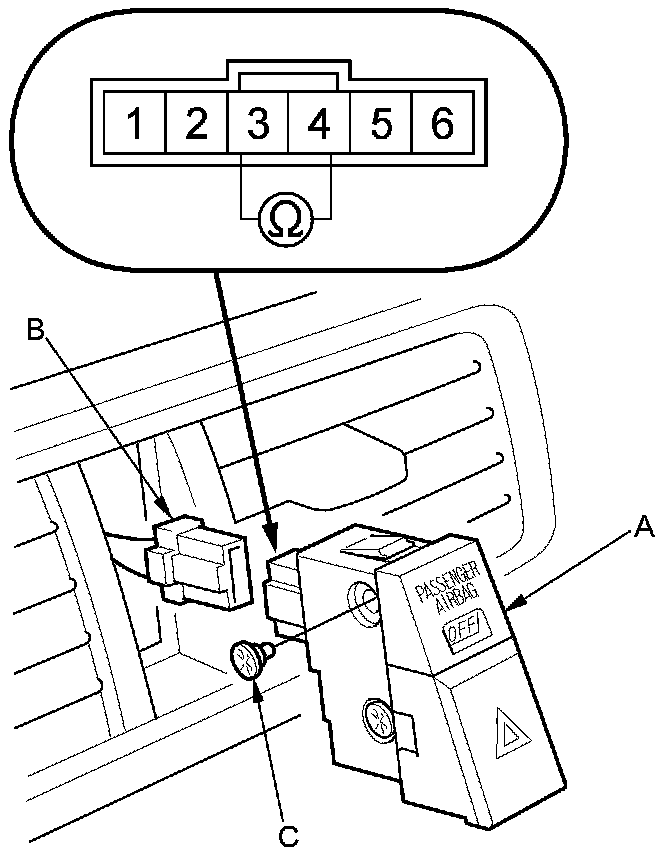

2. Push out the passenger's airbag cutoff indicator (A) from behind the upper panel.





3. Disconnect the 6P connector (B) from the passenger's airbag cutoff indicator.

4. Check for continuity between indicator terminals No. 3 and No. 4. If there is no continuity, replace the bulb (C).

5. Install the parts in the reverse order of removal.
