Second Row Seat Belt Replacement

Second Row Seat Belt Replacement

Second Row Seat Belt

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.
- Check the second row seat belts for damage Testing and Inspection, and replace them if necessary.

1. Slide the second row seat forward fully.

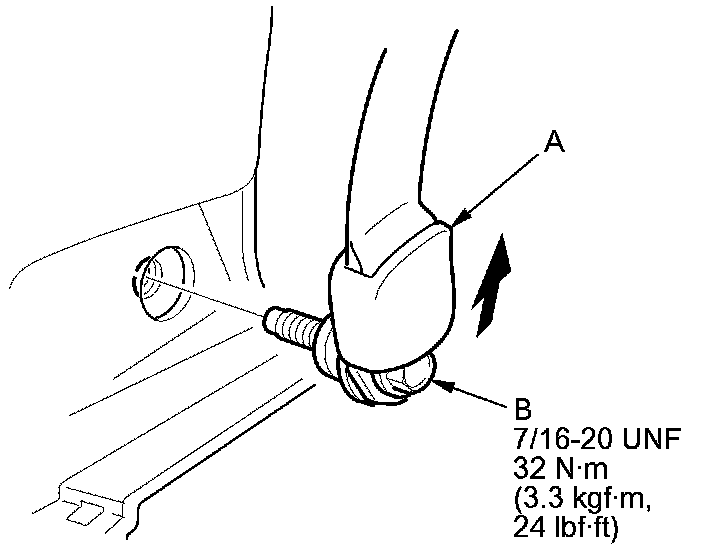

2. Pull up the lower anchor cover (A), then remove the lower anchor bolt (B).





3. Remove the rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

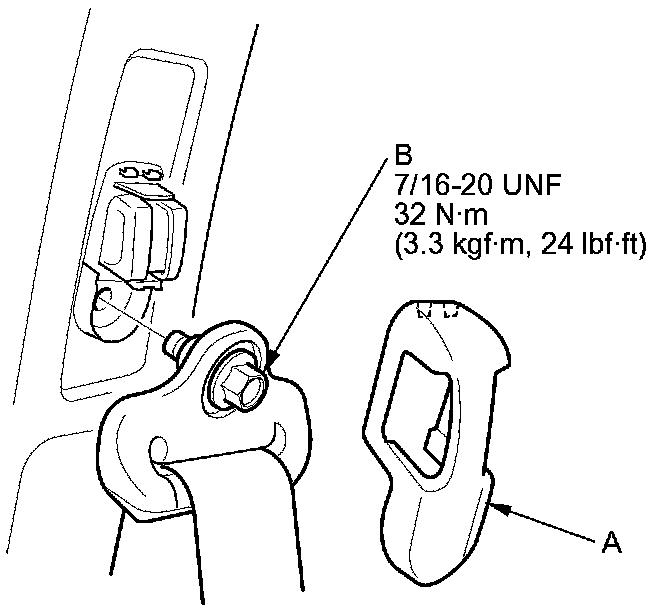

4. Remove the upper anchor cover (A), then remove the upper anchor bolt (B).

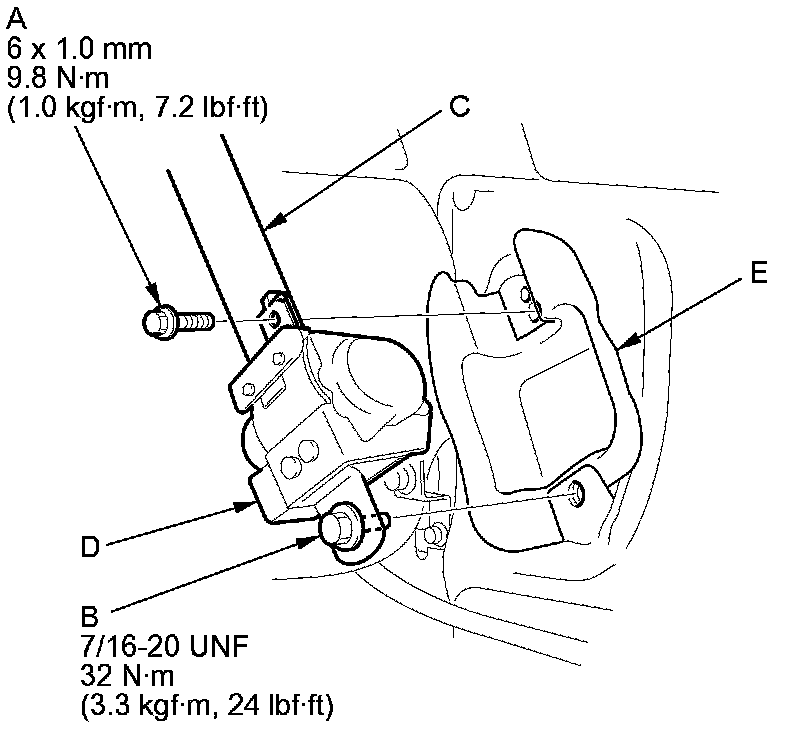

5. Remove the upper retractor mounting bolt (A) and the lower retractor bolt (B), then remove the second row seat belt (C) and the retractor (D).





6. If necessary, remove the second row seat belt protector (E).

7. Remove the C-pillar upper trim Interior Trim Removal/Installation - Pillar Areas.

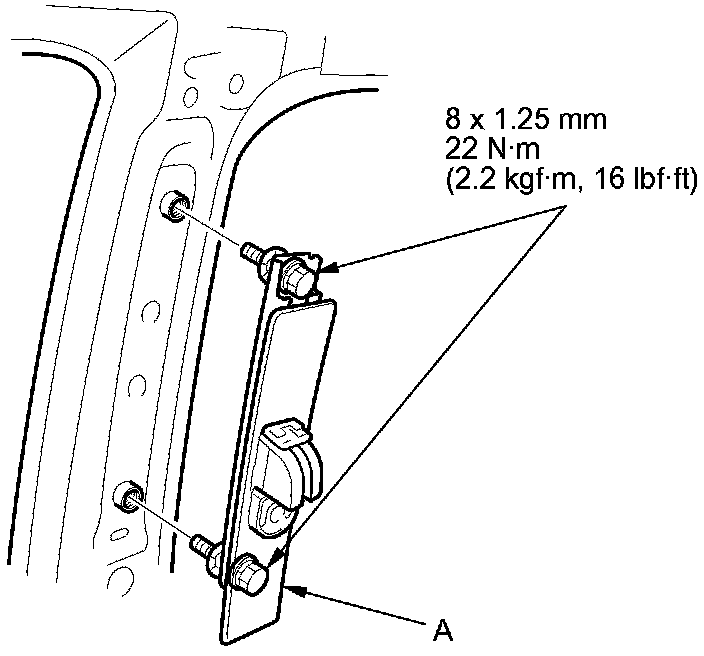

8. Remove the shoulder anchor adjuster (A).






9. Install the seat belt in the reverse order of removal, and note these items:

- Check that the retractor locking mechanism functions Testing and Inspection.
- Assemble the washers, the collar, and the bushing on the upper and lower anchor bolts as shown.
- Apply medium strength liquid thread lock to the upper anchor bolt before reinstallation.
- Before installing the anchor bolts, make sure there are no twists or kinks in the second row seat belt.

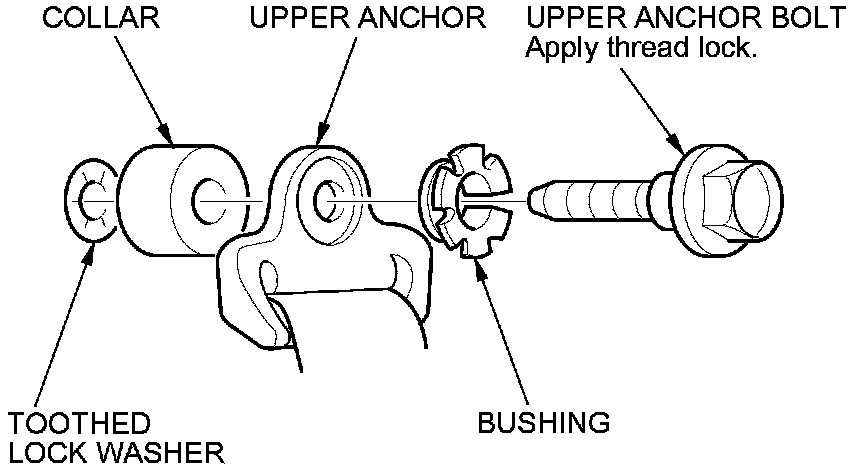

Upper anchor bolt installation

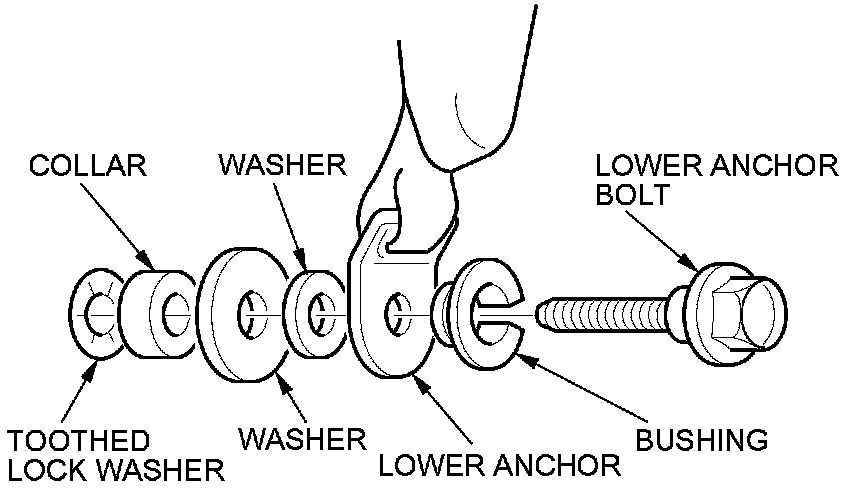

Lower anchor bolt installation






Second Row Seat Belt Buckle

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

1. Pull back the seat cushion cover as necessary Front Seat Cushion Cover Replacement.

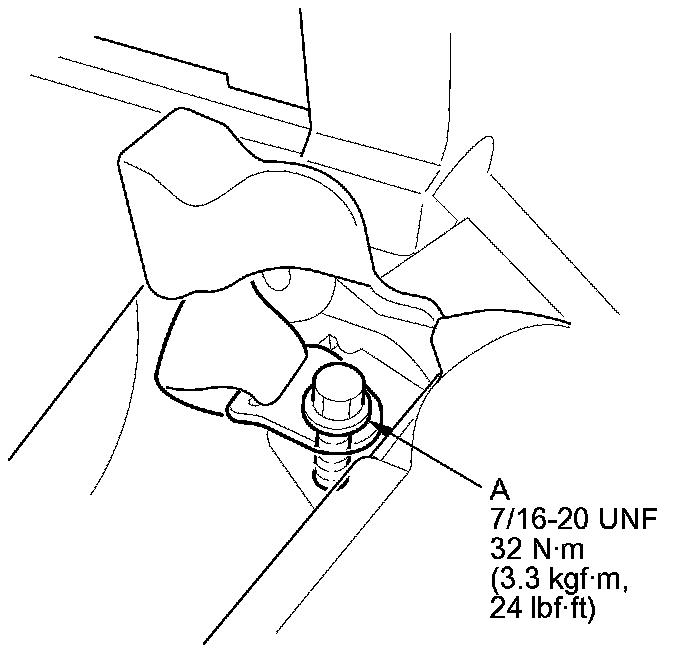

2. Remove the anchor bolt (A).

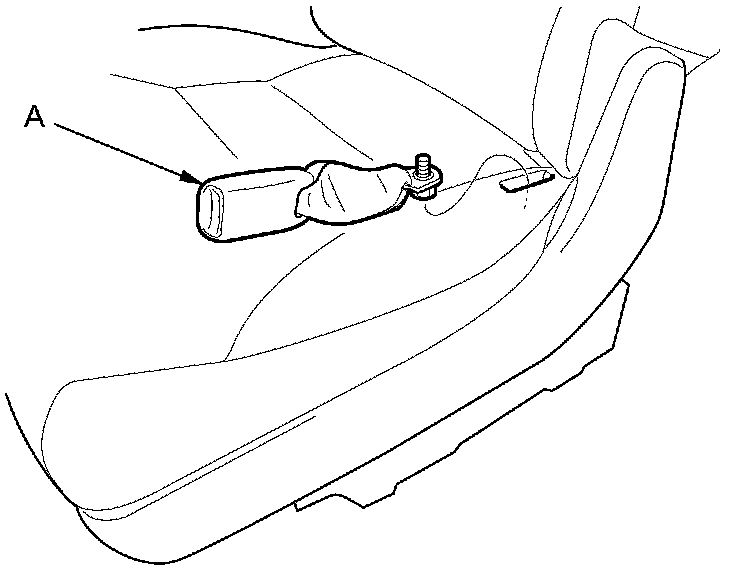

3. Remove the seat belt buckle (A).






4. Install the buckle in the reverse order of removal, and note these items:

- Assemble the washer on the anchor bolt as shown.
- Apply medium strength liquid thread lock to the anchor bolt before reinstallation.

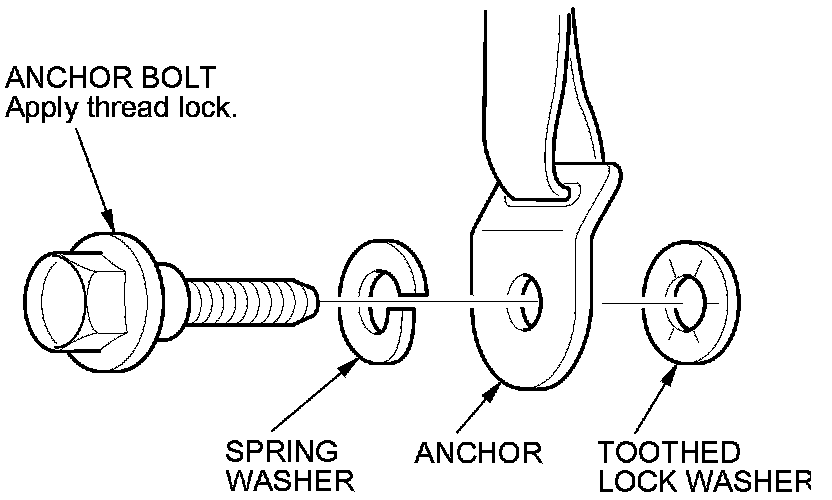

Anchor bolt installation






Center Second Row Seat Belt

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear the headliner.

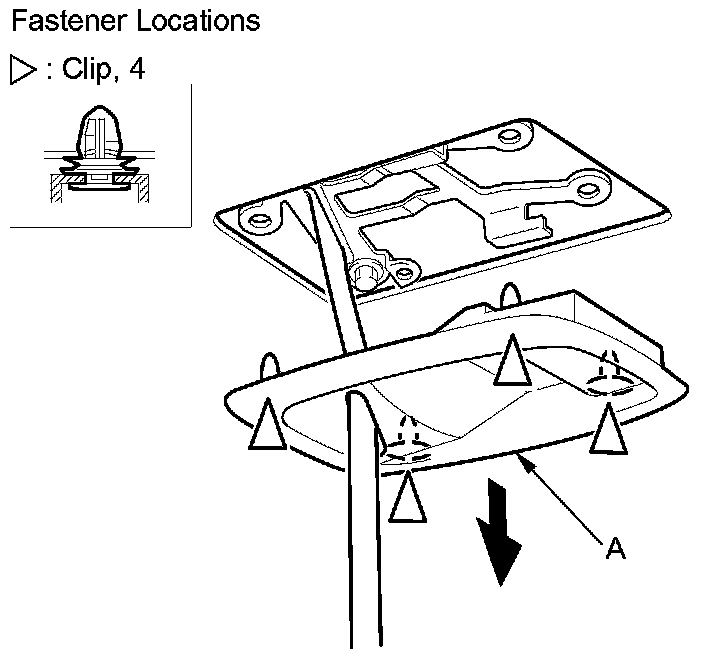

1. Detach the clips and remove the seat belt cover (A).






2. Remove the headliner Service and Repair.

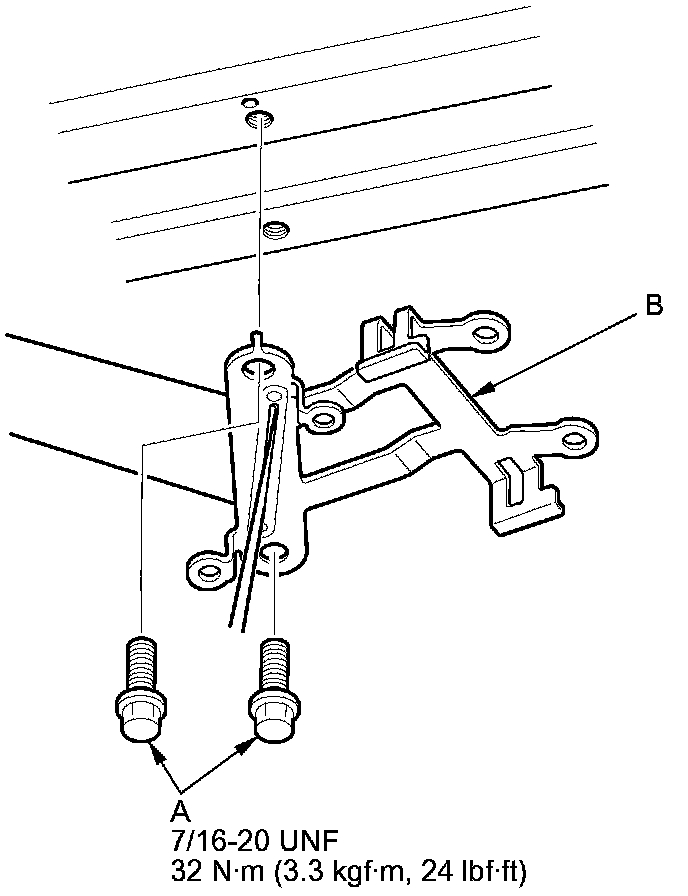

3. Remove the upper anchor bolts (A), then remove the upper anchor (B).

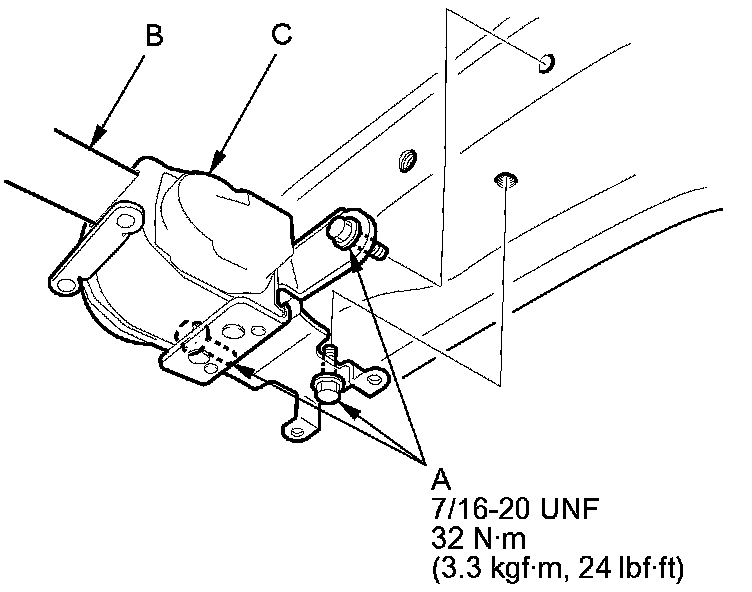

4. Remove the retractor bolts (A), then remove the center second row seat belt (B) and the retractor (C).





5. Install the seat belt in the reverse order of removal, and note these items:

- Check that the retractor locking mechanism functions Testing and Inspection.
- Before installing the upper anchor bolt, make sure there are no twists or kinks in the seat belt.
- Apply medium strength liquid thread lock to the upper anchor bolts before reinstallation.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.

Center Second Row Seat Belt Buckle

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

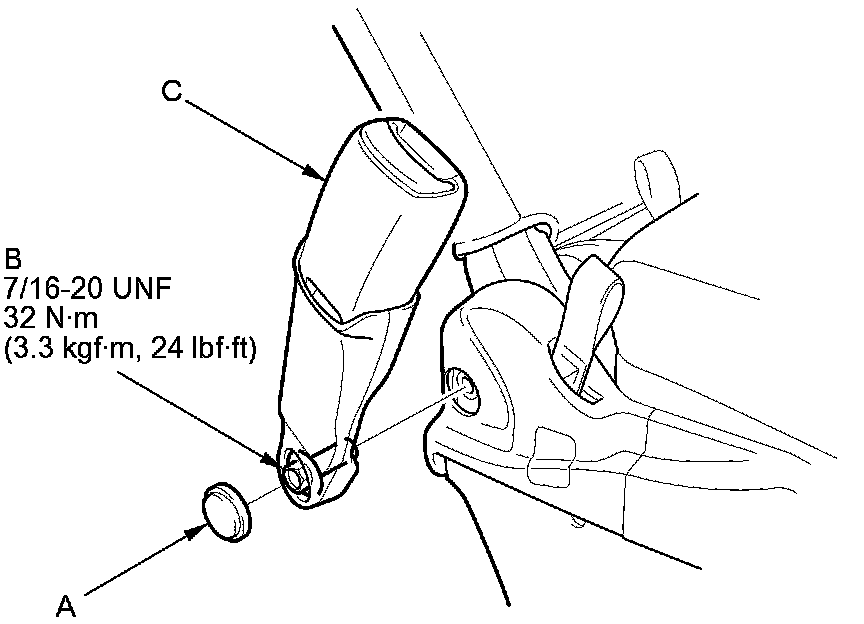

1. Pry off the cap (A) and remove the center anchor bolt (B), then remove the seat belt buckle (C).






2. Install the buckle in the reverse order of removal, and note these items:

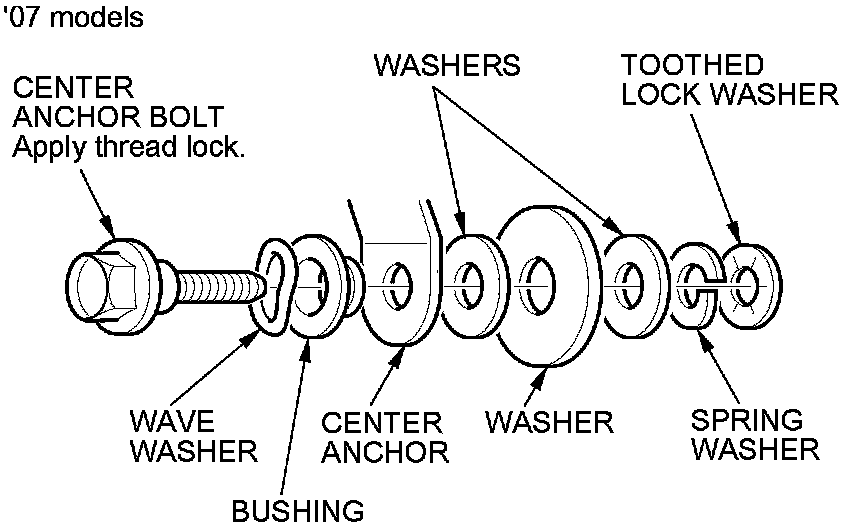

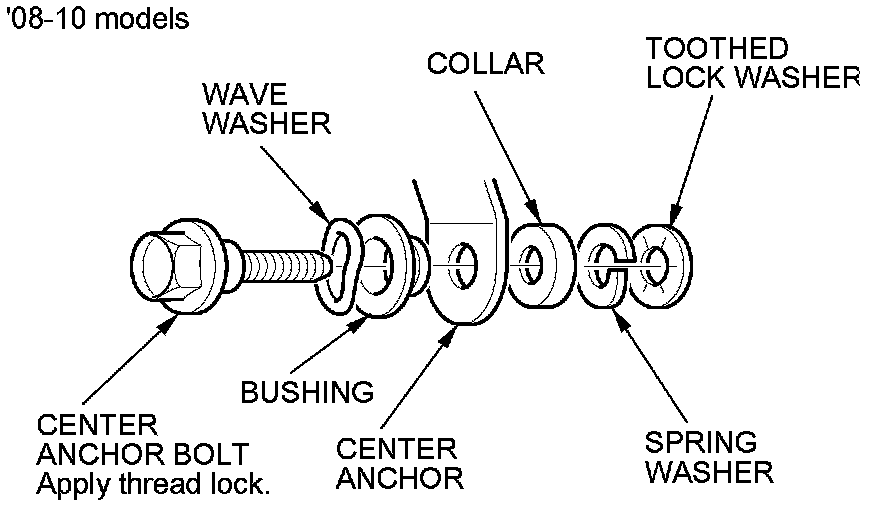

- Assemble the washer and the bushing on the center anchor bolt as shown.
- Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.

Center anchor bolt installation










Center Second Row Seat Belt Detachable Anchor

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

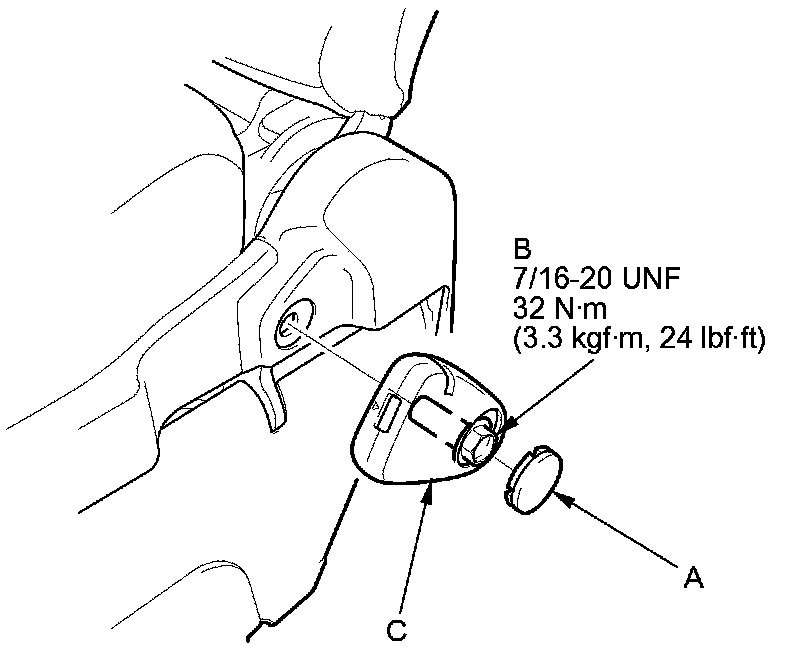

1. Pry off the cap (A) and remove the center anchor bolt (B), then remove the detachable anchor (C).






2. Install the detachable anchor in the reverse order of removal, and note these items:

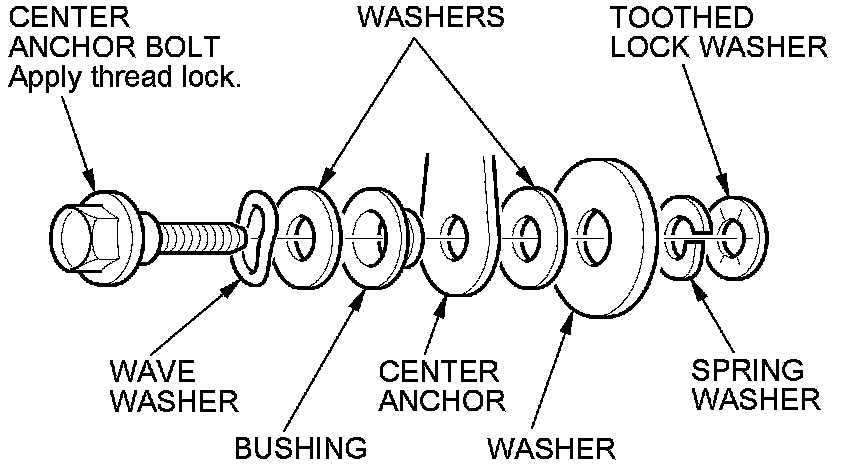

- Assemble the washers and the bushing on the center anchor bolt as shown.
- Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.

Center anchor bolt installation
