Power Sliding Door Switch: Service and Repair

Power Sliding Door Switch Test/Replacement

1. Remove the driver's dashboard outer panel Driver's Dashboard Outer Panel Removal/Installation.

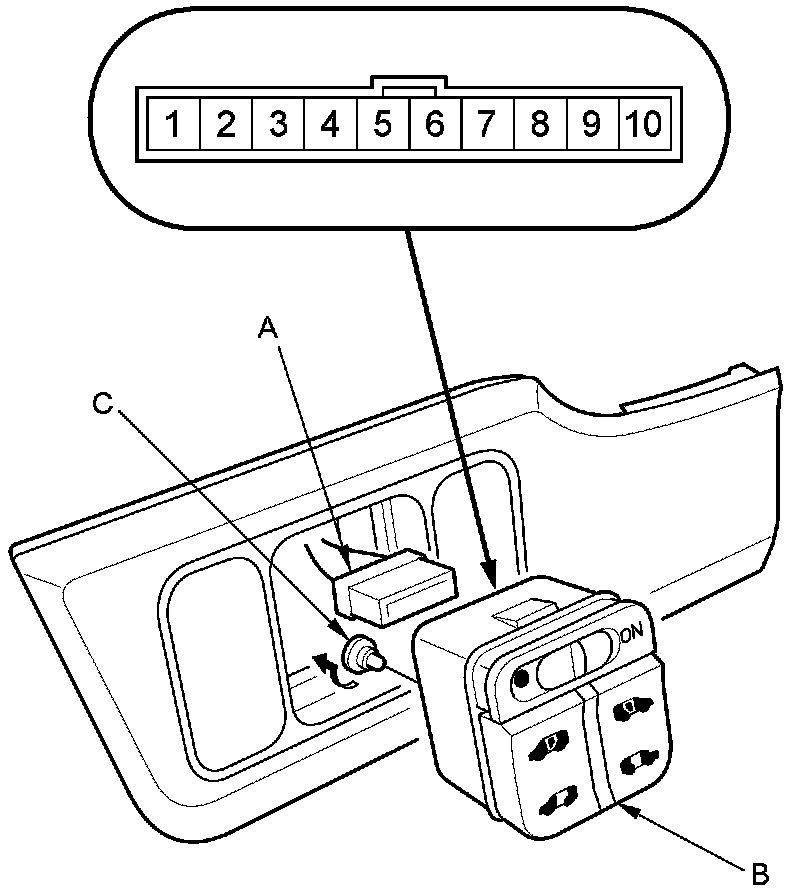

2. Disconnect the 10P connector (A) from the power sliding door switch (B).






3. Check for continuity between the terminals in each switch position according to the table.

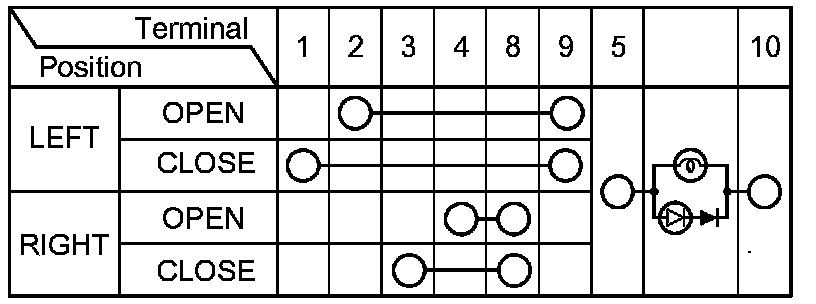

Open/Close Switch:

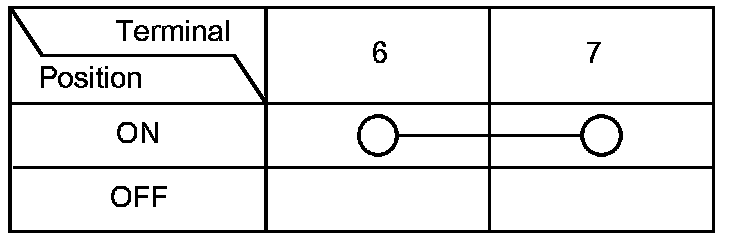

Main Switch:





4. If the continuity is not as specified, replace the bulbs (C) or the switch.
