Power Trunk / Liftgate Hazard Sensor: Service and Repair

Power Tailgate Pinch Sensor Replacement

1. Open the tailgate.

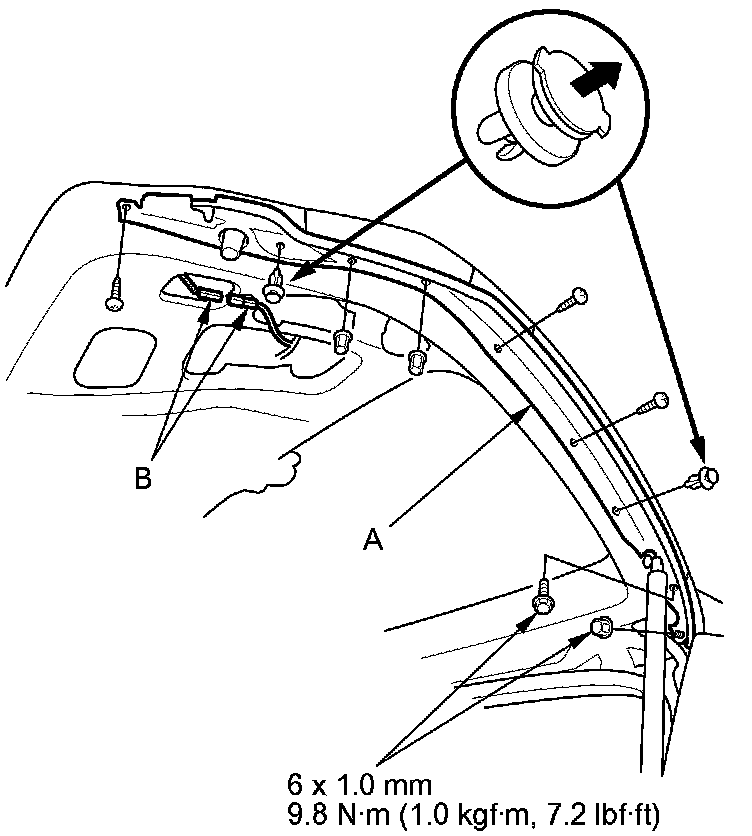

2. Remove the clips, screws and nuts from the pinch sensor (A).

NOTE: The illustration shows the right side pinch sensor, the left side is symmetrical.





3. Disconnect the 2P connector (B) from the pinch sensor.

4. Install in the reverse order of removal.
