Wiper Switch: Service and Repair

Wiper/Washer Switch Replacement

1. Remove the dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Remove the steering column covers Steering Column Removal/Installation.

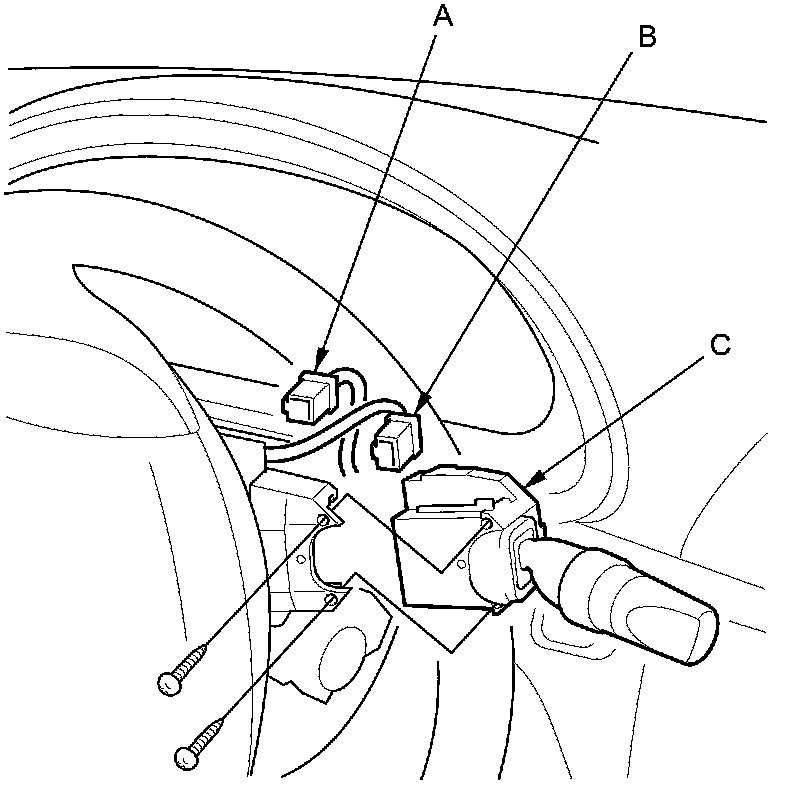

3. Disconnect the combination light switch 12P connector (A) and dashboard wire harness 8P connector (B) from the wiper/washer switch (C).





4. Remove the two screws, then slide out the wiper/washer switch.
