Hydraulic Power Steering Pump Overhaul

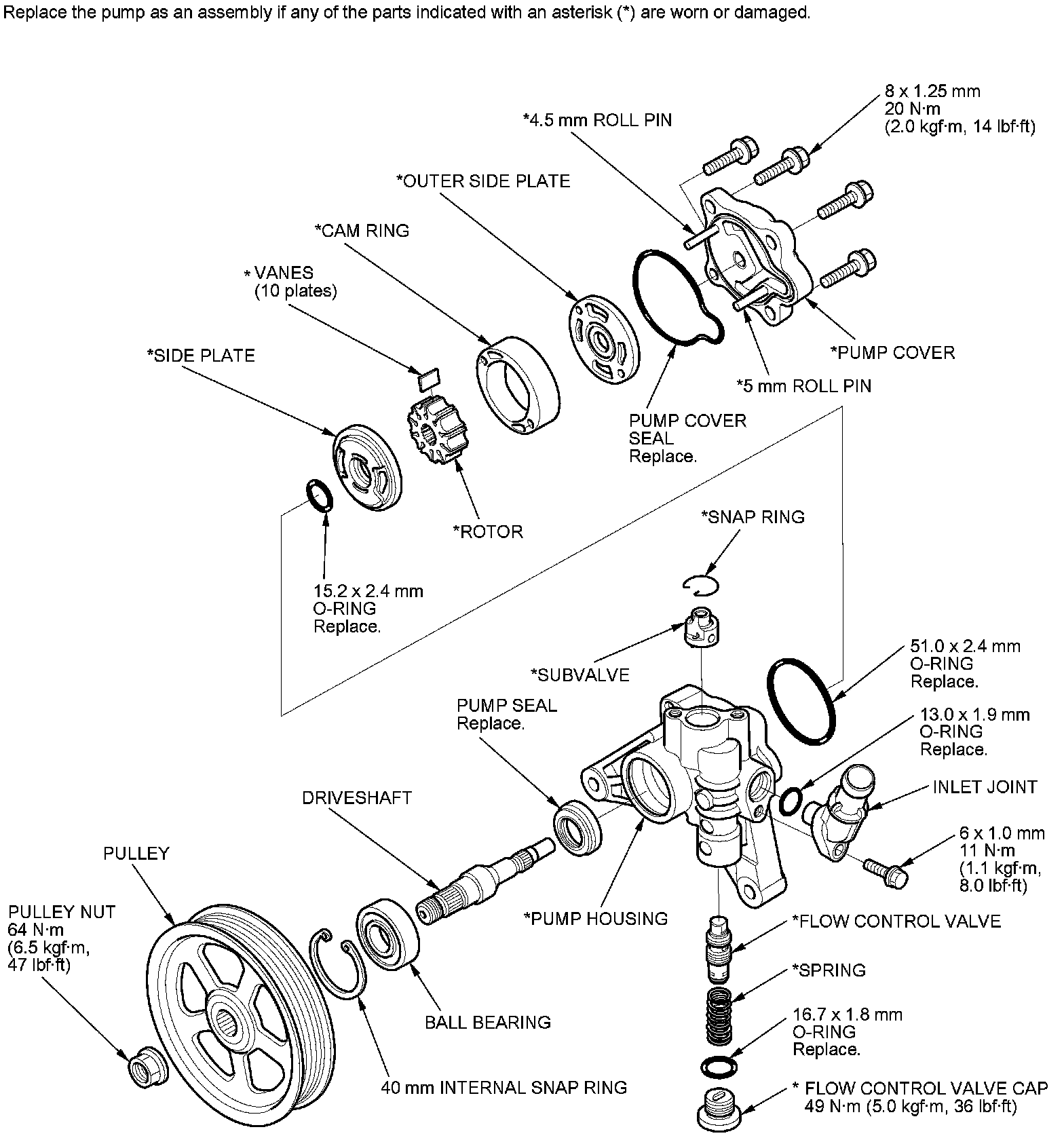

Exploded View





Special Tools Required

- Pulley Holder 07ZAB-S5A0100

Disassembly

NOTE: Refer to the Exploded View as needed during the following procedure.

1. Remove the power steering pump Removal and Replacement.

2. Drain the remaining fluid from the power steering pump Service and Repair.

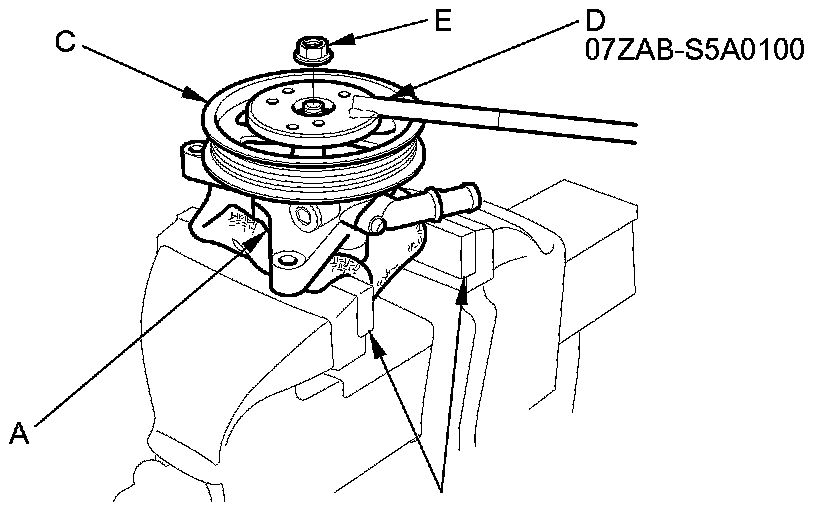

3. Hold the power steering pump (A) in a vise with soft jaws (B), then hold the pulley (C) with the pulley holder (D), and remove the pulley nut (E) and pulley. Be careful not to damage the pump housing with the jaws of a vise.





4. Remove the inlet joint and the O-ring.

5. Loosen the flow control valve cap with a hex wrench, and remove the cap, the O-ring, the spring, and the flow control valve.

6. Remove the pump cover and the pump cover seal.

7. Remove the outer side plate, the cam ring, the rotor, the vanes, the side plate, and the O-rings.

8. Remove the snap ring, then remove the subvalve from the pump housing.

9. Remove the 40 mm internal snap ring, then remove the driveshaft by tapping the shaft end with a soft face hammer.

10. Remove the pump seal from the pump housing.

Inspection

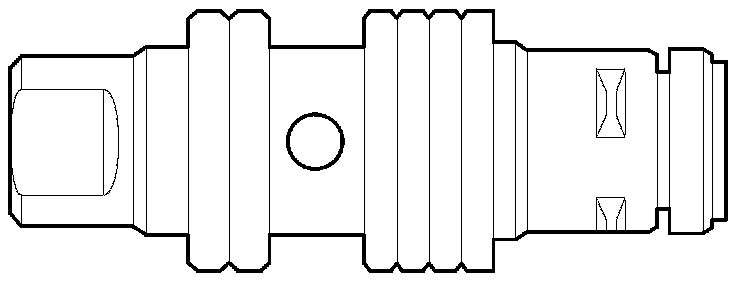

11. Check the flow control valve for wear, burrs, and other damage to the edges of the grooves in the valve.





12. Inspect the bore of the flow control valve on the pump housing for scratches and wear.

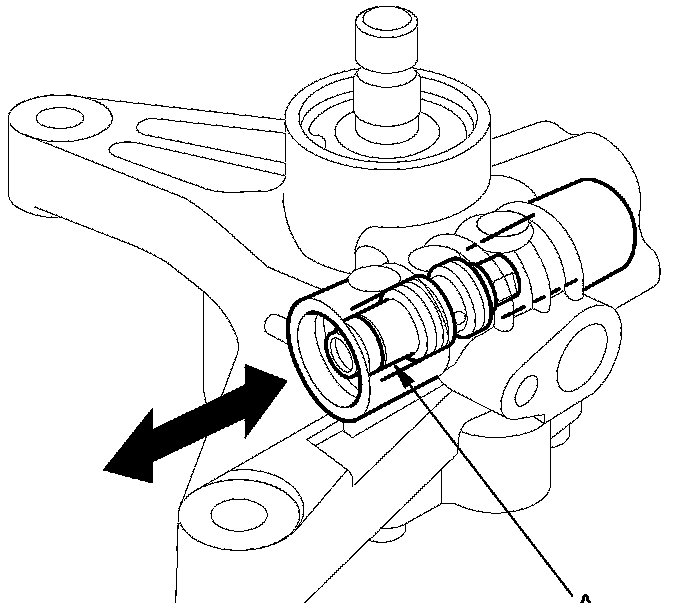

13. Slip the flow control valve back in the pump housing, and check that it moves in and out smoothly. If OK, go to step 14; if not, replace the pump as an assembly Removal and Replacement. The flow control valve (A) is not available separately.

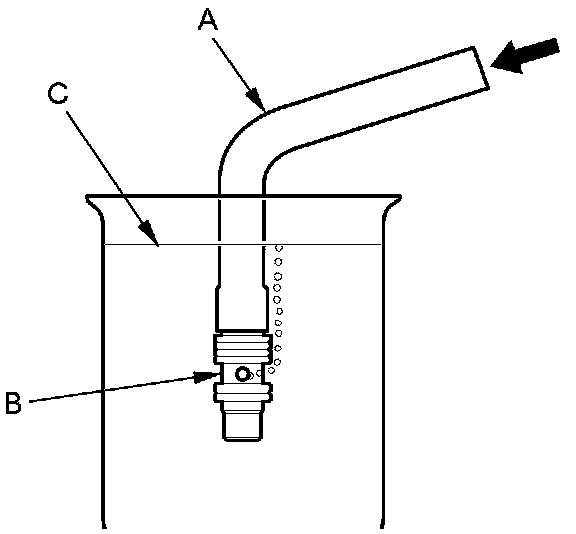

14. Attach a hose (A) to the end of the flow control valve (B) as shown. Then submerge the flow control valve in a container of power steering fluid (C), and apply compressed air in the hose.

- If air bubbles leak through the valve at less than 98 kPa (1.0 kgf/cm2, 14.2 psi), replace the pump as an assembly. The flow control valve is not available separately.
- If the flow control valve is OK, set it aside for reassembly later.

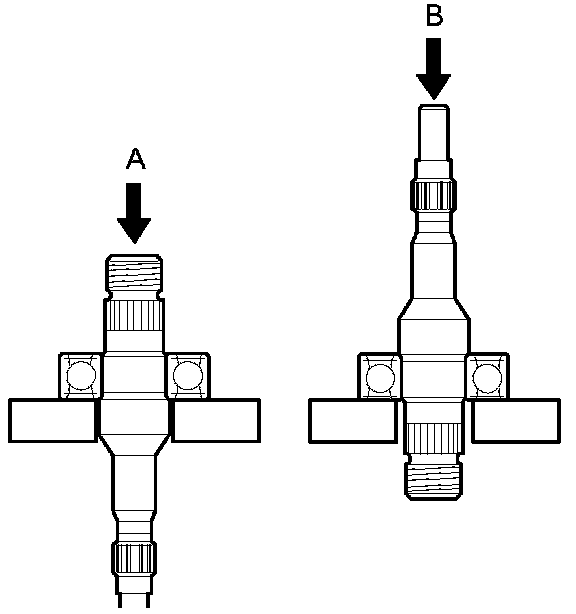

15. Inspect the ball bearing by rotating the outer race slowly. If you feel any play (axial or radial) or roughness remove the faulty ball bearing (A), and install a new one (B).





16. Inspect each part shown with an asterisk in the Exploded View. If any of them are worn or damaged, replace the pump as an assembly.

Reassembly

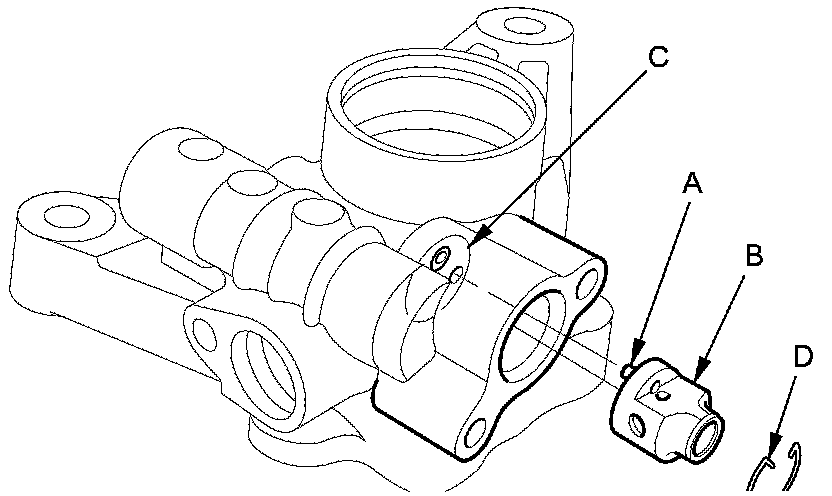

17. Align the pin (A) of the subvalve (B) with the oil passage (C) in the pump housing, and push the subvalve into place, then install the snap ring (D).

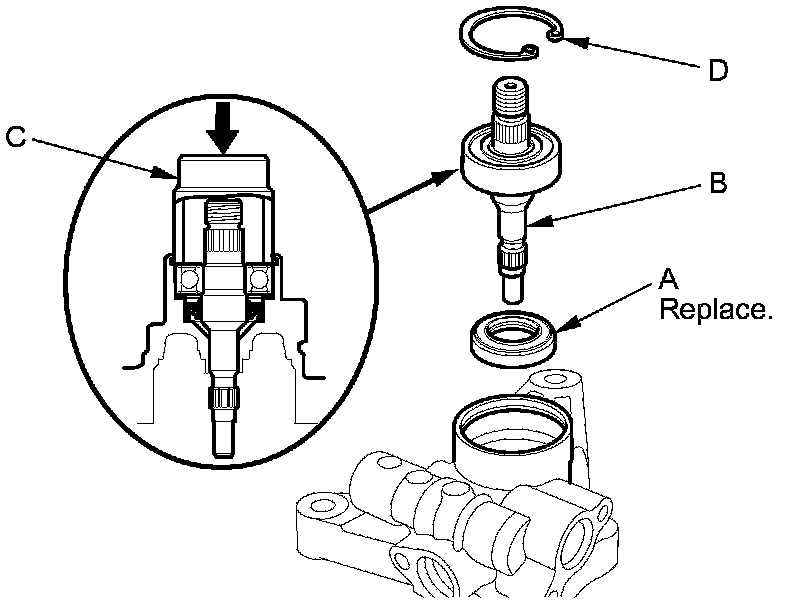

18. Install the new pump seal (A) (with its grooved side facing in) into the pump housing by hand first, then position the driveshaft (B) in the pump housing. Press the driveshaft and pump seal with the appropriate size socket (C) as shown.





19. Install the 40 mm snap ring (D) with its radiused edge facing out.

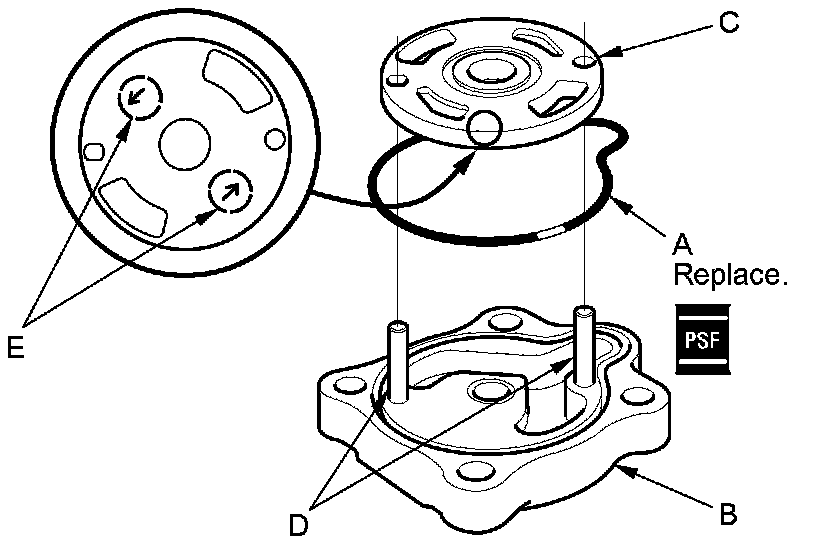

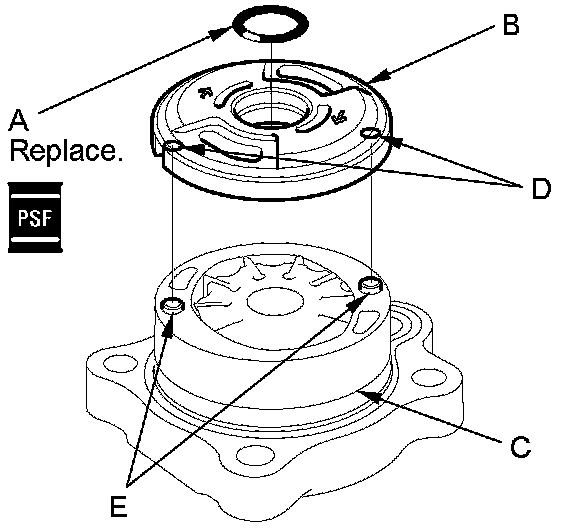

20. Coat the new pump cover seal (A) with power steering fluid, and install it into the groove in the pump cover (B).





21. Install the outer side plate (C) over the two roll pins (D) with its arrow marks stamped (E) facing down.

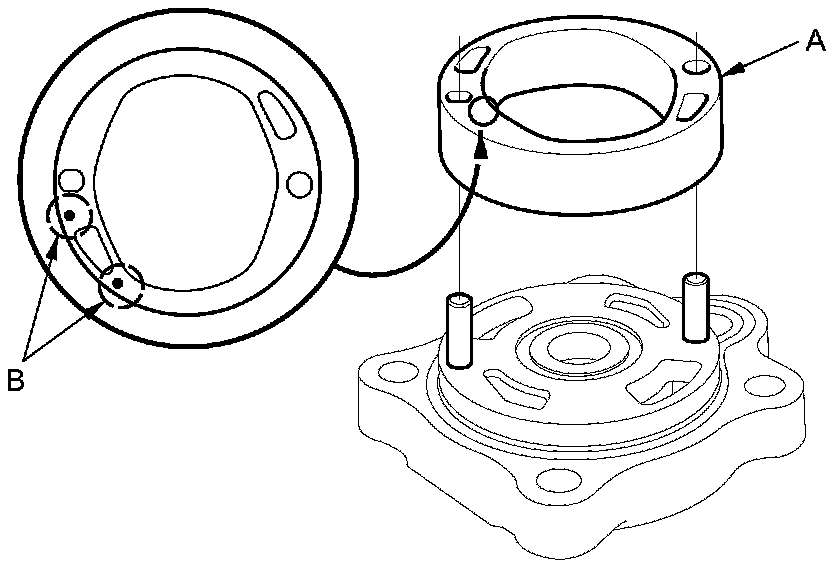

22. Set the cam ring (A) over the two roll pins with its "-" mark (B) facing down.






23. Install the rotor (A) to the pump cover (B).

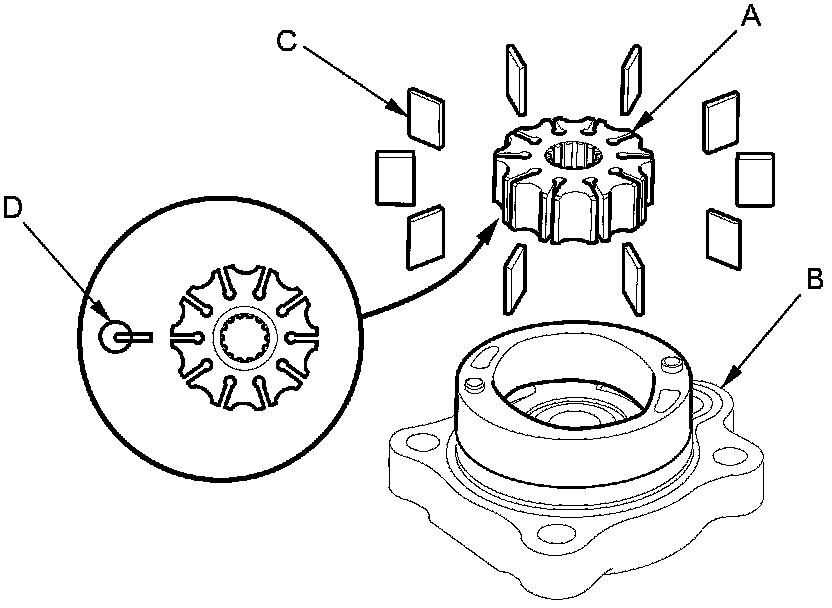

24. Set the 10 vanes (C) into the grooves in the rotor. Make sure that the round ends (D) of the vanes are in contact with the sliding surface of the cam ring.

25. Coat the new 15.2 mm O-ring (A) with power steering fluid, and install it into the groove in the side plate (B).





26. Install the side plate on the cam ring (C) by aligning the roll pin set holes (D) in the side plate with the roll pins (E).

27. Coat the new 51.0 mm O-ring (A) with power steering fluid, and position it in the bottom of the pump housing.

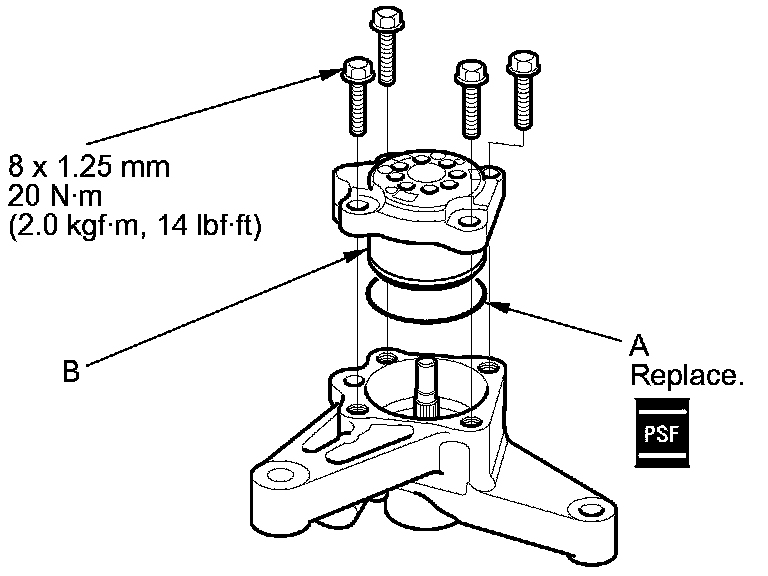

28. Install the pump cover assembly (B) in the pump housing. Tighten the bolts to the specified torque alternating in two or more steps.

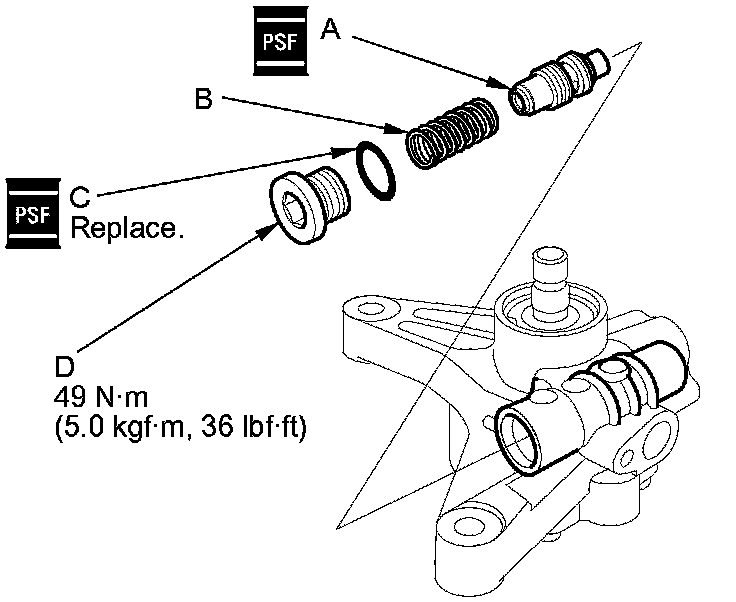

29. Coat the flow control valve (A) with power steering fluid, then install it and the spring (B) in the pump housing.





30. Coat the new 16.7 mm O-ring (C) with power steering fluid, and install it on the flow control valve cap (D), then install the cap on the pump housing. Tighten it to the specified torque.

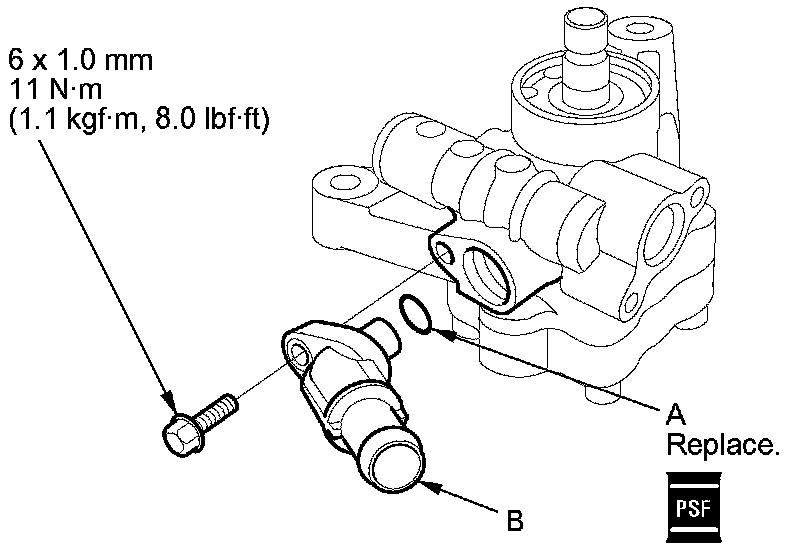

31. Coat the new 13.0 mm O-ring (A) with power steering fluid, and install it on the inlet joint (B). Install the inlet joint on the pump housing.






32. Install the pulley (A), then loosely install the pulley nut (B). Hold the steering pump in a vise with soft jaws. Be careful not to damage the pump housing with the jaws of the vise.





33. Hold the pulley with the pulley holder, and tighten the pulley nut to the specified torque.

34. Check that the pump turns smoothly by turning the pulley by hand. If it turns hard, loosen the four flange bolts on the pump cover, then retighten them in the same manner as in step 28. Retest. If the power steering pump is still hard to turn, replace the power steering pump.

35. Install the power steering pump Removal and Replacement.
