Steering Column Lock: Testing and Inspection

Key Interlock Solenoid Test

NOTE: SRS components are located in this area. Review the SRS component locations Locations, precautions, and procedures Service and Repair before doing repair or servicing.

1. Remove the driver's dashboard lower cover and lower steering column cover.

2. Disconnect the steering lock assembly connector.

3. Turn the ignition switch to ACCESSORY (I).

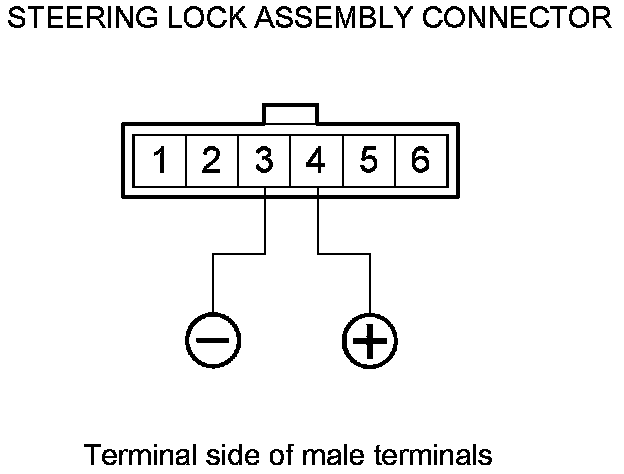

4. Connect positive battery power to steering lock assembly connector terminal No. 4, and ground terminal No. 3. Make sure that the ignition key cannot be turned to LOCK (0). Disconnect battery power, and make sure that the key can be turned to LOCK (0) position and removed from the cylinder.





5. If the key interlock solenoid does not work correctly, replace the ignition key cylinder/steering lock assembly.

6. Install the driver's dashboard lower cover and the lower steering column cover.
