Steering Gear Mount: Service and Repair

Steering Gearbox Mount Cushion Replacement

1. Remove the steering gearbox Steering Gearbox Removal.

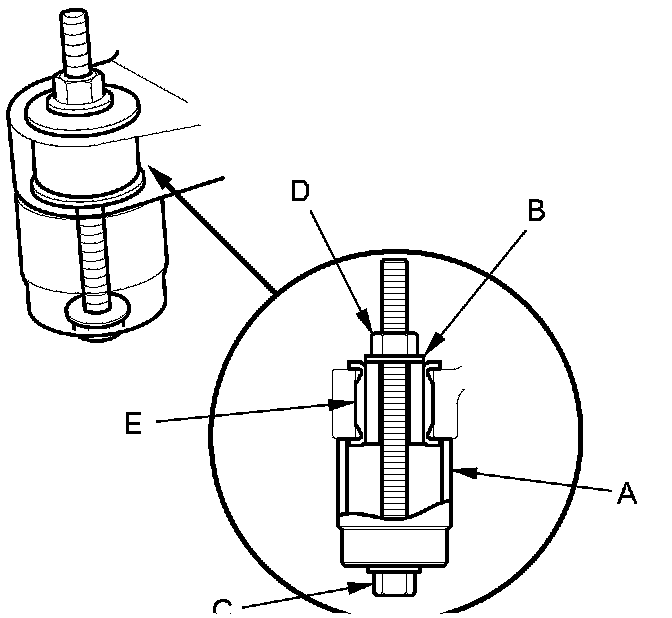

2. Position a 34 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown.





3. Hold the flange bolt with a wrench, and tighten the nut with a wrench. Remove the gearbox mount cushion (E).

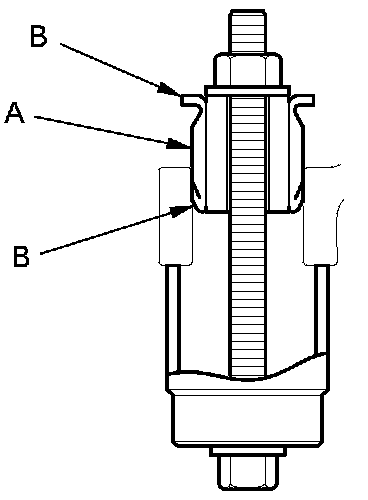

4. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place it on the gearbox mounting cushion hole.





5. Position a 34 mm socket on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.

6. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (B) contact the steering gearbox flange surface.

7. Install the steering gearbox Steering Gearbox Installation.
